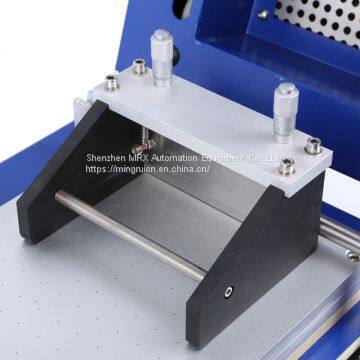

Battery cell lab equipment ( BATTERY ELECTRODE COATER WITH DRYER) :
It's a touch-screen film coater which widely used in all kinds of high- temperature film coating research,like ceramic films, crystal films, battery material films, and special namo-films, and can adapt to the technology development of high temperature film coating in future.
Features :
1. Touch-screen ,easy operation .
2. Temperature controlled heating system is digital displayed, max working temperature is 200℃.
3. Timer is digital displayed; the heating time can be set freely.
4. Coating speed can be regulated at a range of 0~200mm/s.
5. Vacuum aluminum plate used to place and take off the substrate quickly.
6. Stroke can be regulated by touch screen at a range of 10~250mm.
7. Coating thickness can be regulated, the accuracy is 0.01mm.
8. Small dimension saves space.
9. Nice appearance, solid geometry design makes well- formed shape.
Application :
Battery lab
Battery research
Lithium ion battery lab
Material research
Trial-production
| Item Name |
Battery cell electrode coater with dryer |
| Coating Speed |
0~200mm/s |
| Max Stroke |
250mm |
| Vacuum plate |
Equipped with vacuum aluminum plate |
| Coating thickness |
0.01~3.5mm adjustable |
Heating temperature |
Room temperature~200℃ Digital displayed thermostat, the accuracy is±1℃ |
| Power supply |
220V/50Hz |
| Dimension |
L800mm×W310mm×H330mm |
| Dimension of vacuum plate |
L410mm×W200mm×H30mm |
| Standard Configurations |
Applicator,horizontal rod , feeding box |
