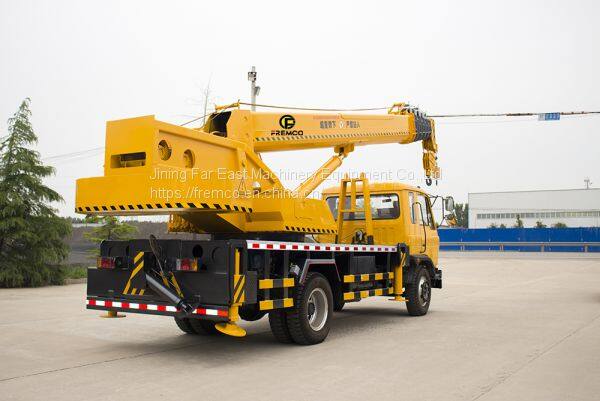

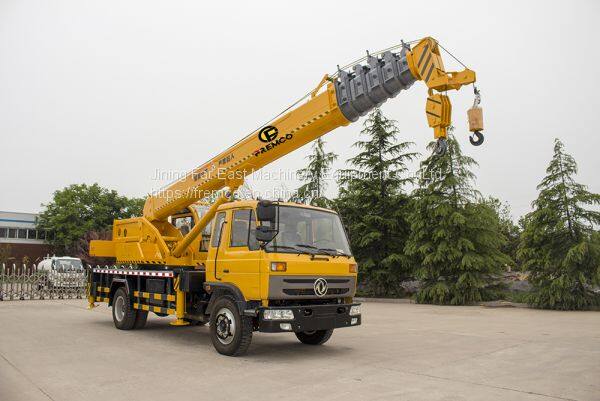

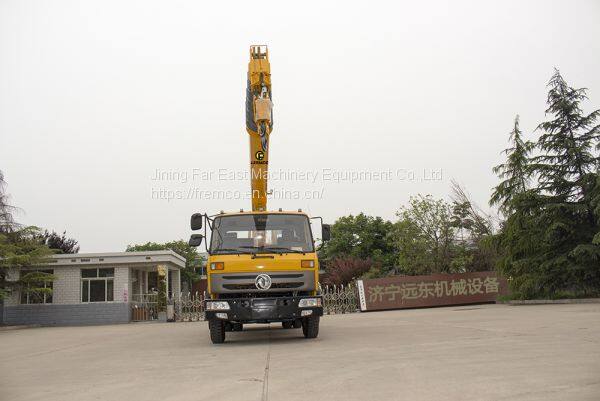

2 Winch Dongfeng Telescopic Boom Jib Crane
Main Features1. Telescopic truck mounted crane equip with wide lifting range, stabilized working state, quick moving speed and comfortable working cabin which can work in variety of environments.
2. Optimized structure components increase the lifting performance at the middle-long working radius significantly.
3. Unique design of Driver's cab and operator's cab make the operator safer and more comfortable.
4. Reliable and power chassis configuration makes drive system more powerful and greater control.
5.We have auatomatic hydraulic lifting control system and interlocking system.
6.Cooperate with Chinese famous truck chassis——T-king and Dongfeng，selfmade has long term quality guarantee。
working parameters |
max lifting capacity |
12 ton |
16 ton |
Max lifting moment |
380KN.m |
400 KN.m |
|
max lifting height |
33m |
33m |
|
Turntable tail working radius |
2.4m |
2.4m |
|
working speed |
Driving state machine quality |
13.8 ton |
16.5 ton |
single rope max speed |
90m/min |
90m/min |
|
Boom lifting time |
72s |
72s |
|
Boom out time |
98s |
98s |
|
swing speed |
2.6r/min |
2.6r/min |
|
|
Driving parameters |
max slope |
30% |
30% |
Approach / departure angle |
21/11 degree |
21/11 degree |
|
|
min turning radius |
15m |
15m |
|
|
max travel speed |
≤90km/h |
≤90km/h |
|
|
Size parameters |
Dimensions |
10.1x2.45x3.39m |
10.5x2.5x3.32m |
|
Outrigger span |
5.2x6.5m |
5.2x6.95m |
|
Basic arm |
7.95m |
8.8m |
|
|
Full extension arm |
30.5m |
33m |
|
|
Chassis parameters |
Brand |
||
Power |
95.6kw |
102.9kw |
|
