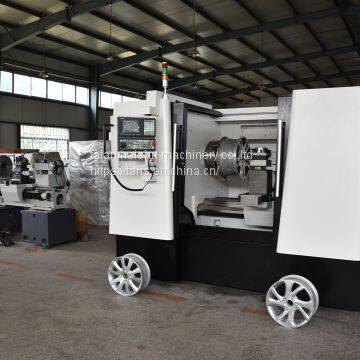

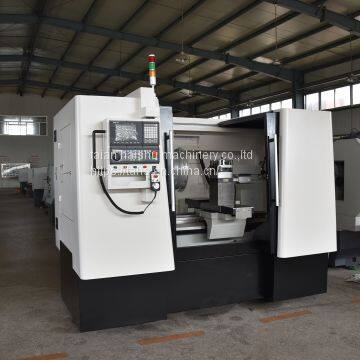

Help CenterCK6197W AlLoy Wheel Rim Repair Efficient Machine Tool Tool Magazine
Related Products
-
HS-CK6180W Hot Sale Wheel Rim Repair CNC Lathe Machine With Diamond CuttingUS$ 10000 - 20000MOQ: 1 Set -
Alloy Wheel Vertical Lathe CKL-35 Special for CarUS$ 10000 - 20000MOQ: 1 Set
-
Vertical Wheel Repair Cnc Lathe CKL-35 Special for CarUS$ 10000 - 20000MOQ: 1 Set
-
Simple Operation CK6180W Alloy Wheel Cnc LatheUS$ 10000 - 20000MOQ: 1 Set
-
Economical CK6160Q Small Wheel Rim Repair Cnc LatheUS$ 5000 - 10000MOQ: 1 Set

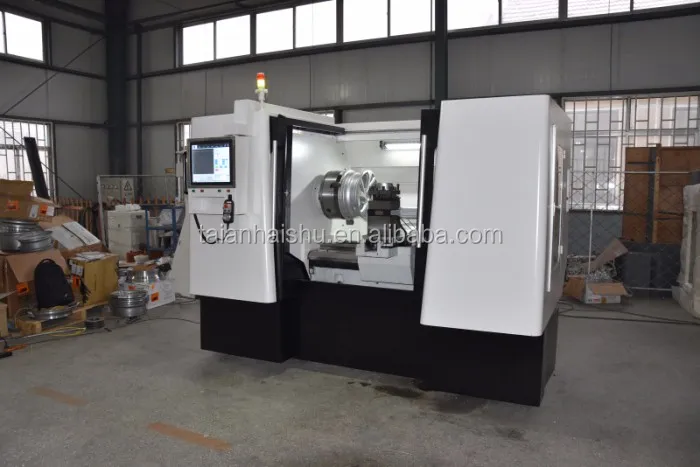

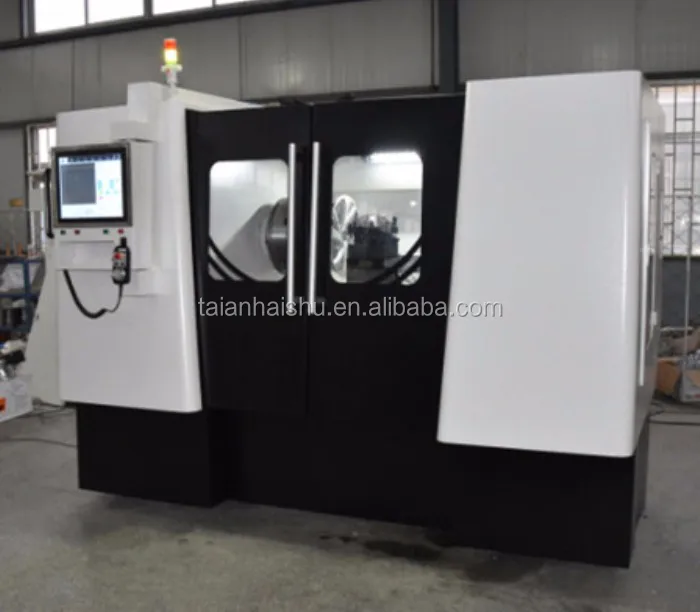

Simple operation CK6180W alloy wheel cnc lathe
Technical parameters
Project name | Unit | Technical paramaters |
Machining wheel diameter | Inch | 28” |
Max. workpiece length | mm | 750 |
Probe measuring direction | X,Z | |
Probe needle | mm | φ3 × 40, φ6 × 50, or optional |
Machning accuracy | IT6~IT7 | |
Surface roughness | um | Ra0.8~1.6 |
Main transmission form | Independent spindle; frequency conversion stepless | |
Range of spindle speed | rpm | 150~2000 |
Main motor power | kw | 11 |
Fast-moving feed | mm/min | X - axis:5000 Z - axis:8000 |
Repeat positioning accuracy | mm | X - axis:0.01 Z - axis:0.015 |
Standard accessories | 4 station electric tool | |
Repeat positioning accuracy(mm) | mm | 0.008 |
Section of turning tool(mm) | mm | 25×25 |
The size of the machine (L×W×H) | mm | 2685×1750×1980 |
Net weight of the machine(kg) | 3200 | |
"HAISHU" brand wheel lathe function and characteristics
Function
The whole or local surface of the hub of the wheel is finished and repaired.
The flange of the wheel is finished and repaired
The rim of the wheel is finished and repaired
With the "teaching" function: The operator uses the handwheel to control the tool, on the hub to find points. In the manual press the key to confirm, the system automatically remember the coordinates of the point, automatically form a curve, And machining automatically along the curve.
Feature
Laser scanning, fast measurement.
Measurement data and machining programs are automatically stored.
Software independent development,service professional, free upgrade;
Program optimization is manual and automatic.
Teaching function.
Touch screen operation, support multiple languages.
X / Z axis measurement, complete the wheel's face and circumference machining.
Measuring method: laser or probe (Optional).
High-grade sheet metalshell.
Wheel polished(Optional).
The machine can be customized according to customer requirements.
