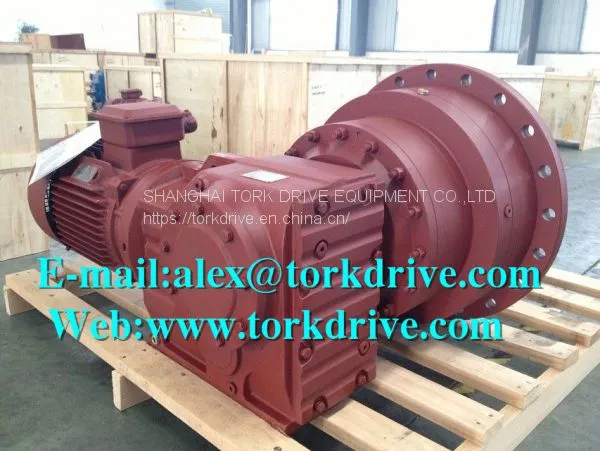

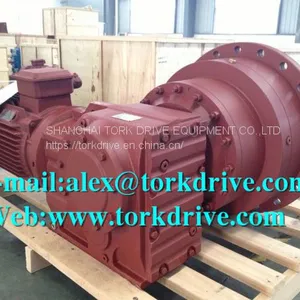

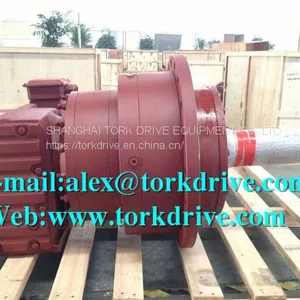

P Serives+K Serives Geared Motor Planetary Gearbox Flender Gearbox

Name: P Serives+K Serives Geared Motor Planetary Gearbox Flender Gearbox
Brand: TORK Drive
SKU: 158461106

US$ 1200 - 3500 MOQ: 1 Piece

Key Specifications

Brand Name:

TORK Drive

Place of Origin:

China

Model Number:

P2KF9

Shanghai Tork Drive Equipment Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

30 days

Brand Name TORK Drive

Place of Origin China

Model Number P2KF9

Rated Power 22KW

Output Speed 6rpm

Input Speed 1475rpm

Output Torque 35016N.m

Gearing Arrangement Planetary

P series planetary gear box uses several planet gears to transfer load, thus to actualize power

division and effective use of inner engagement. Planetary gear box is featured by compact structure, small volume,

lightweight, wide range of ratio, high driving efficiency, etc.

Torque Range: Up to 2600000Nm

Input Power Rating:0..4kW to 212934kW

Ratio:25 to 4000

Gear Unit Version:In-line,Right-angle

Configuration:Mounting solution: flange mounted, foot mounted, shaft mounted

Output shaft: solid with key, splined, hollow shaft with shrink disc, splined hollow

Optional Accessory:Foot,Torque arm.

Planetary geared motors overview:

Modular design realizes wariable conbinatin
Housing is made of cast iron,which improve its rigidity and anti-vibration
Sun and planet gears ar processed by cementite and hardening.Gears are processed by grinding,which improve the efficiency and lifetime of gear units.
Input mode:coaxial input,helical gear input,bevel helical gear input ,IEC flange input
Output mode:internal involute spline,hollow shaft with shrink disk,external involute spline,solid shaft with key-way.
Mounting mode:horizontal ,vertical,torque arm.
P series sizes 9-34,transmission stage:2,3,ratio:25-4000.Ratio can be larger in combination with R,K gearbox.
