Specifications
Flender gearbox1.Housing:Aluminium Alloy
2.Long service life,competitive price
3.NMRV25 to 90,Ratio:7.5 to 100
4.OEM

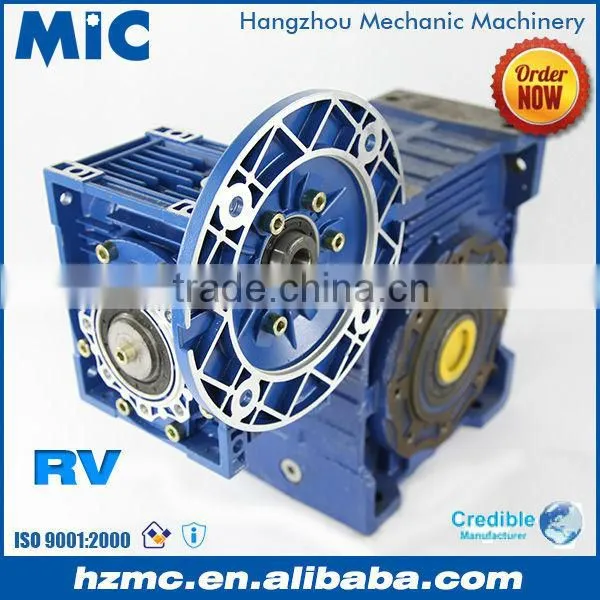

NMRV+NMRV Series Aluminium Worm Reduction Flender Gearbox
Specifiction:
| Type: | Worm Gear Speed Reducer | ||||||||
| Model: | NMRV025-090 | ||||||||
| Ratio: | 1:7.5,10,15,20,25,30,40,50,60,80,100 | ||||||||
| Color: | Blue/Silver Or On Customer Request | ||||||||

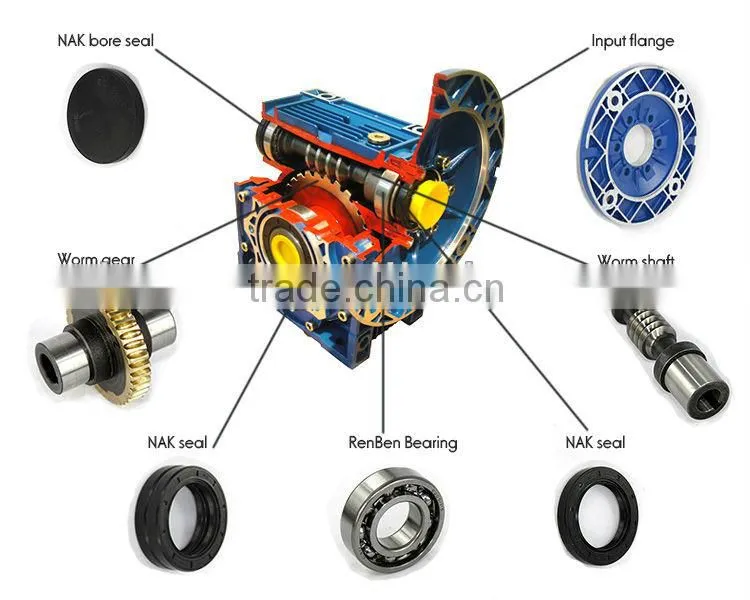

| Material: | Housing: Die-Cast Aluminum Alloy | ||||||||
| Worm Gear-Copper-10-3# | |||||||||
| Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC | |||||||||
| Shaft-chromium steel-45# | |||||||||
| Packing: | Carton and Wooden Case | ||||||||
| Bearing: | C&U Bearing | ||||||||
| Seal: | NAK SKF | ||||||||
| Warranty: | 1 Year | ||||||||
| Input Power: |
0.06KW,0.09KW,0.12KW,0.18KW,0.22KW,0.25KW,0.37KW,0.55KW, 0.75KW,1.1KW,1.5KW,2.2KW,4KW,5.5KW,7.5KW |
||||||||
| Usages: | Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing, Woodworking,Glass. |
||||||||

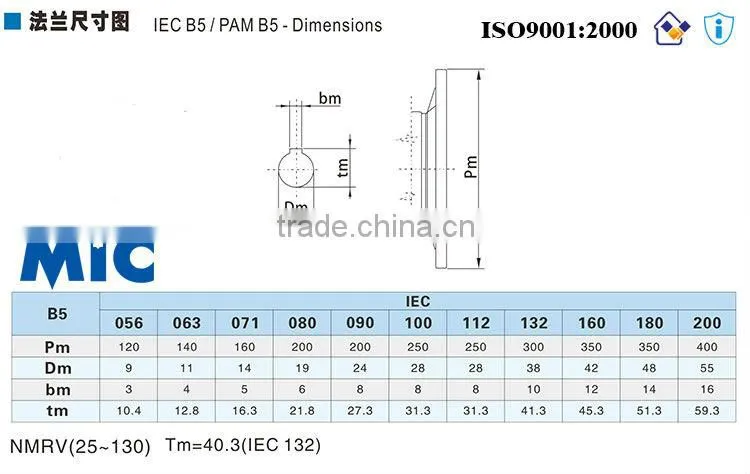

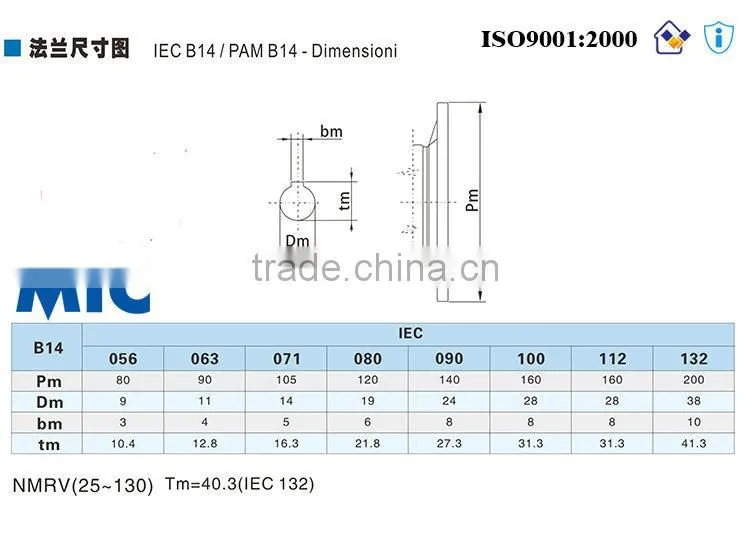

| IEC Flange: |
56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,100B5, 100B14,112B5,112B14 |
||||||||
| Lubricant: | Synthetic&Mineral | ||||||||
Allowed radial loading force on output shaft of deducer(N)
The table below is the allowed loading force on the midpoint of output shaft.
When the reducer is with double output shafts,the resultant radial power at the dege of shaft should not
exceed the values specified as in above table.
The max allowed axoal thrust is 1/5 of radial force while the radial force and axial force effected together.
| i | n2 | RV030 | RV040 | RV050 | RV063 | RV075 | RV090 | RV110 | RV130 |
| 7.5 | 186 | 691 | 1325 | 1829 | 2378 | 2799 | 3098 | 3908 | 5112 |
| 10 | 140 | 758 | 1454 | 2007 | 2609 | 3072 | 3400 | 4288 | 5610 |
| 15 | 94 | 868 | 1665 | 2298 | 2988 | 3518 | 3893 | 4910 | 6424 |
| 20 | 70 | 954 | 1829 | 2525 | 3283 | 3865 | 4277 | 5395 | 7057 |
| 25 | 56 | 1033 | 1981 | 2735 | 3556 | 4187 | 4633 | 5844 | 7645 |
| 30 | 47 | 1088 | 2087 | 2881 | 3745 | 4410 | 4880 | 6155 | 8052 |
| 40 | 35 | 1204 | 2309 | 3188 | 4145 | 4880 | 5401 | 6812 | 8912 |
| 50 | 28 | 1296 | 2485 | 3431 | 4461 | 5252 | 5812 | 7331 | 9590 |
| 60 | 24 | 1381 | 2649 | 3658 | 4756 | 5599 | 6196 | 7815 | 10224 |
| 80 | 18 | 1516 | 2907 | 4014 | 5218 | 6144 | 6799 | 8576 | 11219 |
| 100 | 14 | 1638 | 3142 | 4338 | 5639 | 6639 | 7348 | 9268 | 12124 |
Process Of An Order:
1.Please check product detailed information above.
A. Model/Size B. Transmission Ratio C. Shaft Direction D. Order Quantity.
2.Our Export Service Team will contact you with a quotation file 3 hours after our team get your enquiry.
3.When you please an order, our team will confirm with you about color, package,method of payment and delivery,
then a sales contract will be sent to you to confirm.
4.Packing: Carton and Wooden Case.
Welcome To Visit Our Factory - Located in the tourism city - Hangzhou -West Lake.
