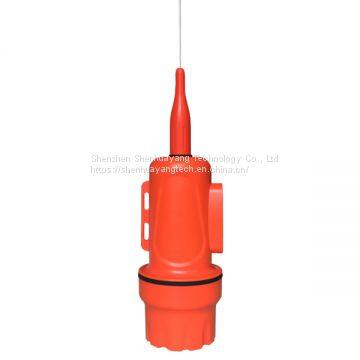

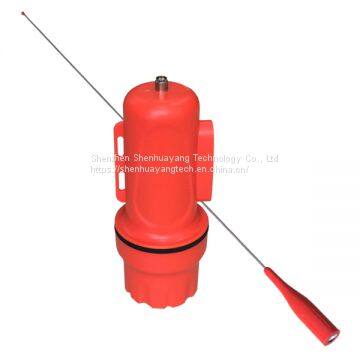

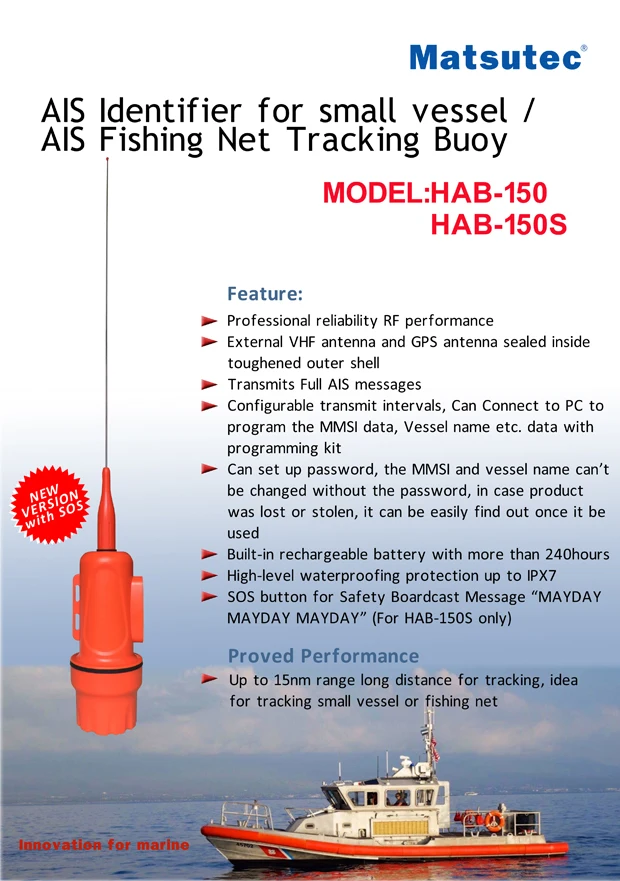

AIS Fishing net Tracking Buoy / AIS Identifier for small vessel + external 1.1m antenna
Model: HAB-150, HAB-150S
FEATURE:
1. Professional reliability RF performance
2. Ecternal VHF antenna, and GPS antenna sealed inside toughened outer shell
3. Transmit Full AIS messages
4. Configurable transmit intervals , can connect to PC to programm the MMSI data, vessel name etc. data with programming kit
5. Can set up password , the MMSI and vessel name can't be changed without the password, in case product was lost or stolen, it can be easily find our once it be used.
6. Built-in rechargable battery with more than 240hours
7. High-level waterproofing protection up to IPX7
8. SOS button for safety boradcast message "MAYDAY MAYDAY MAYDAY" (For HAB-150S only)
Proved Performance
Up to 15nm range long distance for tracking, idea for tracking small vessel or fishing net.
Application
Wanting for an accurate location of your fishing net? Wanting to save your time and fuel to find your net?
Self developed AIS Fishing Net Tracking Buoy, allows you to get an accurate location at night, in rain, and fog. Don’t worry about losing your fishing net anymore!
HAB-80 AIS Fishing Net Tracking Buoy unit uses advanced AIS technology to transmit the combined data that include the unique ID and the position of a net. And the data can be received effectively by the vessel equipped with AIS device, then easily recognized and find back the nets with HAB-80. Also it can avoid collision accidents by other boats.
Specification
Standards:
EC62287-1: 2006-03
IEC60945: 2002
ITU-R M.1371-2
Position update: every 3 minutes
Working frequency: 161.975MHz / 162.025MHz
Output power: 34.8dBm±1.5dBm
Channel bandwidth: 25 KHz
Modulation mode: GMSK
Bit Rate: 9600b/s±50ppm(GMSK)
Dimension: 1260 mm x 90mm
Weight: 0.5 KGS
Battery: 12.6V, 4000mAh; rechargeable
Working time: More than 240 hours
Antenna: External 1.1m VHF antenna
GPS Module: IEC61108-1 standard
Working Environment: -20C – 55C
Waterproofing: IPX7
Equipment List:
Tracking Buoy unit
1.1m VHF antenna
Battery recharger
