Technical parameters:
Special advantage 1. Light head integrated surrounded 2 group handle design, meeting laminar flow requirements, easy to operate 2. Variety of Surgical environment lighting mode: LED endoscopic lighting mode (optional) 3. Satlite oval hanging main arm, meet laminar flow requirement 4. Double control system (optional), Li battery (optional), electric focus adjustment system (optional)
Technical parameters

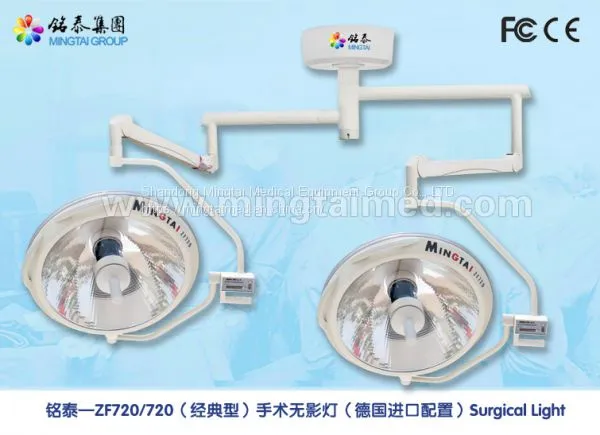

MINGTAI ZF720
MINGTAI ZF720
Illuminance (lux)
30,000-180,000
30,000-180,000
Color Temperature (Kelvin)
4,300±50
4,300±50
Lighting Spot Size (mm)
100-360
100-360
Illumination depth (mm)
≥1200
≥1200
Light Note depth (mm) (L1+L2)
≥1500
≥1500
Radiant power/intensity Ee/Ec(mw/㎡lux)
3.8
3.8
Brightness control range
16-steps continuous light adjustment
16-steps continuous light adjustment
Temp rise (Surgeon head) (℃)
≤2
≤2
Temp rise (surgical field) (℃)
≤7
≤7
Main & spare bulb switch
automatic switching
automatic switching
Power of bulb(V.HZ)
~220V/50HZ
~220V/50HZ
Input power(W)
400
400
Bulb type
halogen
halogen
Bulb lifetime
over 1500h
over 1500h
Lowest installation height (mm)
2400
2400
5. Base configuration: Germany imported balance arm system, Germany imported commutator, Germany imported bulb and socket, imported transparent mask glass, imported aluminum reflectors, electrode oxidation process, imported hexagonal filter, Taiwan power system
Product feature:
ZF series surgical light suitable for different surgery lighting, is the ideal light equipment for modern operation room. 1. Full close streamline light body design completely meets the operation room’s requirement of sterilization and high standard of laminar flow 2. Overall reflect system is made by CAD/CAM technology, its illumine depth is 1000mm. 3. Color compensation technology enhance the color recovering 4. Microcomputer digital control, 16-steps continuous light brightness adjustment, with illuminance memory function and wide voltage operation, electricity AC180V ~ 250V work stable, anti-interference ability 5. With spare bulb automatically switch function, when the main bulb was burnout, spare bulb will be lighted within 0.1 second. There's failure indication in the control panel Adopting Germany long life halogen bulb, life can be up to 1500 hours. 6. There is soft start unit 7. Adjusting focus system has a delicate structure and easy to change bulb and the ceramic lamp socket without any tools; Detached handle cover can take high temperature (≤ 140 ℃) sterilization treatment 8. Leggiere balance arm system, six group universal joints move together, moves leggiere, positions stability. 360° universal design can satisfy various height and angle requirement in operation
