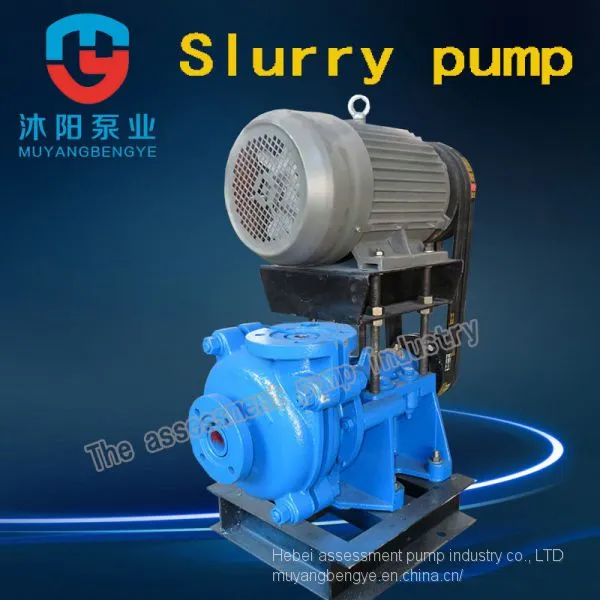

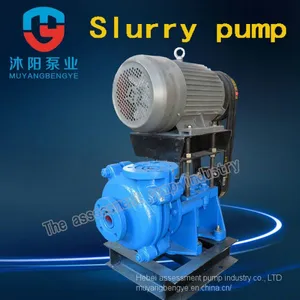

Help CenterHigh Chromium Alloy Wear-resistant Mortar Pump Material 14/12 st - AH the Assessment of Direct Selling
Related Products
-
High Chrome Wear-resisting Corrosion Resistance High hm 8/6 Large Horizontal Pump Flow Slurry Impurity e - AH (R)US$ 950 - 19500MOQ: 1 Kilometer -
Horizontal 2/1.5 B - AH Slurry PumpUS$ 950 - 19500MOQ: 1 Kilometer
-
Pulp Goro High Efficiency and Energy Saving Material Four Thirds d - AH Horizontal Slurry PumpUS$ 950 - 19500MOQ: 1 Kilometer
-
Four Thirds e - HH Sand Pump Slag Pump Mining Plant DedicatedUS$ 950 - 19500MOQ: 1 Kilometer
-
High Chrome Horizontal Slurry Pump 6/4 d - AH Marine Sand Dredging PumpUS$ 950 - 19500MOQ: 1 Kilometer
AH, HH series for cantilever slurry pump, centrifugal pump. USES open in horizontal, vertical axial double pump shell structure, lining for hard alloy or rubber has good wear resistance, corrosion resistance and high reliability. This type of pump has the thicker bearing grinding and with heavy brackets, so it is suitable for conveying strong abrasion, high concentration slurry high lift or low concentration slurry. In the range of pump work without the permission of the pressure, can use multi-level series. The pump can also be used for conveying a certain corrosive slurry. Products reasonable structure, reliable operation, long service life, etc. Especially suitable for the high concentration and strong abrasion working conditions.
Product features:
Core structure bearing components, choose high bearing capacity, bearing with grease lubrication and oil lubrication to adapt to different working condition. Can adjust the clearance between impeller and guard plate, no jam AH type centrifugal slurry pump, ensure the efficient operation of the pump.
AH slurry pump treatment measures
(1) eddy shell solid hard sediment silting up, can adopt measures to remove blockages.
(2) such as impeller or in and out of the water pipe road blocks, can adopt clean impeller or pipeline. Such as impeller wear serious, should be taken to change. Such as packing leakage, pressure filler. Conveying height is too high, tube resistance loss is too big, reduce transmission height or decrease resistance, according to these the cause of the problem, AH type centrifugal slurry pump manufacturer, the company adopts advanced technology research and development of a variety of slurry pump, wear-resistant anti-corrosion, high head, large flow etc, and widely used in various fields. AH series horizontal slurry all use the same series of transmission parts, including the bracket and bearing components, single-stage AH type centrifugal slurry pump, pump shaft diameter, good rigidity, short cantilever, not bent under harsh conditions and vibration of the bearing is selected according to the transmission power of different heavy single or double row circular cone roller bearings and cylindrical roller bearings, able to bear the axial and radial load of pump, bearing grease lubrication can be used according to the bearing box structure or thin oil lubrication, sealed end cover on both ends of the bearing body, maze and labyrinth ring, can be prevent pulp and other dirt from entering the bearing, ensure the safety of bearing can run, with a longer life.
