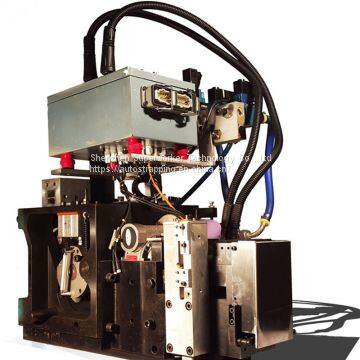

TIG Welding Strapping Joint Fully Automatic Cold Rolled Coil Steel Bundling Machine

TIG Welding Strapping Joint Fully Automatic Cold Rolled Coil Steel Bundling Machine thumbnail-1
TIG Welding Strapping Joint Fully Automatic Cold Rolled Coil Steel Bundling Machine thumbnail-2
TIG Welding Strapping Joint Fully Automatic Cold Rolled Coil Steel Bundling Machine thumbnail-3
TIG Welding Strapping Joint Fully Automatic Cold Rolled Coil Steel Bundling Machine photo-1
TIG Welding Strapping Joint Fully Automatic Cold Rolled Coil Steel Bundling Machine photo-2
TIG Welding Strapping Joint Fully Automatic Cold Rolled Coil Steel Bundling Machine photo-3
US$ 75000 - 80000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Superworker
Place of Origin:
China
Model Number:
DGR-5A
Contact Supplier Request Quote Chat Now
Shenzhen Superworker Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Superworker
Place of Origin China
Model Number DGR-5A
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Weight 1000kg
Dimension(L*W*H) Customized
Voltage 380v
Power 2.2Kw
Application Other, metal products, wood products, paper industry, construction materials,etc.,
Condition New
Automatic Grade Automatic
Driven Type Electric
Packaging Material Metal
Packaging Type Belt
The fully automatic steel strapping machine is used in the last procedure of the packing procedure of all heavy duty products, to secure the products and keep them in place during mass transportation.
The automatic steel strapping machine straps big and heavy products in all shapes, it is widely used for hot roll coil strapping, cold roll coil strapping,  pipe strapping, sheet strapping, bar strapping, rod strapping in steel or nonferrous metal factories, it's also a good choice for lumber strapping, automobile battery strapping, etc.

Parameters

SPECIFICATIONS FOR  SuperworkerTIG Welding Strapping Joint Fully Automatic Steel Strapping Machine
Power Supply
Control
Instant Air Consumption
Strapping Time
380V, 2.2KW, 50hz
PLC control, Siemens control touch screen
2.5L/s
32s/Strapping
Joint Type
Steel Strap Tension
Applicable Strapping
Application
steel strap is connected via argon arc welding spots( argon arc welding spots are in the middle of the steel strap overlap, strong and beautiful )
Max：20000N (adjustable)
Any brand, medium or high quality
Width: 19mm, 25mm, 32mm
Thickness: 0.8~1.2mm
for normal temperature working environment, the loads is fine with argon arc welding. Applicable products are: galvanized steel coil, cold rolled coil, sheet pile, wood pile, Aluminum ingot pile, steel ingot pile, pipe pile, industrial scrap etc.

Features

  • Modular and detail-oriented industrial design

  • 24/7 high reliability

  • Multi-option motor design allow our strapping machines to be used in all kinds of circumstances.

  • Works with any brand of steel strapping, either the medium or high quality type can be used for the machine which results in great cost savings on the strapping materials

  • With patented various joint types, no tripping off during bulk transportation.

  • Patented strapping dispensing system

  • Providing installation and commissioning services overseas

  • One year warranty and lifetime maintenance

Details

  • The direction of coil movement to the coil core axis is: horizontal

  • Strapping head on side

  • Separated steel strapping dispenser

  • Fixed strap track

  • Double Strapping head

  • Rotating strapping arch

  • German Brand Siemens PLC control and touchscreen control

  • Major parts from world-famous brands like Airtac or Festo

  • Movable rotating strapping arch to strap fixed products,through eye strapping

    Design can be customized according to the working conditions and inline facilities in the factories of different industries.



Product Tags: automatic steel roll steel strapping machine , automatic copper roll steel strapping machine , coil bundling
