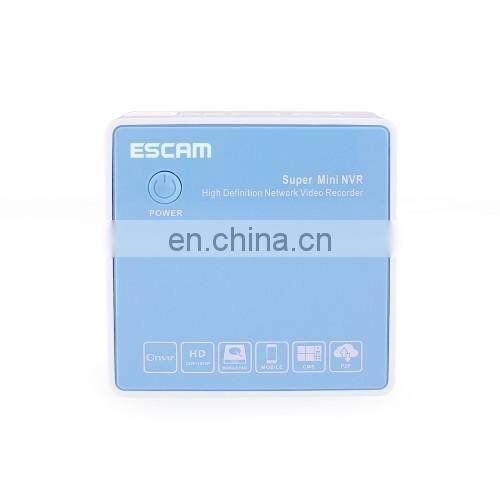

ESCAM NVR K204 4CH Mini NVR DVR
US$ 39.28 - 43.88
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
SPC1000
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Teclast Tbook 10 Dual OS 2-in-1 TabletNegotiableMOQ: 1 -
Leap Motion Controller for Mac or PCNegotiableMOQ: 1
-
PiPO W1s 2 in 1 10.1 Inch IPS Screen Win 10 Tablet PC With KeyboardNegotiableMOQ: 1
-
PiPO W9S 64GB Ultra-thin 14.1 Inch LCD Screen Wins 10 NetBook PCNegotiableMOQ: 1
-
ONDA V819 3Gs 8 Inch IPS Screen Android 5.1 3G Phone Call TabletNegotiableMOQ: 1
Place of Origin
Guangdong, China
Brand Name
OEM
Model Number
SPC1000
Description
Features

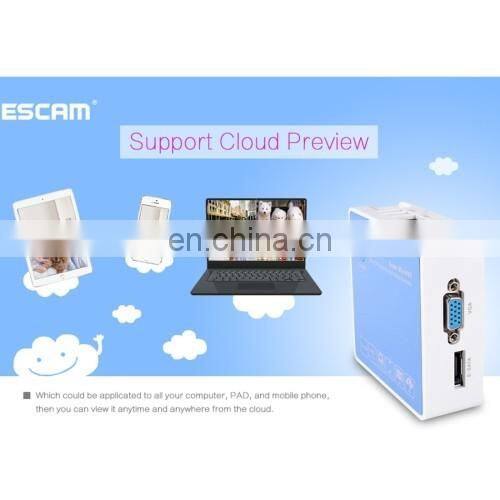

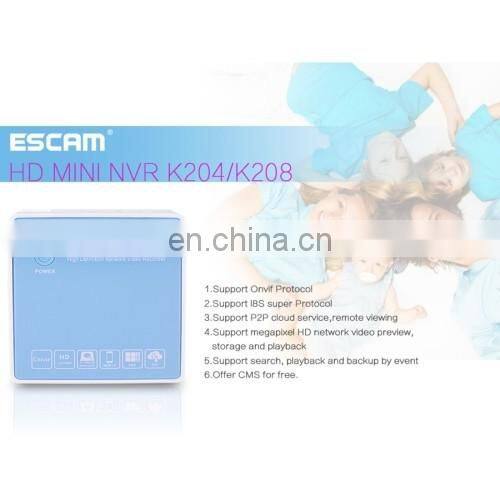

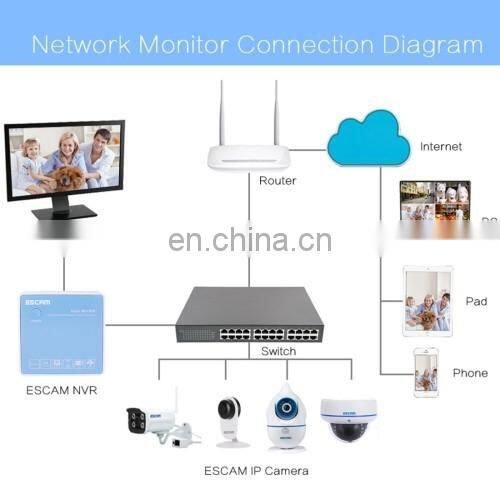

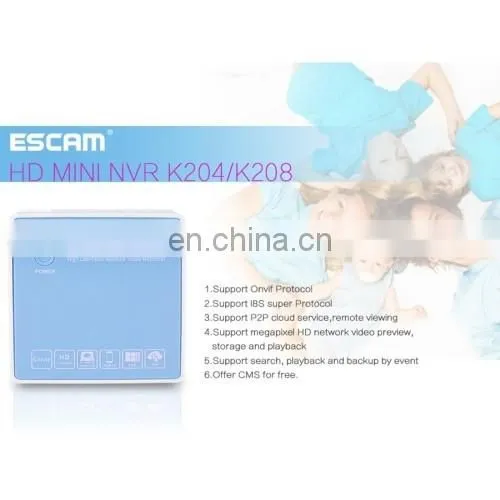

1. P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place
2. Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based on Onvif, RTSP standard
3. Support megapixel HD network video preview, storage and playback
4. Support search, playback and backup by event
5. Support all channel image display on one screen at same time, support 4 channels' image display by mainstream, and 4 channels playback
6. Support monitor PTZ on preview mode
7. Offer CMS for free
8. Image code quality adjustable, variable bitstream and constant bitstream optional
9. Each channel can set main stream and sub stream
10. 1080P(1920*1080)30fps/960P/(1280*960)/720P (1280*720)30fps video standard
11. Monitoring image: 1080P(1920*1080) / 960P/(1280*960)/720P (1280*720)
12. Image motion detection: Each screen can set mutiple detection areas and set 6- level sensitivity (IPC Support)
13. Recording Playback quality: 4ch playback in 4ch 720/960P mode;1ch 1080P playback in 1/4ch 1080P mode
14. Region cover: Every channel can set 4 cover regions (IPC Support)
15. Recording mode: Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)
16. Support U disk, USB mobile HDD, USB DVD-RW, storage and backup
17. Operation way: Mouse
18. Local login: User name and password
19. Recording storage: Local HDD, network

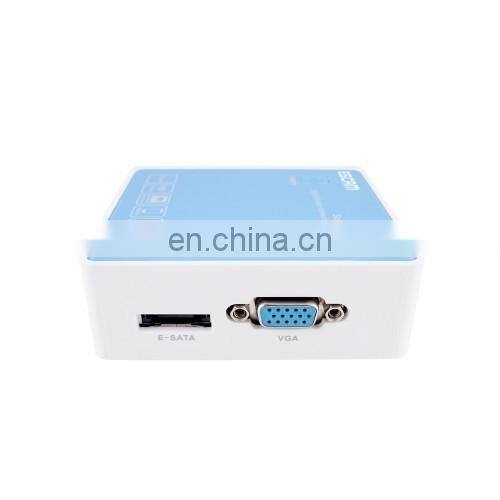

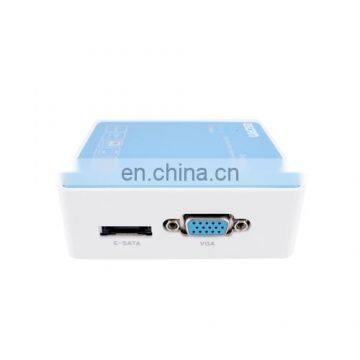

20. External ports video input
- 4x (1280*720)+sub(960*576)+4Ref.+4Play, Support 4ch 1.0MP IP camera
- 4x (1280*960)+sub(960*576)+1Ref.+4Play, Support 4ch 1.3MP IP camera
- 4x (1920*1080)+sub(960*576)+4Ref.+1Play, Support 4ch 2.0MP IP camera
- 4x (720*576)+sub(352*288)+4Ref.+4Play, Support 4ch 0.4MP IP camera
21. Audio Input: 4ch network audio input
How to Use
1. Preview channel can be switched to other channel randomly without changing the MAC which is convenient for the project construction
2. The dendritic menu can be moved. Man-machine communication is more direct and the settings of parameters are more easy and convenient
3. The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomly under preview and playback modes
4. Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD
5. The recording playback is shown by time bar and different color represents different recording type. It is very fast and easy to find check the recording
6. Recording backup can be accurate to second. Any time period of backup is available
7. The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can be viewed directly
8. Standard resolution which can be adjusted according to the display device in order to get the best image quality
9. Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD.
1. P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place
2. Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based on Onvif, RTSP standard
3. Support megapixel HD network video preview, storage and playback
4. Support search, playback and backup by event
5. Support all channel image display on one screen at same time, support 4 channels' image display by mainstream, and 4 channels playback
6. Support monitor PTZ on preview mode
7. Offer CMS for free
8. Image code quality adjustable, variable bitstream and constant bitstream optional
9. Each channel can set main stream and sub stream
10. 1080P(1920*1080)30fps/960P/(1280*960)/720P (1280*720)30fps video standard
11. Monitoring image: 1080P(1920*1080) / 960P/(1280*960)/720P (1280*720)
12. Image motion detection: Each screen can set mutiple detection areas and set 6- level sensitivity (IPC Support)
13. Recording Playback quality: 4ch playback in 4ch 720/960P mode;1ch 1080P playback in 1/4ch 1080P mode
14. Region cover: Every channel can set 4 cover regions (IPC Support)
15. Recording mode: Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)
16. Support U disk, USB mobile HDD, USB DVD-RW, storage and backup
17. Operation way: Mouse
18. Local login: User name and password
19. Recording storage: Local HDD, network
20. External ports video input
- 4x (1280*720)+sub(960*576)+4Ref.+4Play, Support 4ch 1.0MP IP camera
- 4x (1280*960)+sub(960*576)+1Ref.+4Play, Support 4ch 1.3MP IP camera
- 4x (1920*1080)+sub(960*576)+4Ref.+1Play, Support 4ch 2.0MP IP camera
- 4x (720*576)+sub(352*288)+4Ref.+4Play, Support 4ch 0.4MP IP camera
21. Audio Input: 4ch network audio input
How to Use
1. Preview channel can be switched to other channel randomly without changing the MAC which is convenient for the project construction
2. The dendritic menu can be moved. Man-machine communication is more direct and the settings of parameters are more easy and convenient
3. The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomly under preview and playback modes
4. Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD
5. The recording playback is shown by time bar and different color represents different recording type. It is very fast and easy to find check the recording
6. Recording backup can be accurate to second. Any time period of backup is available
7. The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can be viewed directly
8. Standard resolution which can be adjusted according to the display device in order to get the best image quality
9. Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD.
Specification:
| Camera General |
|
| NVR |
|
| Dimensions |
|

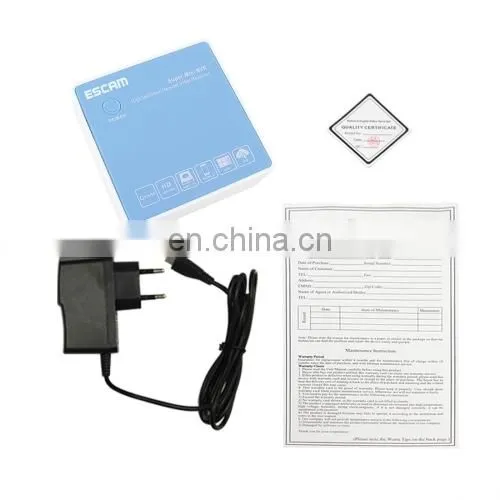

| Package Include |
|
| Package Weight |
|
