QT4-26C or QT4-25 Shengya Automatic Concrete Block Machine, Habiterra Block Production Line
US$ 12500 - 25000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
FUDA
Place of Origin:
China
Model Number:
QT4-25
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
25 days
Related Products
-
QT4-18 Hydraulic Automatic Block Making Machine, Concrete Brick Production Line Price for Sale in IndiaUS$ 15500 - 25000MOQ: 1 Piece -
QMR2-40 Small Manual Clay Lego Block Machine, Soil Earth Interlocking Brick Making Machine PriceUS$ 1500 - 2000MOQ: 1 Piece
-
SYN1-5 Hydraulic Press Automatic Clay Interlocking Brick, Lego Block Making MachineUS$ 8000 - 13000MOQ: 1 Piece
-
QT4-24B Semi Automatic Concrete Hollow Block Machine, Cment Interlocking Paving Brick Production PlantUS$ 8000 - 12000MOQ: 1 Unit
-
QT40-2 Fuda Machinery Small Manual Concrete Block Making Machine Price in GhanaUS$ 4000 - 6000MOQ: 1 Piece
Brand Name
FUDA
Place of Origin
China
Model Number
QT4-25
Certification
CE,ISO
Type
Interlock Block Making Machine
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12months
Dimension(L*W*H)
3710(L)×2200(W)×2100(H)mm
Voltage
380V
Power
15.65kw
Condition
New
Automatic
Yes
Capacity
5760PCS/8H
Method
Autoclaved Aerated Concrete
Processing
Brick Production Line
Brick Raw Material
Concrete
QT4-26C or QT4-25 shengya automatic concrete block machine, habiterra block production line
Video link: /QT4-25-fully-automatic-block-production-line-27-60-1.html

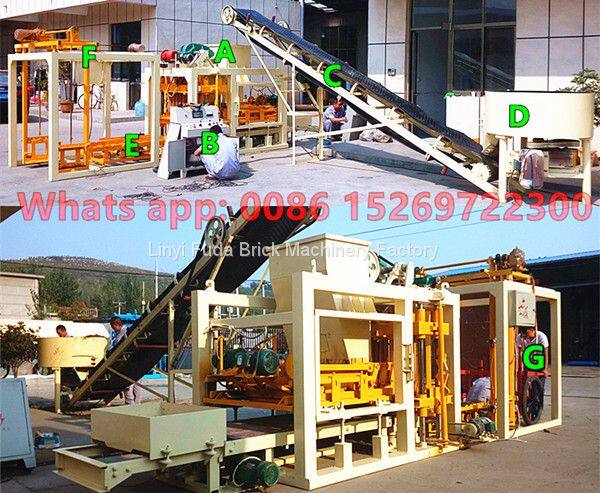

QT4-25 automatic brick production line introduce:
| A |
QT4-25 Host brick machine a. Automatic pallet system b. Automatic material feeding system |
| B |
B belong to A, It is QT4-25 brick machine full automatic PLC controller |
| C |
6m conveyor |
| D |
Mixer, Diameter: 1.5m, bigger power, 11KW |
| E |
Block receiver |
| F |
Stacker, it could layer 4-5 pallets blocks |
| G |
Manual forklift trolley (2 pcs), tool box |
| Optional | Pallet |
Note:
1. All QT4-25 block machines need to load into a 40HQ container.
2. QT4-25 block machine also need 1000pcs fiber pallet when produce blocks.
Fiber pallet quality video link:
https://youtu.be/a4jlNOkhIFQ
QT4-25 Automatic brick plant technical information:
|
QT4-25 Host machine total power |
15.65kw |
|
Molding cycle |
25s |
|
Vibration frequency |
4000-4800hz |
|
Vibration force |
22kn |
| Work Type | Automatic and vibration forming |
|
Host brick machine size |
3710(L)×2200(W)×2100(H)mm |
|
Net Weight |
3500KG |
|
Pallet size |
850-550MM |
QT4-25 block factory all items investment information solution:
|
Total Power Consumption(A,B,C,D,E,F) |
30.5 kw/h; 244 kw/8 hours |
|
Max. Material Consumption Per 8 Hours a. Concrete: 10% cement, 30% sand; 60% stone powder b. 400-200-200mm; 2 holes hollow block |
Water: about 1200 kgs |
|
Cement: about 5870kgs | |
|
Sand: about 17610 kgs | |
|
Stone powder: about 35224 kgs | |
|
Factory total size |
At least 1000 square meters |
| Workers |
6-7 workers in factory |
| Main parts quality |
Main Motor: Shanbo brand (Chinese famous brand) PLC: Vigor or Delta from Taiwan Inductor and Switch: CHNT or Schnelder |
| Warranty | One year |
