diameter 51mm 63mm 76mm pipe benderElectric hydraulic pipe bending machine multi-function automatic bending platform CNC small pipe bender
Platform pipe bender description:
1. Mechanical transmission parts: self-developed transmission gearbox design, durable, strong intensity, Elbow die wheel rotation, with the pressure of the one-time high-strength amorphous elbow.
2. Circuit control part: the use of advanced embedded microcomputer intelligent control system, the angle input digital, easy to get started.
3. The pipe bending machine advantages:
a. By experienced technicians production, stable performance
b. Smart chip control, fast response, high sensitivity can be set to intelligent control systems.
c. using encoder control angle, running angle accuracy, high repeatability error is minimal.
d. from the root causes due to "mechanical" downtime can not accurately control the angle of deviation, low repeatability, inconvenient, and many other problems.
4. The pipe bender main application: furniture manufacturing industry, gate processing industry, fitness equipment industry, the pipeline industry, decoration industry, car parts manufacturing industry, recreational equipment industry, scaffolding, yurts and other pipe processing.
5. The pipe bending machine main parameters:

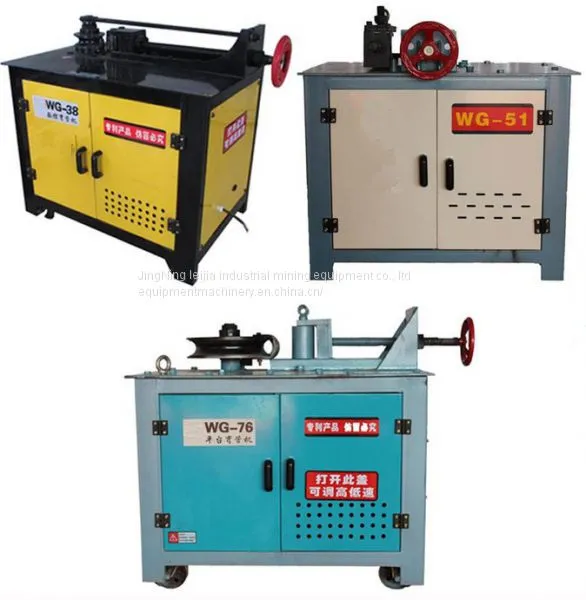

Model |
WG-38 |
WG-51 |
WG-76 |
Pipe diameter application range |
≤Φ38 steel pipe(thickness ~2mm) |
≤Φ51 steel pipe(thickness 2-3mm) |
≤Φ76 steel pipe(thickness 2-3mm) |
Bending speed |
10~12 r/min |
4~6 r/min |
3~5 r/min |
Number of bending angle |
9 |
9 |
9 |
The maximum bending angle |
200 |
200 |
200 |
The minimum bending angle |
30 |
30 |
30 |
Motor Power |
2.2KW-6 |
3KW-4 |
4KW-4 |
Voltage |
Three-phase AC 380V,50Hz |
Three-phase AC 380V,50Hz |
Three-phase AC 380V,50Hz |
Foot switch voltage |
DC 5V |
DC 5V |
DC 5V |
Dimension |
920x650x850mm |
930x680x850mm |
940x750x850mm |
Weight |
210kg |
260kg |
300kg |
