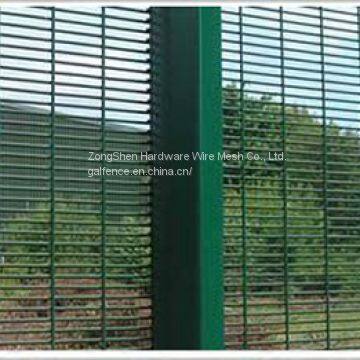

358 anti climb mesh fence also called high security fence, prison fence. It is named by its specification: Mesh Aperture: 76.2mm x 12.7mm (3'' x 0.5''), Wire Dia.: 4mm (Gauge 8).
358 Mesh Panels Galvanized + Powder Coated Steel Security Fencing (Black or Green Epoxy Coated) for Machine Safety Guarding Screen.
358 welded steel mesh is treated with marine grade heavy plastic powder coating after galvanised. 8 to 10 feet height is common size for black powder coated steel 358 mesh, fitted with 11 feet length posts black powder coated and other fittings. Galvanized and green powder coating also available.
The type of mesh fence is anti-cut, anti-climb, water resistance powder coated with marine grade Plastic. Popular product is ½” x 3” 8 gauge galvanized, and ½” x 3” 10.5 gauge GAW plus heavy duty PVC coating. Wire: 4 mm, galvanized + powder coating. General installation height is 1.5 m.
358 Mesh Panels – Hot Dipped Galvanised & Powder Coated Delivered to South Africa, East London
2.4mts high x 2550mm long
Including all posts/fixings/etc
Finish powdercoated RAL 6005 green
Epoxy Powder Coated Steel Mesh Fencing
358 Galvanized Steel Mesh of Epoxy or Polymer Coating
Inner aperture:72.2×8.7mm
Wire diameter:4mmm
Width: to 2.9m
Tensile of the wire: 600-750N/m2
Welded strength: 60%-80%
Height: up to 4.8m
Fence post: 80 x 60mm, 80 x 80mm or 120 x 60mm.
Polymer Coated Steel Mesh
Advantages:
The aperture is 76.2mm horizontal x 12.7mm vertical and makes 358 security fencing extremely difficult to penetrate using conventional hand tools.
• Mesh panels with wire welded at every intersection
• Overlapped by a minimum of 75mm at posts to maintain integrity of protection
• Unique vandal and tamper-proof panel to post fixing
• Extremely strong
• Can be stepped to accommodate sloping ground
• Can be fixed to walls with cranked posts
• Post tops can be customised to carry barbed/razor wire, Rota-Spike, Alarm-aFence electric fence lines, CCTV cameras etc
• Matching swing and sliding gates available for pedestrian and vehicular access.
Features:
Anti-climb: more small openings, no toe or finger holds.
Anti-cut: robust wire and welded joints make cutting very difficult.
Better visibility: flat, two-dimensional profile, easier to see through than chain link.
Specifications:
1/2" x 3" x 8 gauge
1" x 3" x 8 gauge
Panel size from 2m to 4m
Finished by hot dipped galvanized or powder coated after galvanized, Any color available.
Application:
358 Mesh provides the highest degree of physical perimeter protection, ideal for prison and other sensitive areas requiring the maximum degree of security.
Also used for nuclear establishments; to computer center, research laboratories and warehouses; to schools and other areas;
Bridge anti-climb guarding & guard safety screening;
Sub-station security fencing;
Psychiatric hospital security fencing;
Factory machine guard.
Common Sizes:
358 Mesh /welded prison mesh
Wire diameter: 4mm, 5mm
Mesh: 76.2x12.7mm.
