Applications Of Resin Bond Diamond Grinding Wheel For Thermal Spraying:
Roll Grinding And Grinding Of Thermal Spray Coatings ( Including Tungsten Carbide , Chrome Carbide And Chrome Oxide ), Ceramics, Carbides, Chilled Iron Composites And Other Hard-To-Grind Materials.
Thermal Spray Coating Process:
Thermal Spray Technologies Includ Flame Wire Spray, Arc Spray, Plasma Spray, HVOF Or HVAF , Detonation Spray, Cold Spray .Thermal Spraying Technology Is Widely Used In Aerospace, Aviation, Machinery, Metallurgy, Chemical, Petroleum, Coal, Railway, Textile And Many Other Departments .
Specifications Of Resin Bond Diamond Grinding Wheel For Thermal Spraying:
| Diameter (Mm) | Diameter (Inch) | H (Mm) | T (Mm) | X (Mm) |
| 25 | 1 Inch | 6 | 12 | 6 |
| 30 | - | 12 | 6 | - |
| 40 | - | 12 | 6 | - |
| 50 | 2 Inch | 6 | 12 | 6 |
| 100 | 4 Inch | 12 | 12 | 10 |
| 150 | 6 Inch | 12 | 25 | 10 |
| 300 | 12 Inch | - | 25 | 10 |
| 400 | 16 Inch | 127 | 25, 50 | 10, 25 |
| 500 | 20 Inch | 127, 203.2 | 25, 50 | 10, 25 |
| 600 | 24 Inch | 254 | 25, 50 | 10, 16, 25 |
| 750 | 30 Inch | 304.8 | 50 | 10 |
| 914.4 | 36 Inch | 304.8 | 25, 50 | 10, 25 |
| 1100 | 43 Inch | 304.8 | 50 | 10 |
| Other Specification Can Be Made According To Customer Requirement Email:sales@Moresuperhard.Com | ||||
The Cases Of Resin Diamond Grinding Wheel For Thermal Spraying Coating :

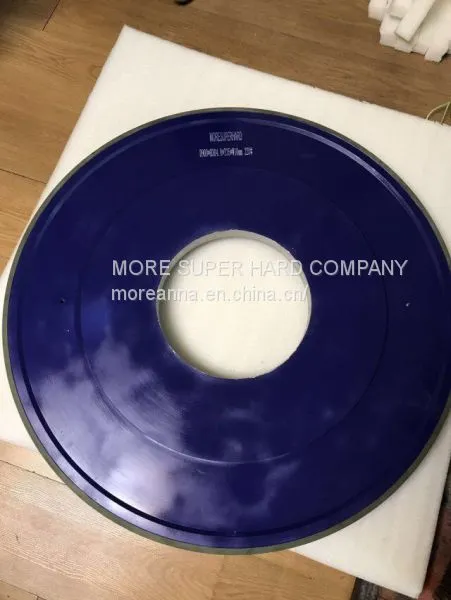

36 Inch (D914.4 Mm) Big Resin Diamond Grinding Wheel
30 Inch (D750 Mm ) Resin Diamond Grinding Wheel For Thermal Spraying Coating
24 Inch ( D600mm) Resin Bond Diamond Grinding Wheel
Nowadays, The Width Of Diamond Layer Of D600 Resin Bond Diamond Grinding Wheel We Can Reach 25mm
4 Inch (D100 Mm) Resin Diamond Grinding Wheel
