50533020 Hitachi Oil Separator
US$ 30 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Coolworks or as customer require
Place of Origin:
China
Model Number:
50533020
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days
Related Products
-
2116010085/2116010086 Sullair Oil-Gas Separator for Sullair Air Compressor MachineUS$ 30 - 300MOQ: 1 Piece -
Ingersoll Rand Air Filter Air Compressor Parts 23699978US$ 30 - 300MOQ: 1 Piece
-
Equivalence Sullair Air Compressor Parts Oil Filter 02250106-789US$ 30 - 300MOQ: 1 Piece
-
89298971 Air Filter For Ingersoll-Rand Compressor PartsUS$ 30 - 300MOQ: 1 Piece
-
50533020 Hitachi Oil SeparatorUS$ 30 - 300MOQ: 1 Piece
Brand Name
Coolworks or as customer require
Place of Origin
China
Model Number
50533020
Product Description

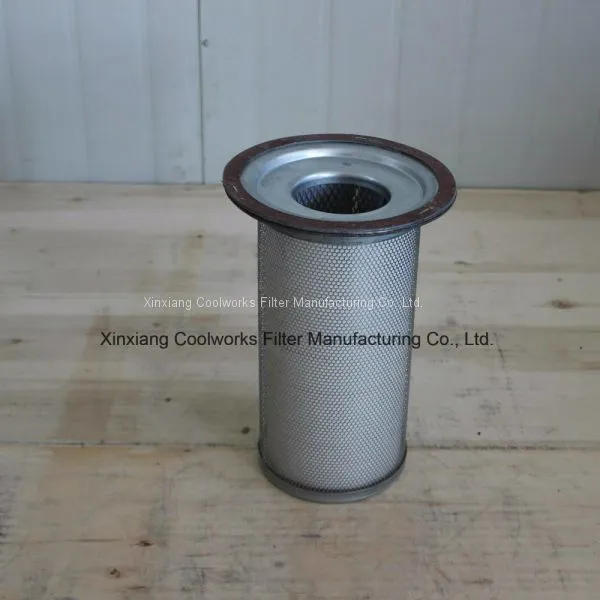

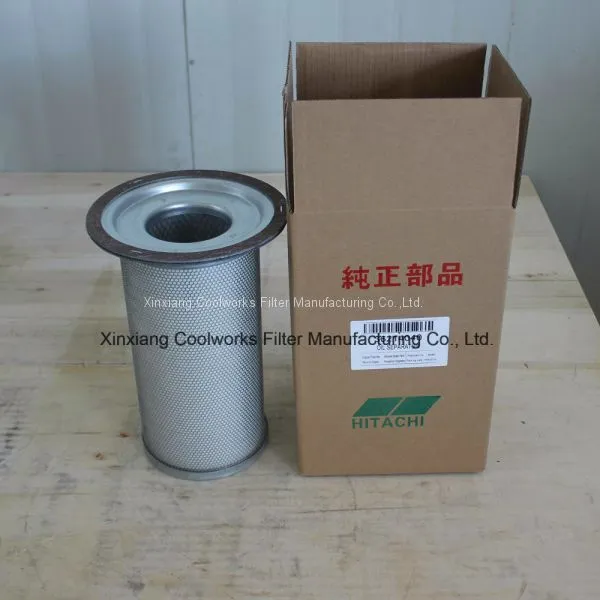

HITACHI compressor air oil separator 50533020
1.Filtering precision:0. 1 Micron .
2.Oil contained in compressed is below 3ppM.
3.Filtration efficiency:99.99%.
4.Service life is approximately 4000h.
5.Initial pressure differential less than 0.02Mpa.
6.Filter element of air oil separator is made by the thin fiberglass,which imported from Germany HV company.
7. Structure: The outer is metal nets, inside is high densite fiber glass and gas separation material, most inside is the metal nets, flange connection with sealing ring.
Packing Detail:
1. Small carton boxes for each separator, then big thick carton boxes for several separators.
2. Neutral packing or as customer require
The consequences for air oil separator filter extended use:
1. Separation efficiency is poor, resulting in increased fuel consumption, increased operating costs, lack of oil serious may even lead to host failure;
2. Compressed air outlet oil content increases, affecting the back-end purification equipment, resulting in gas equipment can not work;
3. After the blockage increases, leading to the actual unit discharge pressure increases, increasing energy consumption;
4. Oil gas separation filter run time is too long , the glass fiber material may falling into the oil, resulting in shortened life of the oil filter.
Other details for your reference :
If there's anything we can do for you, please feel free to contact us. We will always be here for you!
1.Filtering precision:0. 1 Micron .
2.Oil contained in compressed is below 3ppM.
3.Filtration efficiency:99.99%.
4.Service life is approximately 4000h.
5.Initial pressure differential less than 0.02Mpa.
6.Filter element of air oil separator is made by the thin fiberglass,which imported from Germany HV company.
7. Structure: The outer is metal nets, inside is high densite fiber glass and gas separation material, most inside is the metal nets, flange connection with sealing ring.
Packing Detail:
1. Small carton boxes for each separator, then big thick carton boxes for several separators.
2. Neutral packing or as customer require
The consequences for air oil separator filter extended use:
1. Separation efficiency is poor, resulting in increased fuel consumption, increased operating costs, lack of oil serious may even lead to host failure;
2. Compressed air outlet oil content increases, affecting the back-end purification equipment, resulting in gas equipment can not work;
3. After the blockage increases, leading to the actual unit discharge pressure increases, increasing energy consumption;
4. Oil gas separation filter run time is too long , the glass fiber material may falling into the oil, resulting in shortened life of the oil filter.
Other details for your reference :
| Leading time | 5-7 working days |
| Payment | L/C, T/T, Western Union, |
| Package | Neutral packing or according customer requirement |
| Shipment | By Sea, By Air, By express(DHL , Fedex ,TNT, UPS etc) |
| MOQ | 1 pc |
| Contact | Tel:86-373-7039669 |
If there's anything we can do for you, please feel free to contact us. We will always be here for you!
