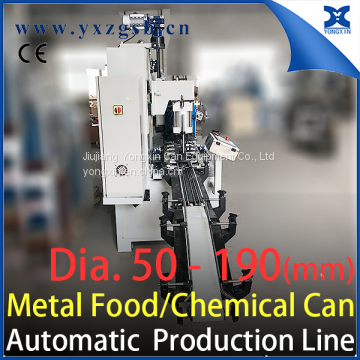

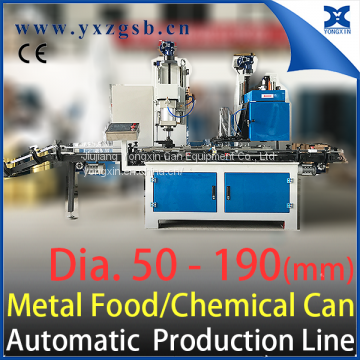

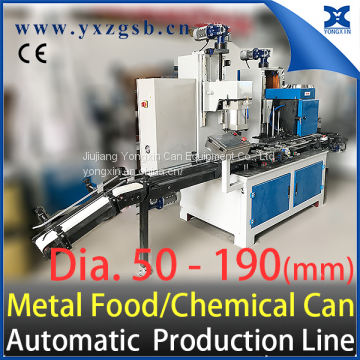

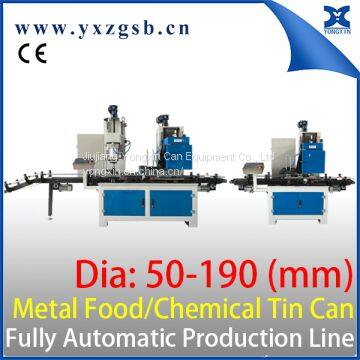

Auto Small Chemical Can Packaging Making Machinery Production Line for 0.25-5L Tin Can
US$ 83000 - 103000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Yongxin
Place of Origin:
China
Model Number:
XYGX
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Ningbo / Guangzhou
Delivery Detail:
80 days
Related Products
-
Can Body Making Machinery for Tinplate SlittingUS$ 4200 - 4600MOQ: 1 Unit -
Automatic Duplex Slitting Machinery for Can BodyUS$ 50000 - 57000MOQ: 1 Unit
-
Semi Automatic Paint Chemical Can Making Production LineUS$ 4,500 - 5,000MOQ: 1 Set
-
Auto Small Chemical Can Packaging Making Machinery Production Line for 0.25-5L Tin CanUS$ 83000 - 103000MOQ: 1 Set
-
Automatic Tin Can Making Machine Production Line for Beverages & Chemicals for Plastic Glass & Metal Packaging 1-Year WarrantyUS$ 10000.00MOQ: 1 Set
Brand Name
Yongxin
Place of Origin
China
Model Number
XYGX
Certification
ISO9001, CE
After-sales Service Provided
Engineers available to service machinery overseas
Weight
2800KG
Dimension(L*W*H)
L5800 x W1000 x H2000 (mm) 【entire length customed design provided】
Voltage
380V AC
Power
4KW
Application
Chemical
Condition
New
Automatic Grade
Automatic
Driven Type
Pneumatic
Packaging Material
Metal
Packaging Type
Cans
| Product Name | D190mm Round Can Fully Automatic Can Flanging & Seaming Machine |
| Usage | Round Chemical Can Canmaking Diameter range from 50-190mm |
| Item Condition | Brand-New |
| Applicable Can Shape | Rounded Can |
| Applicable Can Vol. | 0.25-5Litre |
| Main Color | Blue + White |
| Output Capacity (CPM): | 35-40Cans/min. (Diameter Dependent) |
| Machine Operation Mode | Automatic Pneumatic-Drive |
| Range of Can Diameter | Φ52-190 (mm) |
| Max. Can Height | 60-330 (mm) |
| Max. Sheet Thickness: | 0.4 (mm) |
| Lid Feed-in Mode | Automatic Feed-in |
| Automatic Flanging Machine Unit | Built-in |
| Upending Device | Built-in |
| PLC Device | Built-in |
| VFD Device | Built-in |
| Auto Feed-Can-in Detection | Provided （For matching seaming linkwork Sys.) |
| Auto Lubrication Sys. | Buiilt-in (Timely lubricating+Lubricating frequency adjustable) |
| Touch Panel Screen Device | Built-in 7'' Color Display (English Language Interface) |
| Input Conveyor Control System | Pacing Speed Drived by Gear Motor （Setting Availble） |
| Output Conveyor Control System | Constant Speed drived by Gear Motor （Setting Availble） |
| Seaming Mode | High Precision Double Seaming |
| No. of Seaming Rollers | 4-Roller |
| Seaming Roller Material | High-grade Alloy Tool Steel (Cr12MoV) |
| Seaming Chuck Material | High-grade Alloy Tool Steel (Cr12MoV) |
| Main Frame Material | High Strength Steel for Canmaking |
| Power System Overload & Short-circuit Protection | Provided |
| Pad-Lock Emergency Switch (ON-OFF) | Built-in |
| Protection Grade for Electrical Switch-gear Box | Class Index IP65 |
| Total Power: | 4.0 kW |
| Motor Rotation Speed | Variable |
| Power Supply Required | 380V 50/60Hz @ Three-Phase Sys. |
| Motor Supplier | SIEMENS |
| Air Pressure Require | No less 0.6MPa |
| Pneumatic System Supplier | AirTAC |
| Touch Panel Screen Device Supplier | Schneider Electric |
| Linear Motion Guide Rail System | HIWIN |
| PLC Device Supplier | Delta |
| Electrical Control & Distribution System Supplier | Schneider Electric |
| Inductive / Photoelectric Sensor Supplier | CONTROLWAY + HANYONG NUX |
| Standard | IEC60947 for Electrical System |
| Construction Size | L5800 x W1000 x H2000 (mm) 【entire length customed design provided】 |
| Weight: | 2800kg |
| Lead time: | 10-12 weeks |
| Packaging | Plywood Case (Standard Export Packaging) |
| Warranty: | 1st Year FREE CHARGE for parts from shipping date + Lifetime services |
| Operator Manual & Instruction | PDF / Printed paper provided |
