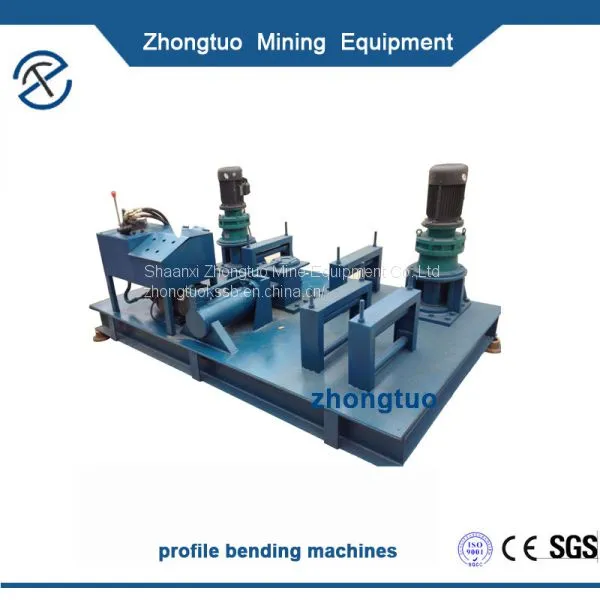

H Beam Bending Machine/Angle Bending Machine Factory Supply

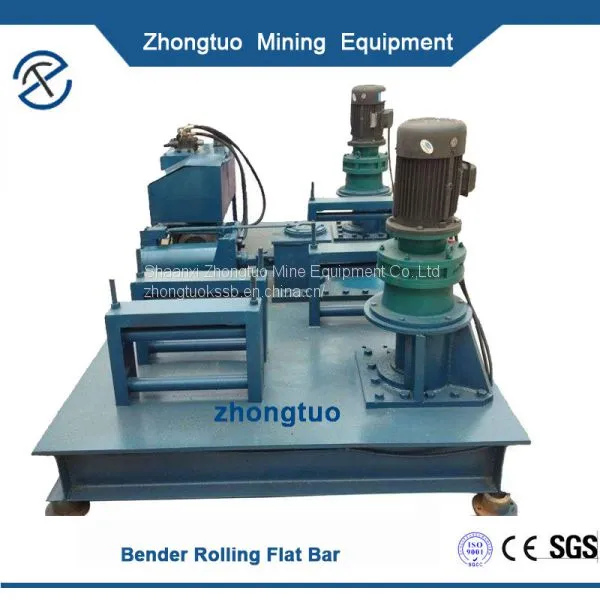

Description of Bender Rolling Flat Bar:
the machine through the tireless efforts of our scientific research personnel, can be up to 1.2 1.4 M minimum bending radius, and a molding,main used for i team,channel ,H steam professional bending,in tunnel,railway,
hydropower station,and underground projection.

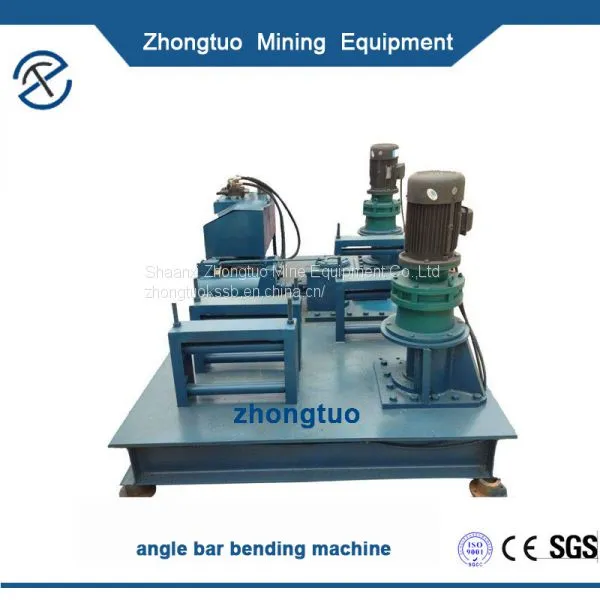

Characteristics of Angle Roll Bending:
Increasing the bottom to ensure there is no distortion ,two main wheels center distance can be adjusted to 2.1m
and 1.45m ,when it bend to smaller (machining 10-16) than usual ,main wheel is on the center of 1.45m .it is easy to change parts,does not need re-calibration.the user can make a sliding platform on both ends of the workpiece to save cost .

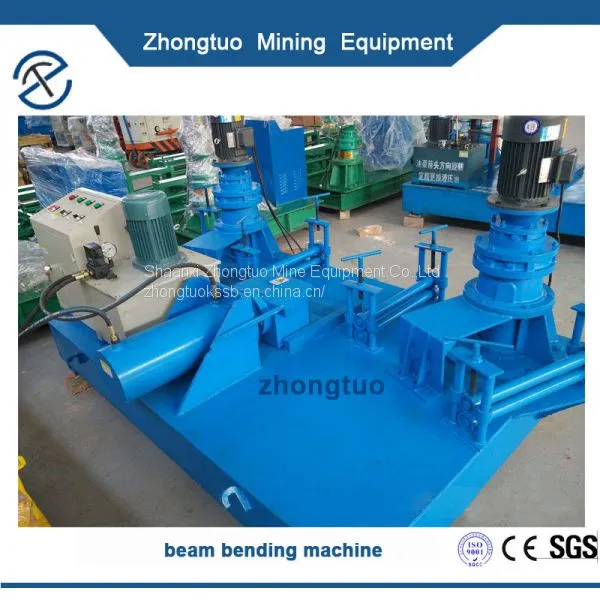

Parameter of steel beam bending machine:
Sr. |
ITEM |
Parameter |
1 |
Model |
ZTM-WGJ250 |
2 |
Suitable for steel |
14-25 H steel beam |
3 |
Cylinder Speed |
3-3.5mm/s |
4 |
Max Hydraulic Pressure |
25mpa |
5 |
Hydraulic pump power |
4kw |
6 |
Pulling motor power |
2.2kw X 2 |
7 |
Minimum Bending Radius |
1.8m |
8 |
Dimension |
2760*1640*1360mm |
9 |
Weight |
2200kg |
Application of profile bending machines:
Main application fields:highway tunnel, railway tunnel, subway tunnel, water conservancy and hydropower diversion culvert, natural gas pipeline, communication pipeline, underground passage, etc..
Welcome to contact us: zhongtuoks@foxmail.com,
jessie@ztmineequipment.com
