Superior Quality Outdoor Advertising Full Color P16 Led Display

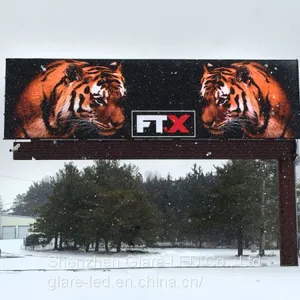

Superior Quality Outdoor Advertising Full Color P16 Led Display thumbnail-1

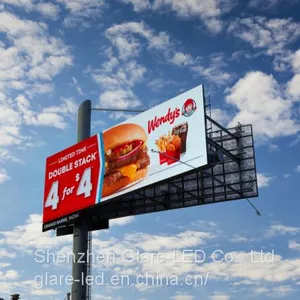

Superior Quality Outdoor Advertising Full Color P16 Led Display thumbnail-2
Superior Quality Outdoor Advertising Full Color P16 Led Display thumbnail-3

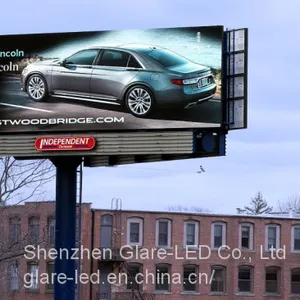

Superior Quality Outdoor Advertising Full Color P16 Led Display thumbnail-4

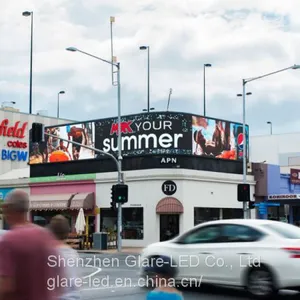

Superior Quality Outdoor Advertising Full Color P16 Led Display thumbnail-5
Superior Quality Outdoor Advertising Full Color P16 Led Display photo-1

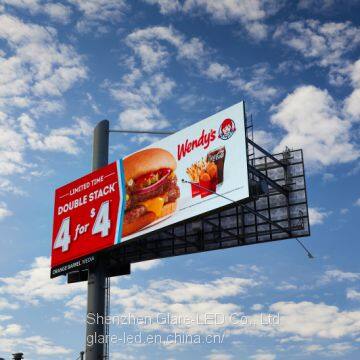

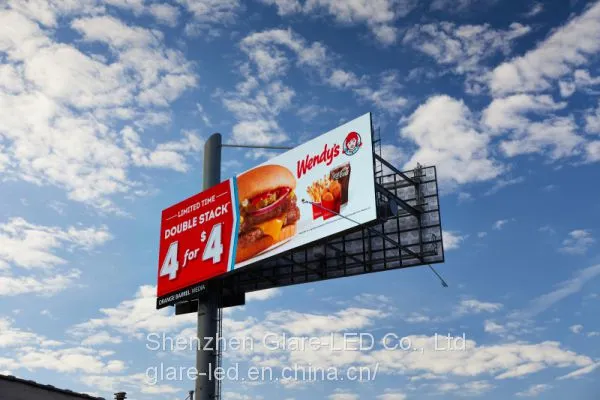

Superior Quality Outdoor Advertising Full Color P16 Led Display photo-2

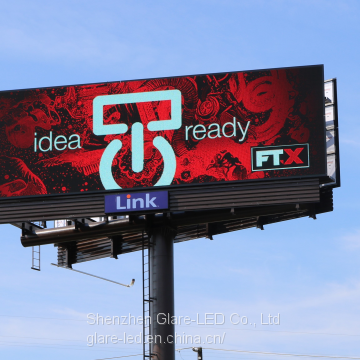

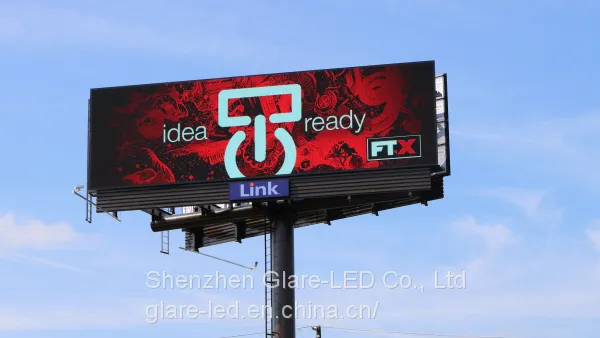

Superior Quality Outdoor Advertising Full Color P16 Led Display photo-3

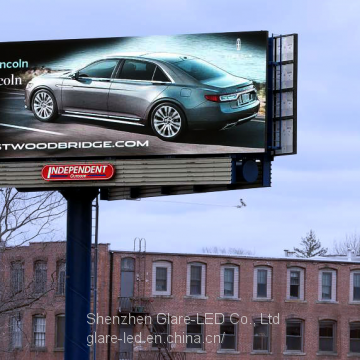

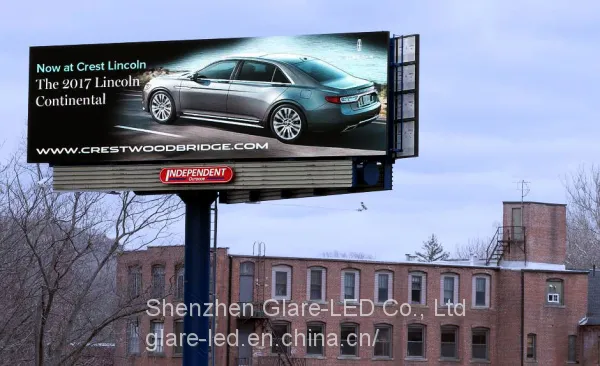

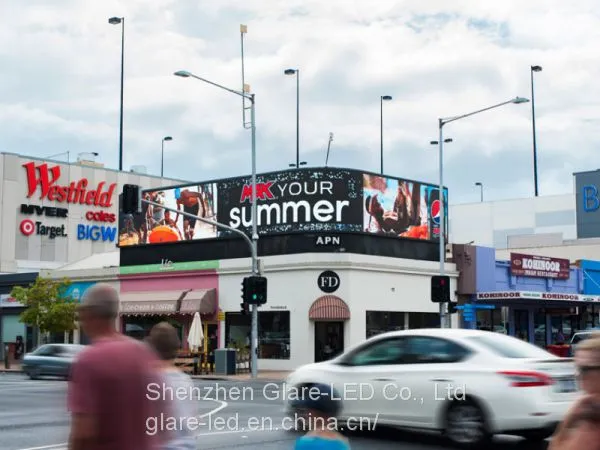

Superior Quality Outdoor Advertising Full Color P16 Led Display photo-4

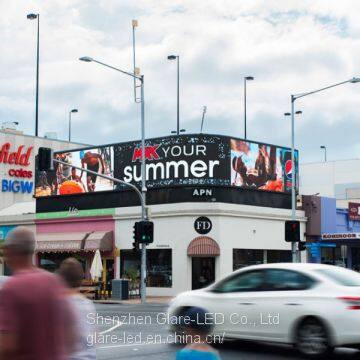

Superior Quality Outdoor Advertising Full Color P16 Led Display photo-5
US$ 800 - 10000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Glare-led
Place of Origin:
China
Model Number:
Glare-p16
Contact Supplier Request Quote Chat Now
Shenzhen Glare-LED Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Glare-led
Place of Origin China
Model Number Glare-p16
Usage Outdoor
Pixels 16mm
Screen Dimension 1024*1024mm
Display Function Video
Tube Chip Color Full Color
Overview
Quick Details

  • Place of Origin:

  • Guangdong, China (Mainland)

  • Brand Name:

  • Glare-led

  • Model Number:

  • GL-P16

  • Usage:

  • Outdoor

  • Tube Chip Color:

  • Full Color

  • Display Function:

  • Video

  • Pixels:

  • 16mm

  • Screen Dimension:

  • Customized Size

  • Product name:

  • P16 fixed led full color panel

  • Application:

  • Outdoor Advertising Led

  • Warranty:

  • 2 Years

  • Brightness:

  • 7500cd~8000cd/m2

  • LED chip:

  • Epistar

  • Module size:

  • 256*256mm

  • IC:

  • MBI5020

  • Pixel Pitch:

  • 16mm

  • Drive Method:

  • static

  • wateproof level:

  • IP65
Packaging & Delivery

  • Packaging Details

  • wooden box

  • Delivery Time

  • sample delivery time: 2weeks after payment

Product Description
P16 fixed led full color panel

Glare-LED P16 lamp outdoor DIP full-color LED display vivid colors, strong adaptability, widely used in commercial advertising, radio and television media, municipal engineering, stadiums and various public facilities and other places

Package type
DIP
Pixel pitch
16mm
Pixel composition
single color, double colors, full color
Viewing angle
horizontal 90 ° ~ 120 °, 30 ° ~ 60 ° vertically
Cabinet material
iron/aluminum
-20℃~+65℃Operating temperature
-20℃~+65℃
Power Consumption
Max 1000W/sqm /Average 500W/sqm
LED Chip Brand
Full Epistar
Grade Level
RGB 4096 grade/each
Protection Level
IP65
Screen Weight
65KG/m2
LED Module Size
16 pixels x 16 pixels/256mm x 256mm
LED Cabinet Size
1024mm X 1024mm(64 pixels x 64pixels)
Best Viewing Distance
16m ~ >400m((39ft ~ >1300ft))
Adopt Taiwan Epistar LED chip:

Excellent technical design, Good performance in high current, continuously exceed

the limit of LED capability

Large module design

-P10 and P16 modules adopt 32*16、16*16 large module design, less connectors, better consistency, and more outstanding product performance

MBI IC driver,Private pcb board and module

-Adopt the leading IC brand to ensure the stable and reliable electrical performance of the module.

-Excellent R & D capability, we can develop and customize PCB circuit board and module kit according to customer's requirement

MEANWELL Power supply , Energy saving and efficient

- Adopt Taiwan MEANWELL power,conversion rate is as high as 82%.

- Good heat dissipation, longer life and lower cost

Static constant current drive

- It dopts the static constant current mode for the power supply, the luminous more stable, the brightness and the contrast of the outdoor display screen can be effectively guaranteed

Wide waterproof apron

The full range of P10, P12, P16 and P20 modules are designed with Wide waterproof apron for strict use environment of outdoor products.

Detailed Images
Installation Method

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

p16 led advertising panel Product Technical Features:

1, High Precision optical design of LED, each pixel is integrated by RGB LED chips.
2, Perfect color mixing efficiency: rational design on reflector and chip arrangement makes RGB colors mixed and condensed sufficiently and creates no granular sensation.
3, Good performance in flatness, uniformity, consistency and clarity.
4, The raw material of all of the outdoor products including LED chips, mask, glue, and steel cabinets have the ability of enduring high temperature and high humidity, and being anti-UV, waterproof, anticorrosion and antirust.
5, Every production process is well controlled and all of the electronic components are covered by 2mm Tri-Guard Lacquer to ensure no oxidation, no rusty and no moisture, Five-Guard Lacquer will be used for special requirements.
6, Large viewing angle, up to 100 degree horizontally and 100 degree vertically, with no image distortion and no color cast at any angle within this range.
7, All of the cabinets are tested by flush, shower and soaking, to ensure the waterproof grade of front side to be IP65.

Packing & Delivery

Standard wooden packaging make sure LED Display safe deliver. For shipping method per your requirements by sea or by air.
