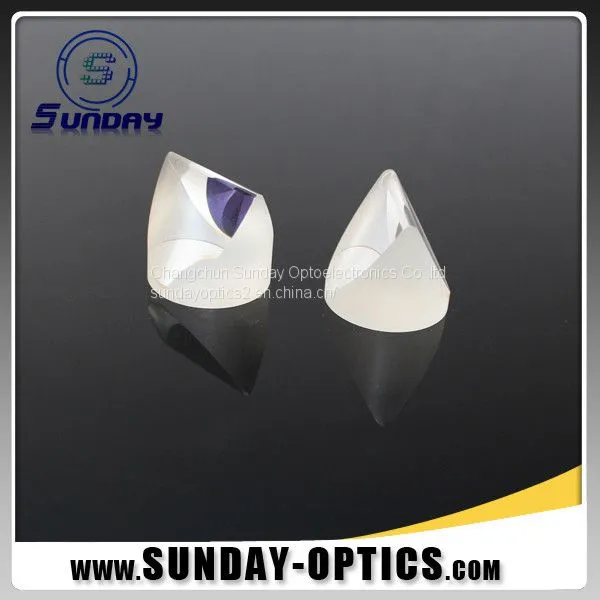

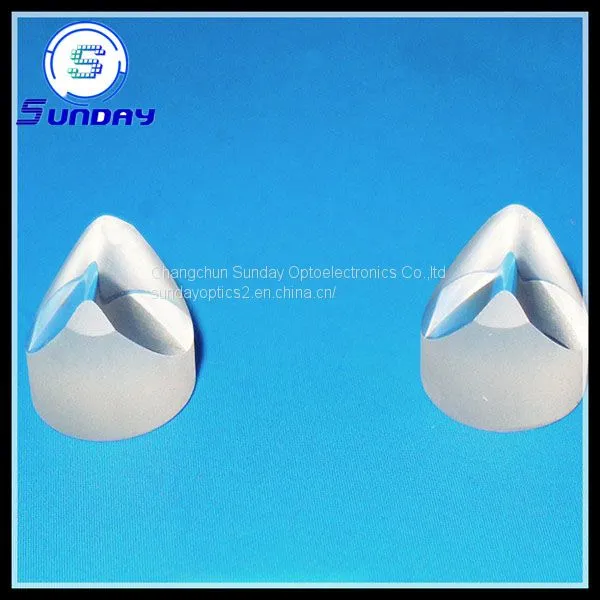

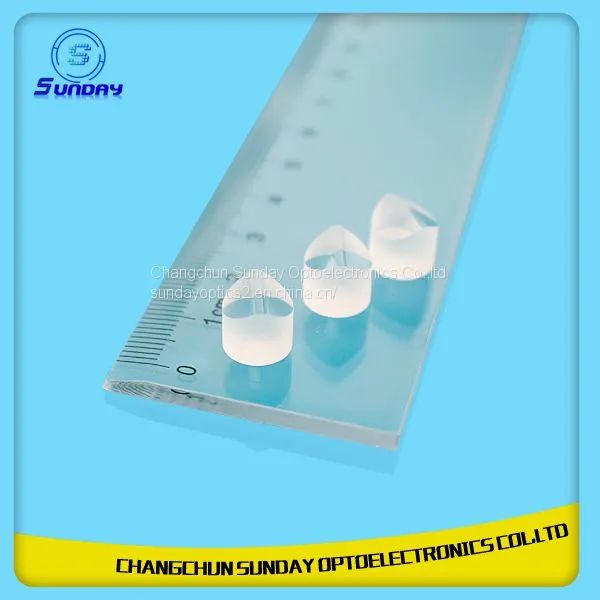

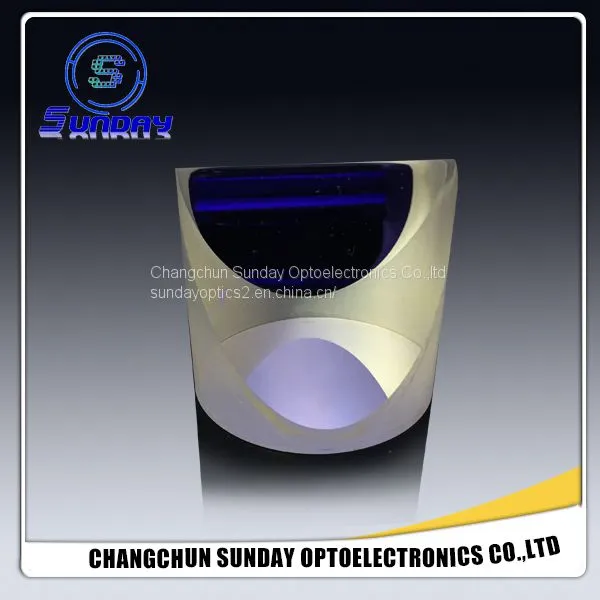

High Precison Glass Powell Prisms Bk7 k9
US$ 12 - 30
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUNDAY
Place of Origin:
China
Model Number:
SDF
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
4 days
Related Products
-
45degree Laser Powell Prisms for Laser Line ModuleUS$ 12 - 30MOQ: 3 Pieces -
90degree Powell Prisms Lenses StockUS$ 15 - 30MOQ: 5 Pieces
-
110degree Powell LensesUS$ 15 - 30MOQ: 5 Pieces
-
Bk7 Glass Powell LensesUS$ 12 - 30MOQ: 5 Pieces
-
k9 Glass Powell Lenses for Laser LineUS$ 12 - 30MOQ: 5 Pieces
Brand Name
SUNDAY
Place of Origin
China
Model Number
SDF
Material
Glass
Usage
Other, laser
Shape
Aspheric
Structure
Plano-convex
Powell Lens
The Powell Lens is one kind of aspheric cylinder lens, which can transform laser beam into a uniform straight laser line.
By using Powell Lens, you will get more even energy distribution along the laser line than using the rod lenses and lenses.
At present our Powell lens are available in fan angles of 3degree to 120degree.The optical line generator lens is optimized for a Φ0.8mm, Φ1mm,Φ2mm,Φ3mm,Φ5mm and Φ10mm input laser beam diameter. Using this design will result in an impressive, even distribution of energy along the length of the line. These lenses offer excellent overall stability and line quality. They outperform cylindrical lens that generate Gaussian beam profiles with hot-spot center points and fading edges. Originally designed for laser line generators, they are now offered uncounted for a variety of custom applications including use in alignment, machine vision systems, construction and process control.
The Powell Lens can be widely used in alignment, machine vision systems, construction and process control fields. At present our Powell Lens are available in a variety of fan angles as following.
| Fan angle | Materials | Wavelength(nm) | Input beam(mm) |
| 5° | BK7 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 10° | BK7 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 30° | BK7 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 45° | SF6 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 53° | BK7 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 60° | SF6 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 70° | SF6 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 85° | SF6 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 90° | SF6 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 110° | SF6 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 120° | SF6 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
