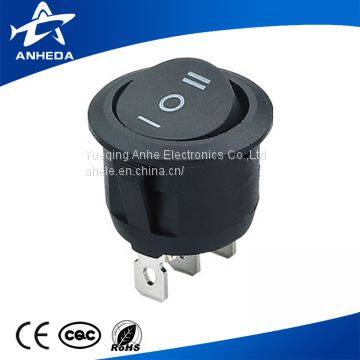

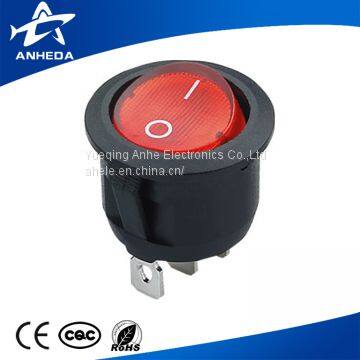

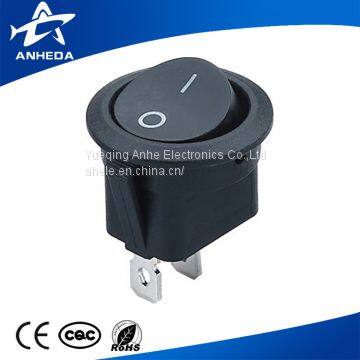

Help CenterON/OFF Illuminated Round Rocker Electric Switch T85 for Coffee Machine and Socket
Related Products
-
Illuminated Round Boat Electronics Rocker Switch Hidden Camera Light Switch T85 With LED IndicatorUS$ 0.15 - 0.2MOQ: 100 Pieces -
High Quality 20a 125v 16a 250v ac Kcd4 Hy12 Red Black Rocker Switch T85US$ 0.15 - 0.2MOQ: 100 Pieces
-
Best Products 12mm IP67 2 Pins Teraminals Ring Illuminated Waterproof Stainless Steel Metal Push Button SwitchUS$ 0.6 - 3MOQ: 100 Pieces
-
CE RoHS 19mm Circle Illuminated Spdt Latching Stainless Steel Push Button Switch With SymbolUS$ 0.6 - 3MOQ: 100 Pieces
-
KFC 7*7 6 Pins Self-locking&non-lock Small Plastic Electronic Switch Tact Switch Push Button SwitchUS$ 0.015 - 0.1MOQ: 1000 Pieces
1) We have CE,RoHS,CQC for rocker switch.
2) Switch electrical lifetime above 10,000 cycles.
3) R & D team for Automation, mould & new product.
4) Automation systems.
5) Mould developing systerms.
6) New item developing according to your samples or drawings.
IQC, IPQC, PQC, OQC. Inspect for supplied material, production process and final product, including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. All elated raw materials are inspected as Rohs requires.
| Specification of Rocker Switch | |||
| Rating | 16A/250V AC, 20A/125V AC | ||
| Rated Load | 2/8A 250V AC | ||
| Contact Resistance | ≤50MΩ | ||
| Dielectric Intensity | ≥1500V AC/min | ||
| Withstand Voltage | 1500V AC/min | ||
| Temperature | -25~85°C | ||
| Insulation Resistance | ≥100MΩ | ||
| Life | ≥10,000 cycles | ||
| Pins | 4 | ||
| Function | ON-OFF | ||
| Illumniated | 220V Neon Lamp | ||
| APPROVALS | |||
| CE | CQC | Rohs | |
Detailed Images
| Part | Material |
| Base Plastic | Nylon |
| Button Plastic | PA66/ PC |
| Terminal | Brass(tin plated) |
| Contact | Compound silver/ Copper |
| Spring | Tungsten steel |
| Waterproof Cap | PVC ( If you required) |
| Mount | Snap in |
|
Application: Small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc | |
| Terminal Type | ||||||||
| A | 4.8*0.8 | |
G | 6.3*0.8 | |
M | 2.5*0.5 | |
| B | 4.8*0.8 | H | 6*0.8 | N | 5.6*0.5 | |||
| C | 3*0.8 | I | 3.8*0.8 | P | 2.8*0.5 | |||
| D | PC | J | 2.7*0.5 | |||||
| E | PC | K | 6.3*0.8 | |||||
| F | 6.3*0.8 | L | ||||||
Standard export carton as per items acking.
DELIVERY TIME:3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
