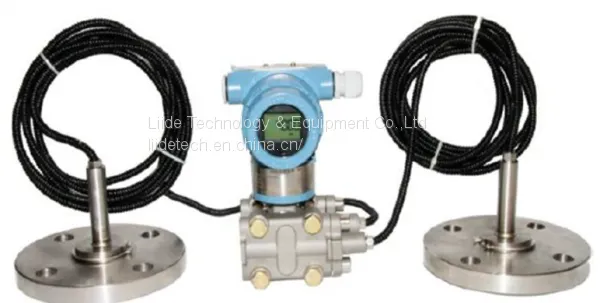

LS501R Remote Flange Level Pressure Transmitter
LS501R remote flange level pressure transmitter supports HART protocol and can measure differential pressure, liquid level, flow, etc. It can be widely used in the petroleum, chemical, electric power, water conservancy, metallurgy, heat....
Model & Ordering guide
LS501R Remote flange level pressure transmitter | |
LS501R |
Remote flange Level pressure transmitter |
Pressure type | |
H |
0.1%FS |
M |
0.2%FS |
S |
0.5%FS |
Pressure range | |
1 |
0-40kPa |
2 |
0-200Kpa |
3 |
20.68Kpa-2068Kpa |
4 |
68.9Kpa-6890Kpa |
5 |
206.8Kpa-20680Kpa |
Communication | |
H |
4-20mA,Hart |
Flange 1 | |
Diaphragm material | |
S |
316LSS |
H |
Hastelloy-C |
T |
Tantalum |
Process flange size | |
2 |
2",DN50 |
3 |
3", DN80 |
4 |
4", DN100 |
Flange rate | |
A1 |
ANSI/ASME B16.5 Class 150 |
A3 |
ANSI/ASME B16.5 Class 300 |
P1 |
PN10-18 |
P4 |
PN40 |
Flange material | |
C |
Cast steel |
S |
Stainless steel |
Flange mounting type | |
L |
Left size, high presure |
R |
Right size, high pressure |
B |
Bottom |
Capillary length (m) | |
01 |
1 meter |
02 |
2 meter |
03 |
3 meter |
04 |
4 meter |
05 |
5 meter |
06 |
6 meter |
07 |
7 meter |
08 |
8 meter |
** |
others , please write directly |
Flange 2 | |
Diaphragm material | |
S |
316LSS |
H |
Hastelloy-C |
T |
Tantalum |
Process flange size | |
2 |
2",DN50 |
3 |
3", DN80 |
4 |
4", DN100 |
Flange rate | |
A1 |
ANSI/ASME B16.5 Class 150 |
A3 |
ANSI/ASME B16.5 Class 300 |
P1 |
PN10-18 |
P4 |
PN40 |
Flange material | |
C |
Cast steel |
S |
Stainless steel |
Flange mounting type | |
L |
Left size, high presure |
R |
Right size, high pressure |
B |
Bottom |
Capillary length (m) | |
01 |
1 meter |
02 |
2 meter |
03 |
3 meter |
04 |
4 meter |
05 |
5 meter |
06 |
6 meter |
07 |
7 meter |
08 |
8 meter |
** |
others , please write directly |
Display | |
A |
0-100% Analog display |
C |
LCD display |
E |
LED display |
N |
No display |
Explosion proof | |
DC |
Ex d IIC T4 |
IA |
Ex ia IIC T6 |
NA |
Without explosion proof |
Housing material | |
A |
Aluminum |
S |
Stainless steel |
Electrical connection / Conduit entry size | |
N2 |
1/2NPT |
M2 |
M20*1.5 |
ET |
Explosion proof wiring terminal |
