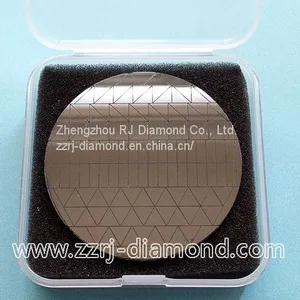

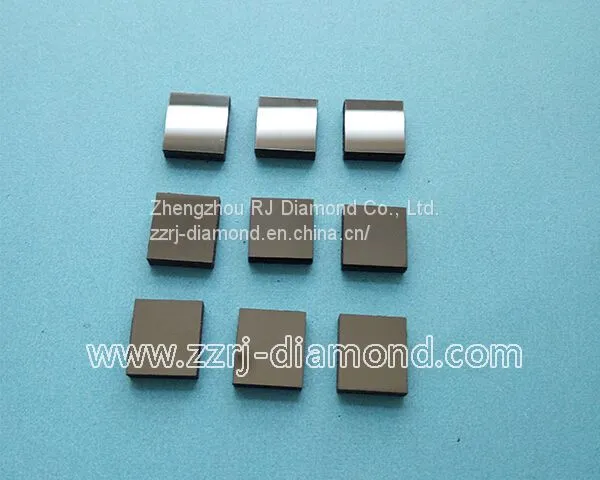

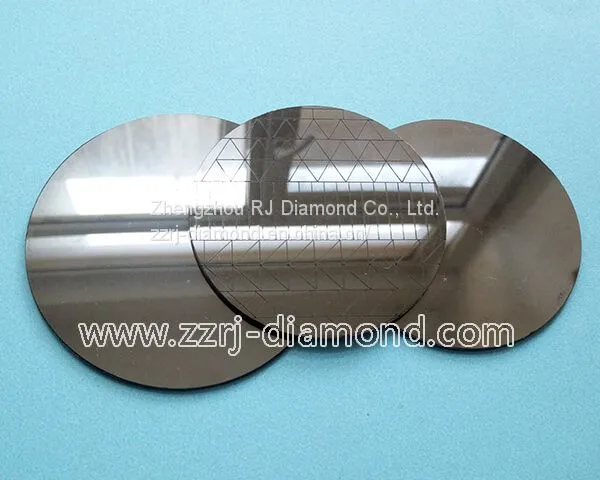

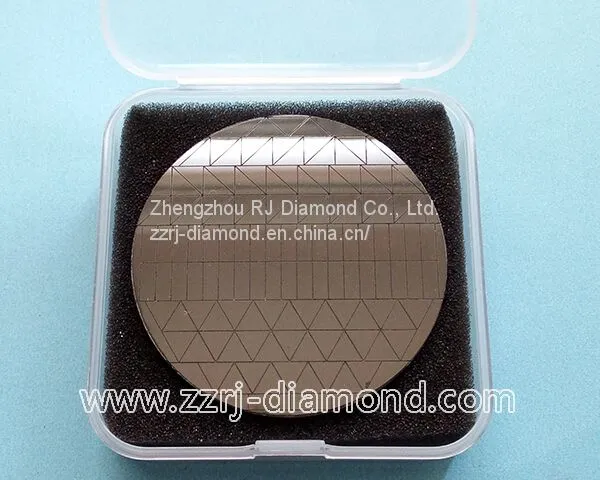

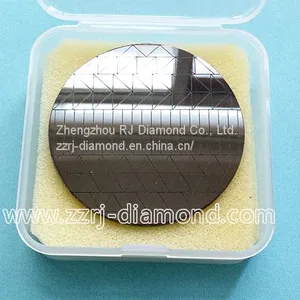

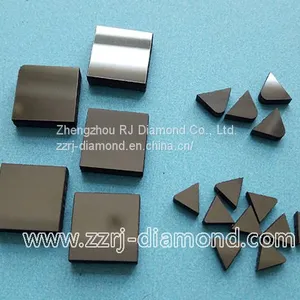

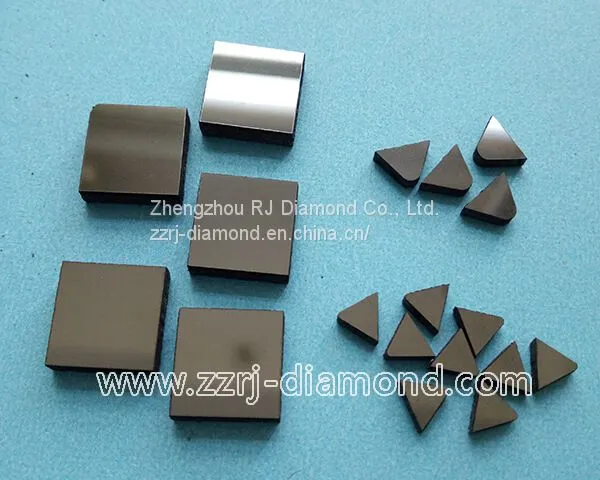

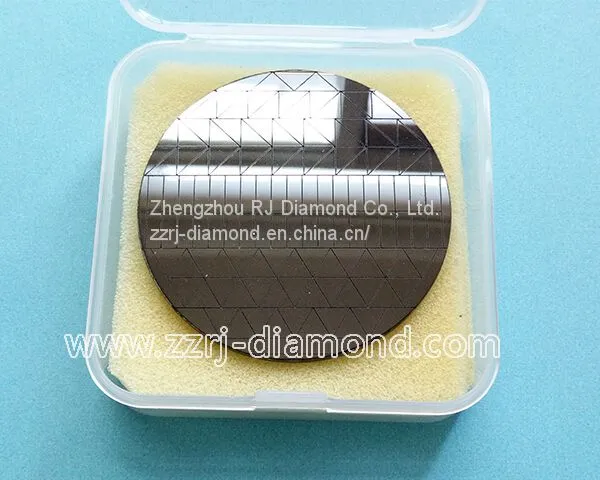

The standard shape of RJ PCD Cutting Tool Blanks is round. Other shapes, such as rectangle, triangle, square, semi-circle and so on, can also be customized per customers' requirements.
RJ PCD Cutting Tool Blanks are available in 5 micron, 10 micron, 25 micron, and so on, mostly used for high precision cutting of non-ferrous metal (copper, aluminum, alloy ), finish processing of non-metal materials (porcelain, synthetic fibre, graphite materials), and wear resistance materials for surveying instruments, steering equipment, and supporting tools etc.
Advantages of PCD tool blanks:
1. Long working life.
2. Uniform surface finish.
3. Reduces machine down time.
4. Highly improved work piece quality and excellent dimensional control.
5. Increase productivity.
6. High material removal rate.
7. Lower cost per piece.
8. The working life of a PCD cutting edge is usually 50 to 250 times longer than that of traditional sintered carbide cutting tools.
RJ PCD Cutting Tool Blanks Application Recommendation:
Grades |
Characters |
Applications |
Advantages |
W5 fine grain size |
1.Average grain size：5μm |
Aluminum, Brass/ Copper, Precious metals, Wood composites, Plastic |
Excellent surface finish |
W10 medium grain size |
1.Average grain size：10μm |
＜14% Si/Al alloys, Copper alloys, Graphite and graphite composites, Green ceramics and carbides |
Excellent resistance, good surface finish |
W25 coarse grain size |
1.Average grain size：25μm |
＞14% Si/Al alloys, metal matrix composites, Bi-metals(aluminum/ cast iron), sintered ceramics and carbides |
Long life, extremely high wear resistance |
