Help CenterHigh Power Led Beads CXB 3590 COB Led Grow Light At 3500K 36V 80CRI 137W Best Led Grow Lights
Related Products
-
Completed Kits CXA2 Studio LEDs CXB3590 - Ideal Holder 50-2303CR - MeanWell Driver - Radiator - Reflector Lens AvailableUS$ 4634 - 5636MOQ: 5 Pieces -
33w 36v 2700k - 5000k XLamp CXA1520 COB LEDs For Gobo Logo ProjectorUS$ 6.11 - 6.69MOQ: 5 Pieces
-
China Wholesale Led Grow Light CXB3590 Led Grow Light With Lowest Price.US$ 1 - 2MOQ: 2 Pieces
-
High Power Led Beads CXB 3590 COB Led Grow Light At 3500K 36V 80CRI 137W Best Led Grow LightsUS$ 34 - 36MOQ: 5 Pieces
-
5W AC DC Power Adapter LED Driver With Gooseneck Cable for Led Grow LightUS$ 2 - 5MOQ: 50 Pieces
Cree XLamp CXB3590 LED Arrays
Cree's XLamp CXB3590 LED array expands Cree's family of high-flux, multi-die integrated arrays, offering high performance in an easy-to-use platform. With XLamp LED lighting-class reliability, the CXB3590's uniform emitting surface enables both directional and non-directional lighting applications and luminaire and lamp designs. Available in 2-step, 3-step, and 5-step color consistency, and featuring a 30-mm optical source, the CXB3590 brings new levels of flux and efficacy to this form factor.
Features:
--30-mm optical source
--Mechanical and optical design consistent with CXA35 LED
--Available in 70-, 80- and 90-minimum CRI options
--Cree EasyWhite® 2-, 3- and 5-step binning
--85°C binning and characterization
--Extremely uniform color over viewing angle
--Top-side solder connections
--Thermocouple attach point
--NEMA SSL-3 2011 standard flux bins
--UL® recognized component (E349212)
CXB3590-0000-000N0HCD35G
Product Category: |
High Power LEDs - White |
Manufacturer: |
Cree, Inc. |
RoHS: |
Yes |
Package / Case: |
COB - Chip-on-Board |
Illumination Color: |
White (Warm White) |
Wavelength/Color Temperature: |
3500 K |
Luminous Intensity: |
- |
Color Rendering Index - CRI: |
80 |
Viewing Angle: |
115 deg |
Lens Color/Style: |
Tinted |
If - Forward Current: |
2.4 A |
Vf - Forward Voltage: |
36 V |
Power Rating: |
- |
Mounting Style: |
SMD/SMT |
Length: |
34.85 mm |
Width: |
34.85 mm |
Height: |
1.7 mm |
Maximum Operating Temperature: |
+ 85 C |
Minimum Operating Temperature: |
- 40 C |
Series: |
CXB3590 |
Packaging: |
Tray |
Brand: |
Cree, Inc. |
Color Temperature: |
3500 K |
Features: |
- |
LED Size: |

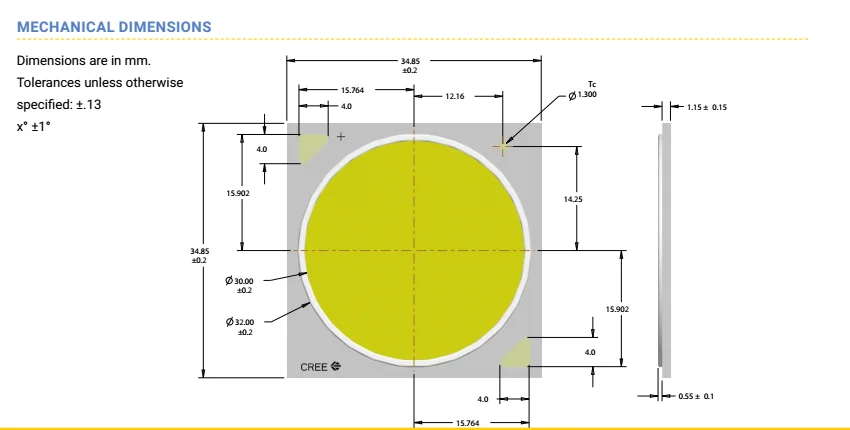

34.85 mm x 34.85 mm x 1.7 mm |
Lens Dimensions: |
30 mm |
Lens Shape: |
Round Flat |
Factory Pack Quantity: |
50 |
Type: |
XLamp CXB3590 LED |
Vr - Reverse Voltage: |
- |
Unit Weight: |
0.190479 oz |

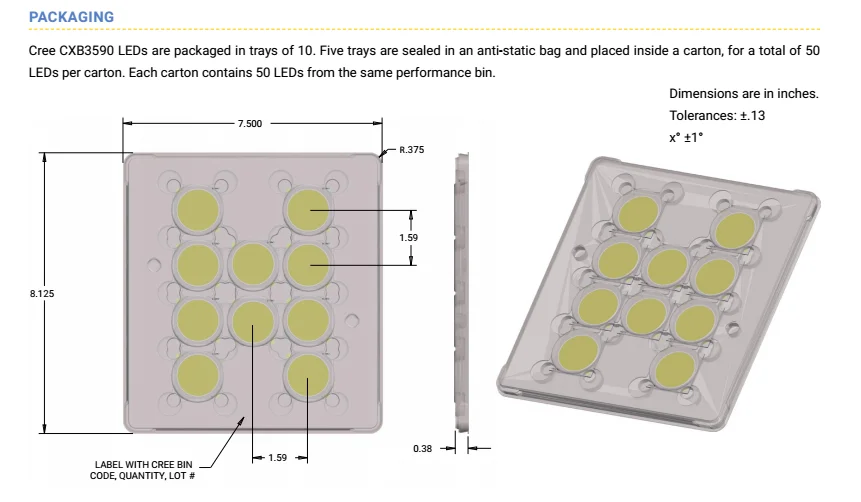

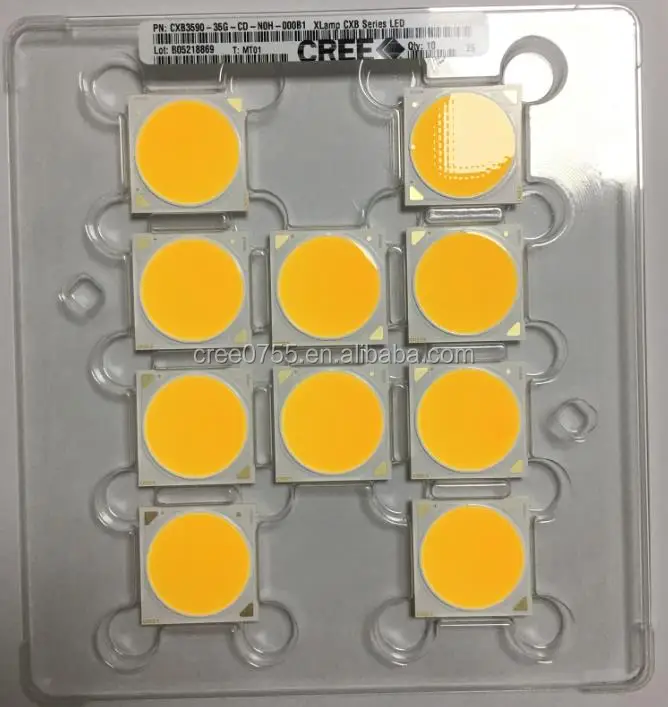

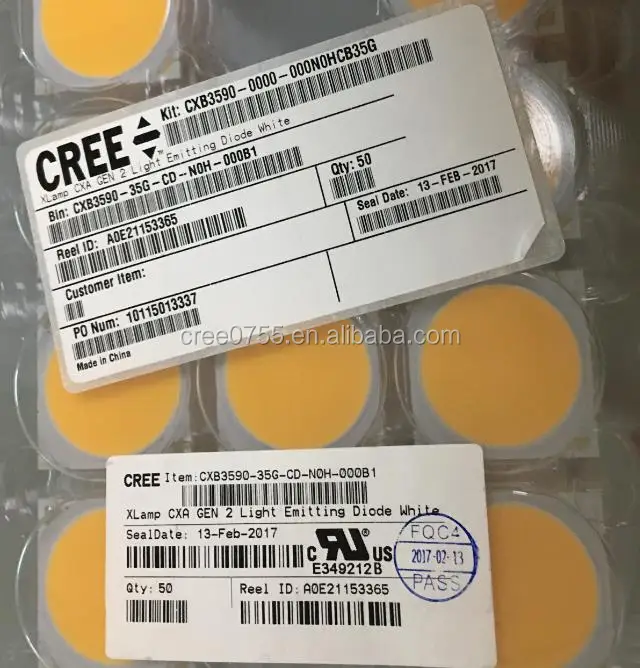

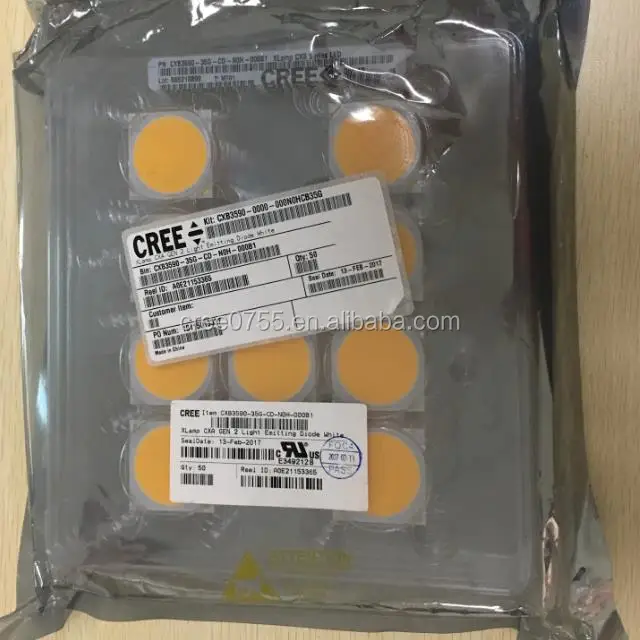

Original Cree Packing:
