Joint fillings dry mix gunite pump
shotcrete machine can use electric power or disel power,use air pressure to convey dry material from the machine through the hose to the nozzle where water is added.
Kelue brand is a well-known brand in China construction projects,tunnel projects,railway projects etc.And now Kelue concrete shotcrete sprayer already sold to many countries all over the world.

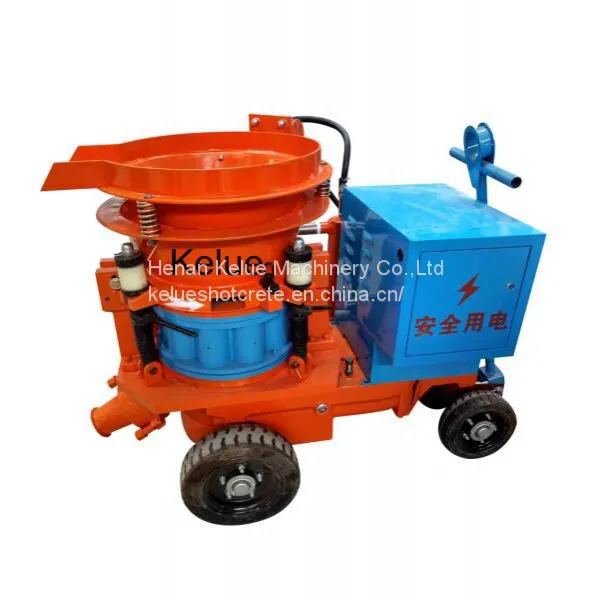

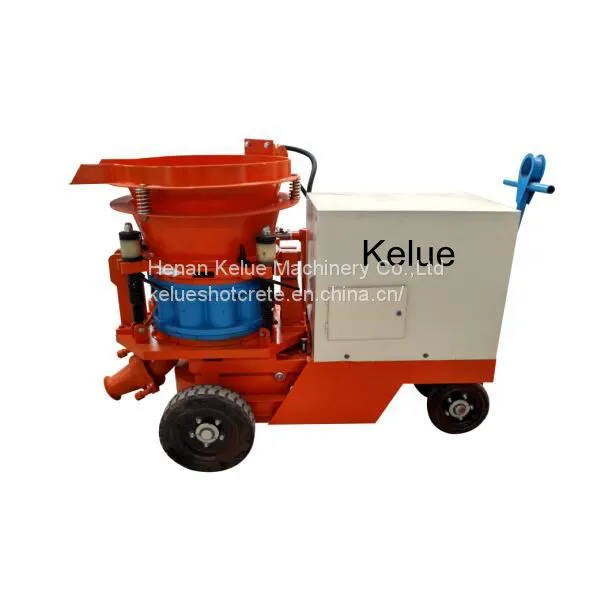

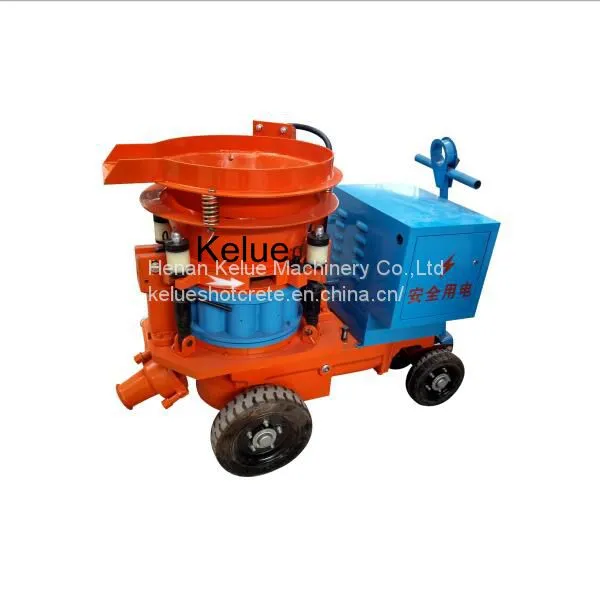

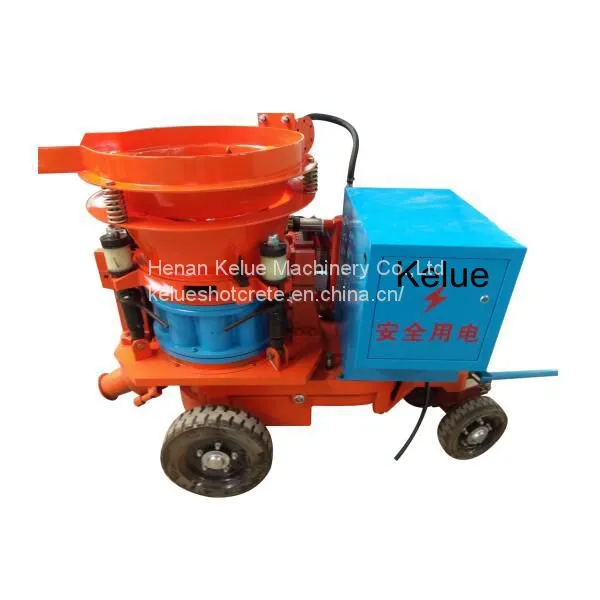

PZ-6 dry concrete spray machine is a device used for dry concrete shooting. This series shotcrete machine have the advantages of advanced technology, reasonable structure, stable performance, convenient operation and maintenance, long service life, etc.. It is widely used in mine, tunnel, culvert, subway, underground engineering and coal mine drainage tunnel construction work.
Joint fillings dry mix gunite pump
1. No blocking
2. Dustless.
3. Low rebound rate.
4. Components durable.
Joint fillings dry mix gunite pump
Model no |
PZ-6 |
PZ-7 |
Applicable materials |
Dry concrate |
Dry concrete |
Flow |
6m3/h |
7m3/h |
Pressure |
0.2Mpa-0.4Mpa |
0.2-0.4Mpa |
Power |
5.5KW/380V |
7.5KW/380V |
Voltage |
380V |
380V |
Transmission distance |
200M |
200M |
Transmission height |
20M |
20M |
Maximum aggregate size |
20mm |
20mm |
Outlet diameter |
51mm |
57mm |
Weight |
600KG |
850KG |
Dimension |
1520*820*1280MM |
1600*900*1370MM |
Water:ash |
≤0.4—0.45 |
≤0.4—0.45 |
Cement:stone |
1:3~1:5 |
1:3~1:5 |
Loading height |
1.1M |
1.1M |
Air consumption |
8-10m3/min |
8-10m3/min |
Joint fillings dry mix gunite pump
Joint fillings dry mix gunite pump
Joint fillings dry mix gunite pump
1.Lead time:3-7 days after payment, bulk order check with Monica.
2.Price term:EXW,FOB,CFR,CIF.
3.Payment term:T/T,irrevocable L/C at sight,Trade assurance.
If we have stock,100% T/T before delivery.
If bulk order no stock,30% T/T before production,70% T/T before delivery.
4.Delivery:Normally by sea.
If it is really urgent,air shipment or international
express (DHL,UPS,TNT,FEDEX)also workable.
We can arrange according to your request.
5.Packing:Wooden case
6.Warranty:12 months without wearing parts.
