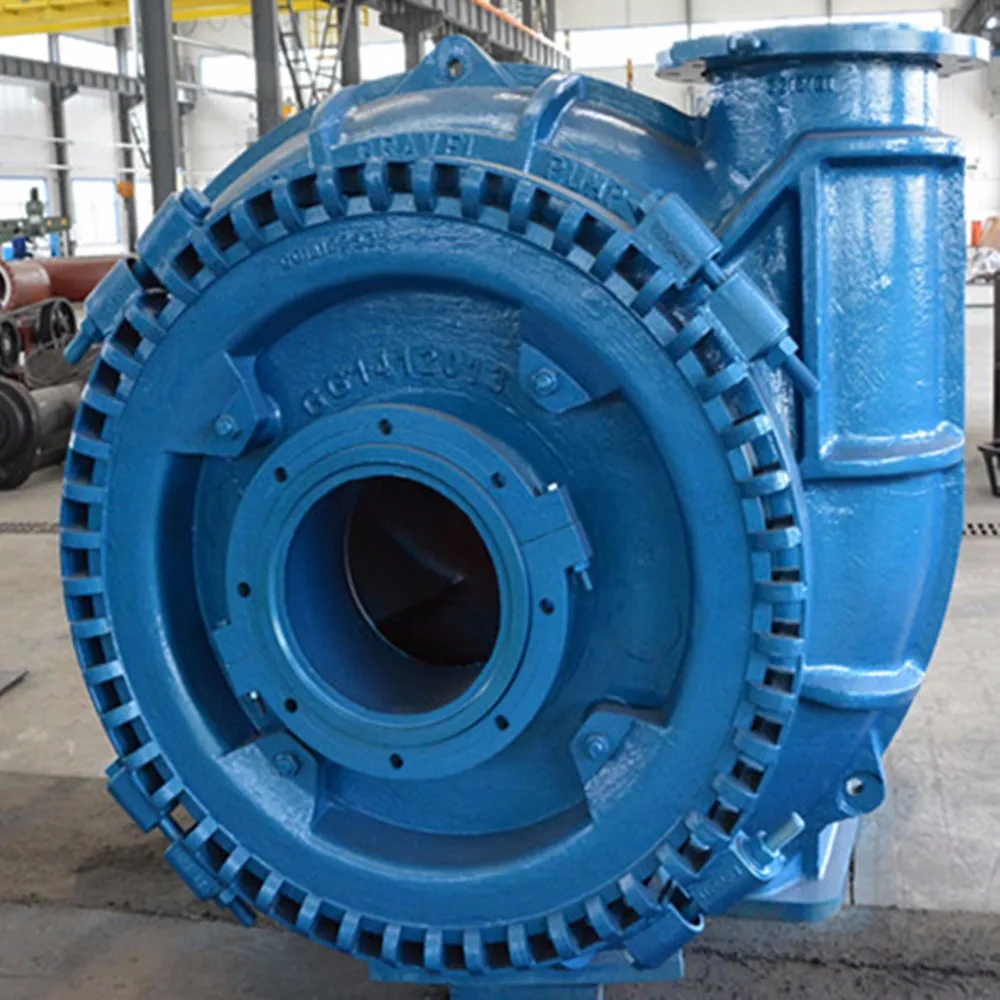

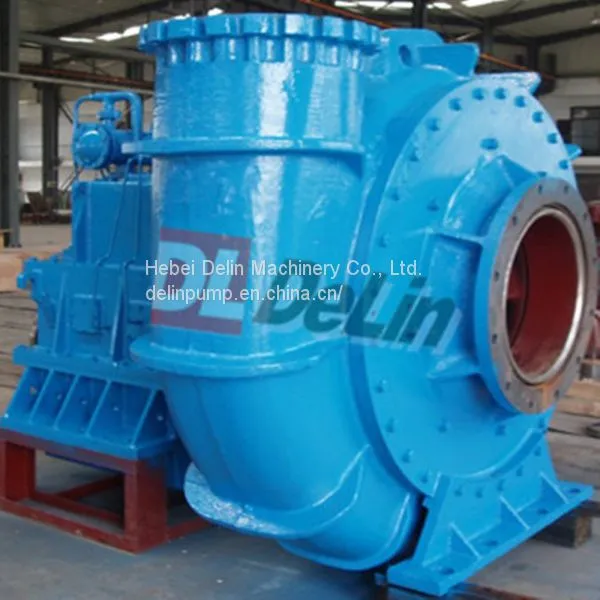

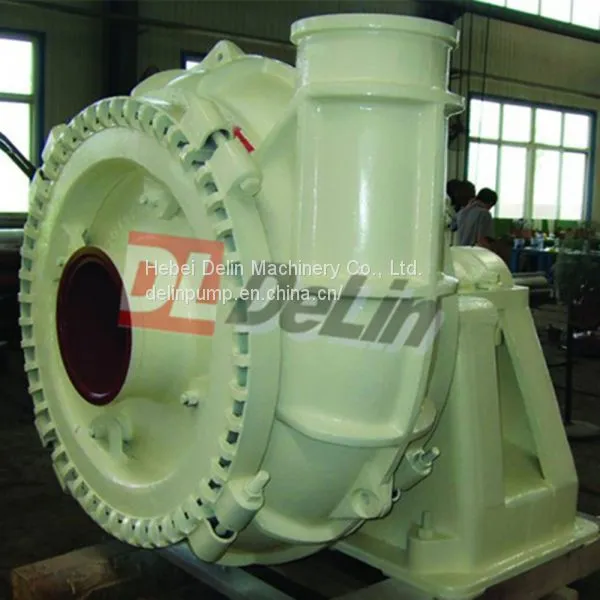

Centrifugal Submersible Dredge Pump Pond Gravel Water Pump

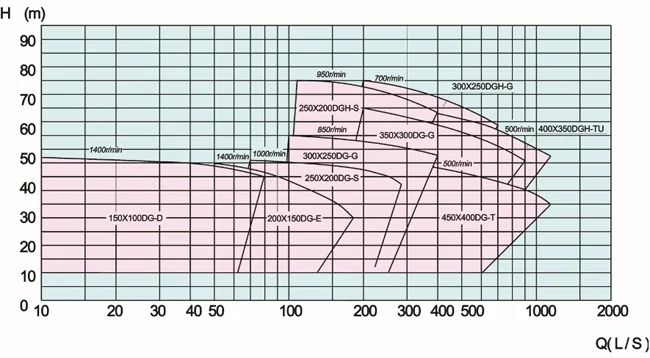

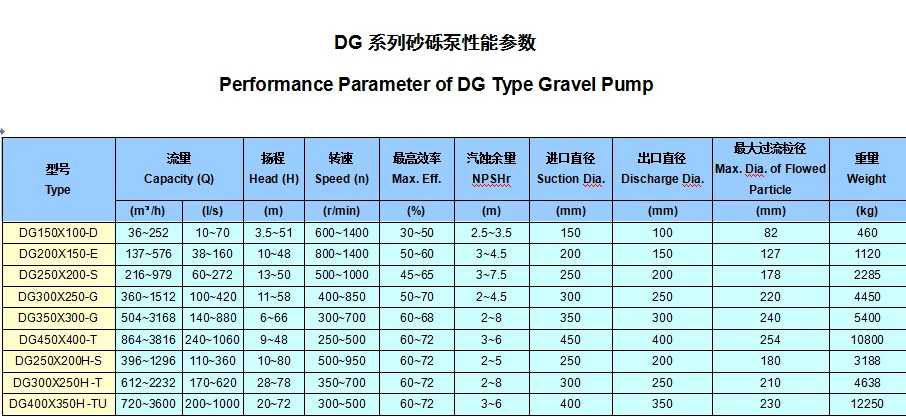

capacity:100~420l/s

head:11~58m

speed:400~850r/min

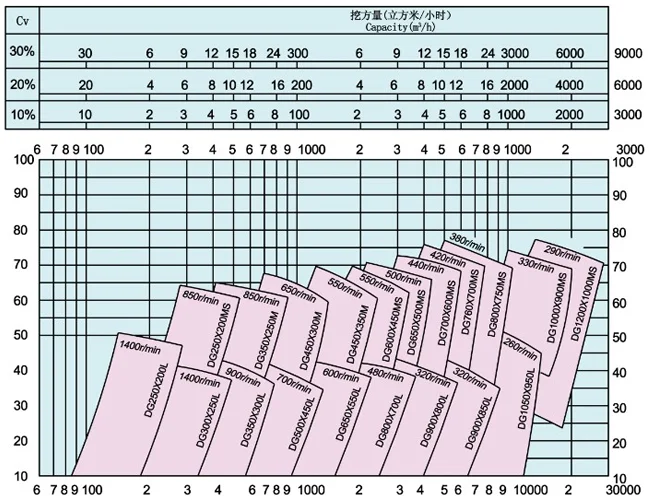

We provide DG series dredge pumps of different types: single stage, single suction or double casing or horizontal designs are all available. The diameter ranges from 100mm to 12000mm, flow rates 60-30000m3/h and heads 10-120m.

1. DG series dredge pumps are of single stage, single suction, horizontal structure. According to discharging pressure, they are classified into two categories: single casing pump and double casing pump.
   2. Double casing design enhances the safety reliability. If volute liner is getting close to being worn out, or split, there will be no water leakage inside pump house. Single casing dredge pump is of light weight and small volume. All of our DG series dredge pumps can be sump. The submerging depth can meet different requirements. Bearings use famous domestic or foreign brands. This series of dredge pump has long trouble free working time. 3. DG series dredge pump uses front dismantling structure, and is easy to stall, disassemble and repair. Different components have special dismantling tools.
   4. Our dredge pump adopts standard screw thread for the connection of impeller and shaft, and equipped with removing of piston ring for the ease of assembling the impeller.
