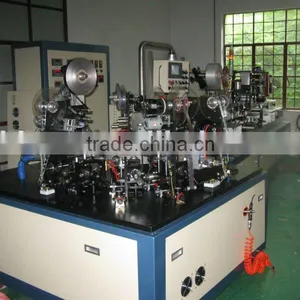

QY-120IV High speed Automatic wine cap seal making machine
- 50 Set / Sets per Month
- Shanghai
- Factory Sale High Speed Pe Plastic Disposable Elastic Bouffant Cap Making Machine
- Cheap Automatic Disposable Bouffant Cap High Quality Shower Cap Making Machine
- Factory Supply Attractive Price Disposable Non Wove Making Bouffant Head Cap Machinery
- Automatic Disposable Bouffant Cap Making Machine Shower Cap Making Machine
- Non-woven Bouffant Cap Making Machine Plastic Bottle Cap Sealing Machine
- Mob Cap Making Machine PP Bouffant Cap Machine Mop Cap Machine Fully Automatic Disposable
Product Details
Brand Name: | HG | Model Number: | QY120-IV |
Product Description
Specifications
1.automatic PVC wine cap seal making machine2. PVC or PVC/ALUMINUM COMPOUND
3. good quality
4. High speed
PVC wine cap seal making machine
Application:
The Wine PVC Cap Seal Making machine is suitable for making PVC caps or PVC/Alunimum cap seal for wine bottles.
Technical Parameters:
1-1 Output (depends on design of glue cap and quality of material)
1-1-1 Design production capacity of the machine 120 PCS/min
1-1-2 Fitted wire drawing system 90 PCS/min
1-1-3 Pneumatic gilding system fitted with skirt section 100 PCS/min
1-1-4 Gilding system fitted with top cap 100 PCS/min
1-1-5 Pneumatic washer system fitted with cap 100 PCS/min
1-1-6 Aluminum plastic compound 90 PCS/min

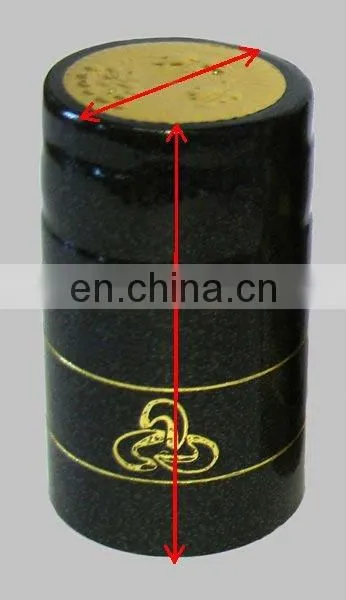

1-2 Specification of Glue Cap
1-2-1 Top diameter 27mm~36mm
1-2-2 Bottom diameter Maximum 40mm
1-2-3 Height 45mm ~80mm
1-2-4 Taper 1.5°~5°
1-3 Main Materials (PVC Thermal Shrink Film and Aluminum Compound Material)
1-3-1 Diameter of coil center 3" (76mm)
1-3-2 Outer diameter of coiled material Maximum 350mm
1-3-3 Width of coiled material Maximum 140mm
1-3-4 Thickness of PVC coiled material 0.06 mm ~0.08mm
1-3-5 Thickness of aluminum plastic compound material 0.06mm~0.1mm
1-4 Top Cap Material (Aluminum Foil or Aluminum Plastic Compound)
1-4-1 Diameter of coil center 3" (76mm)
1-4-2 Outer diameter of coiled material Maximum 250mm
1-4-3 Width of coiled material Maximum 40mm
1-4-4 Thickness of coiled material 0.05mm~0.06mm
1-5 Washer Material (PVC Hard-blank Plastic Film)
1-5-1 Diameter of coil center 3" (76mm)
1-5-2 Outer diameter of coiled material Maximum 250mm
1-5-3 Width of coiled material Maximum 40mm
1-5-4 Thickness of coiled material 0.10mm~0.15mm
1-6 Wire Drawing Material (PVC Thermal Shrink Film)
1-6-1 Diameter of coil center 3" (76mm)
1-6-2 Outer diameter of coiled material Maximum 250mm
1-6-3 Width of coiled material Maximum 140mm
1-6-4 Thickness of coiled material 0.08mm
1-7 Wire Drawing Compound Material (Aluminum Foil)
1-7-1 Diameter of coil center 3" (76mm)
1-7-2 Outer diameter of coiled material Maximum 250mm
1-7-3 Width of coiled material Maximum 15mm
1-7-4 Thickness of coiled material 0.08mm
Size of Machine: 4000x800x1400mm ; 1820x1585x1500mm; 1200x550x2100mm; 860x620x875mm
Weight of Machine: 3800kg
Power: three-phase380v, 13kw+11kw
Configuration:
Item Place of origin
1. Program controller Siemens
2. Frequency converter Siemens
3. Touch screen Kinco
4. Electronic cam Koyo of Japan
5. Color code switch (electronic eye) Dixell of Italy
6. Stepping motor Hangzhou, Zhejiang Province
7. Air switch Schneider of France
8. Contactor Schneider of France
9. Switch power supply Mean Well of Taiwan
10. Temperature controller Omron
11. Heat blower LEISTER of Switzerland
12. Solid-state relay Omron
13. Button switch Schneider of France
14. Aviation plug Cw (Gewiss) of Germany
15. Solenoid valve Festo/AirTac
16. Cam graduator Shandong
17. Vacuum pump South Korea
18. Major material sector cutting system (beveled edge cutting) 1 set
19. Top cap stamping 1 set
20. Molded aluminum die with 1 specification (15) 1 set
Option:
Wire drawing system
Wash stamping system
Aluminum plastic compound glue cap system
