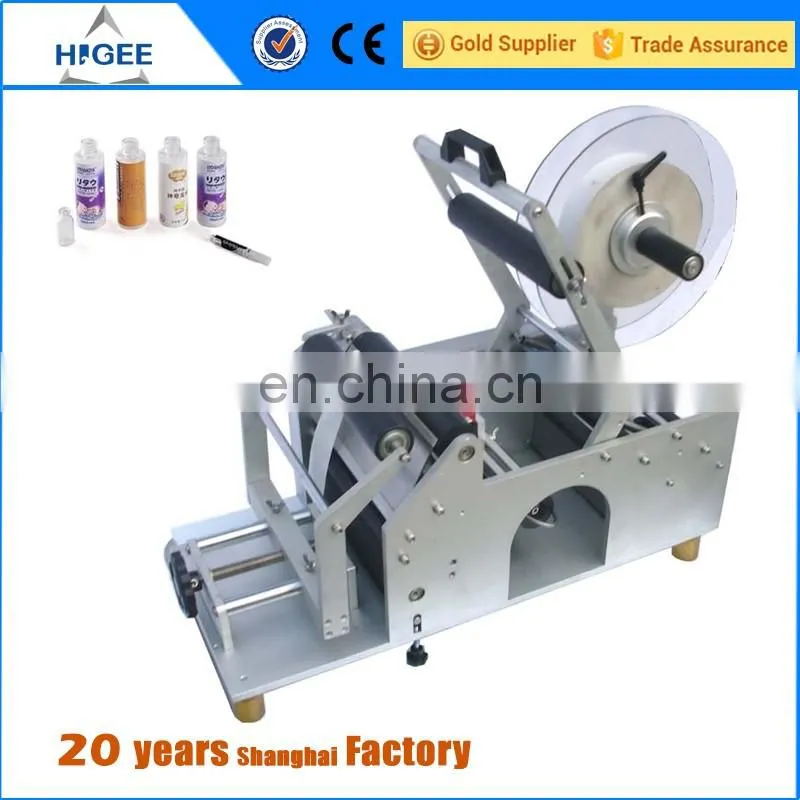

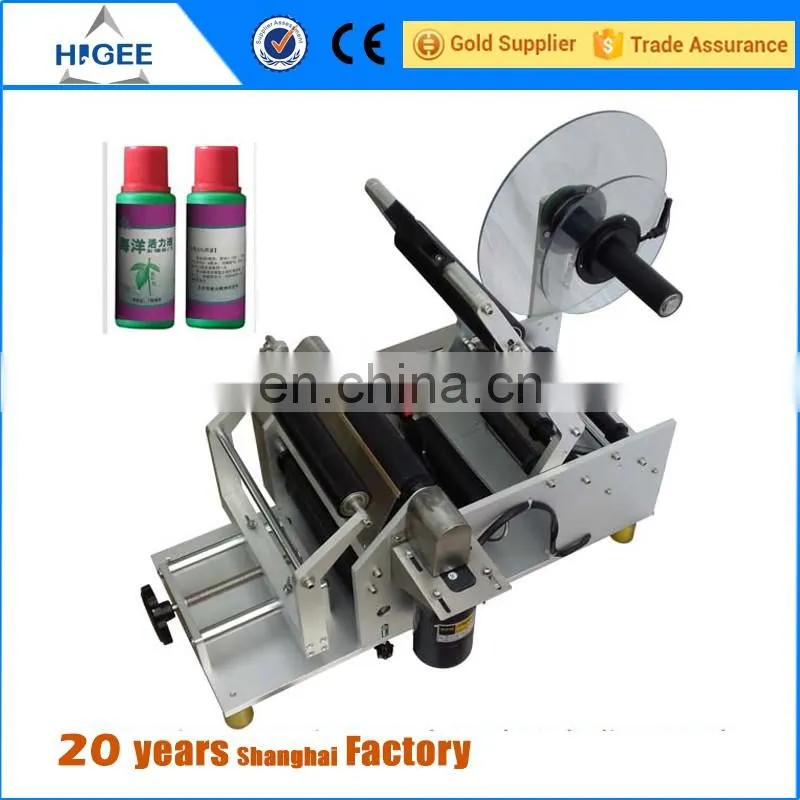

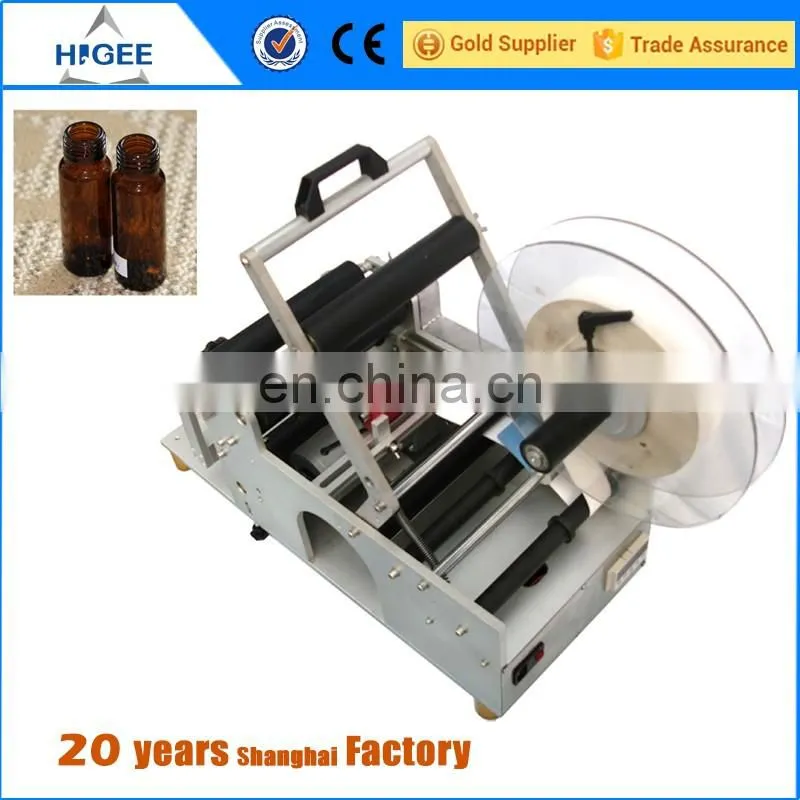

This labeling machine is designed especially for round tubes labeling. And the holding wheel diameter is customized based on your tube inner diameter.
Operation |
PLC control system makes labeling machine easy to operate |
Material |
Labeling machine’s main body is made of SUS304 stainless steel |
Configuration |
Our labeling machines adopt Japan motor driving and photo sensor and Taiwan control system |
Flexibility |
Client can chose to add printer and code machine; can connect with conveyer |
Name |
round bottle labeling machine semi automatic label applicator |
Labeling Speed |
20-50pcs/min(Depending on label length and bottle thickness) |
Height of Object |
30-200mm |
Thickness of Object |
30-90mm |
Height of Label |
15-140mm |
Length of Label |
25-300mm |
Label Roller Inside Diameter |
76mm |
Label Roller Outside Diameter |
300mm |
Accuracy of Labeling |
±0.5mm |
Power Supply |
220V 50/60HZ 0.2KW |
Size of Labeling Machine |
570(L)×250(W)×500(H)mm |
Weight of Labeling Machine |
25 |
1. Offer you professional labeling sulution according to your specific labeling requirements.
2. Supply you high quality labeling machine after placing order.
3. Try to make the delivery time as short to meet your needs.
4. Provide you lifelong free technial support after you receiving our machine.
After test the machine for you,we will send the whole machine by ship or other ways you want, which means you even have no need to reassemble the machine, just move to the factory, and press the switch button, it will work well.
We have professional English/Spanish/Japanese/Korean/Portuguese/French salesman, if any problem after you received you machine, we will go through with you all the time.
1. What kind of labeling machine do you have?
Dear Customer, we have automatic and semi-automatic labeling machine for round containers and flat surface. Some model for one label and others for two labels or even more. And we can design the machine according to your specific labeling situation.
Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.
2. Could we add coding machine to print date and lot No.?
Yes, you can chose to add coding machine to print the letters and No. you want.
It's hot stamp and can print at most three lines.
3.What information should we supply to check the suitable model?
Pls send us picture of your container and label, as well as the container and label size.
Pls also tell us what kind of label you use, if possible. (For exampe, self-adhesive, could glue, hot glue, etc. whether the label are in roll or pieces.)
Then, we'll let you check the suitable model.
4.what shall I do if our bags not that heavy, it may move right and left on the conveyor then make the labeling not that accurate?
Add the vacum suction under the conveyor which will ensure the accuracy.
5.What shall we do if we want to label flat products like A4 papers and bags, that have a lot?
We can add a paging machine, or feeder (called by some people), on the labeling machine, it will separate your products automatically and delivery one by one.
6.How to choose the correct labeling monitor?
And for the labeling monitor, if you have both transparent and non-transparent labels, then you have to take the universal monitor, cause only universal monitor can detect both transparent and non-transparent labels. Transparent monitor can only detect transparent labels, normal monitor only can detect non-transparent labels.
7.Is this machine suitable for different size of bottles?
The height of the mainboard can be adjusted freely. You can control the label position on the bottle easily.
8.What should we notice when we make the labels?
1.The maximum size of the label roller out side diameter is 320mm; the minimum of the label roller inside diameter is 76mm.
2. The direction of the labels: the image should be upward, if without coding the data and exp, the labels roll follow clockwise direction; if with coding, the labels roll should follow anti-clockwise direction.
