HIG high quality Shanghai factory automatic labeling pasting plane machine
- 30 Set / Sets per Month
- Shanghai
- T/T Credit Card
- Automatic Steam Shrink Machine for Bottle
- Shrink Sleeve Steam Tunnel Machine
- Steam Shrink Sleeve Label Machine For Bottle
- PVC Sleeve Label and PET Bottle Steam Shrink Tunnel Quality Choice Supplier's Choice
- PET Bottle Shrink Sleeve Steam Shrink Tunnel Quality Choice
- Automatic Heat Shrink Tunnel Machine
Product Details
Condition: | New | Application: | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Cylindrical objects: glass bottles, plastic bottles,etc | Packaging Type: | Other, peanut butter labeling machine |
Packaging Material: | Paper, Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V 50/60HZ | Power: | 1.1KW | Place of Origin: | Shanghai, China |
Brand Name: | HG | Model Number: | HAY200 | Dimension(L*W*H): | 2000x1100x1300mm |
Weight: | 150kg | Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
HIG servo motor economy automatic peanut butter labeling machine
Economy automatic peanut butter labeling machine
This HIG servo motor economy automatic peanut butter labeling machine is applicable for all kinds of flat objects such as food, chemical, pharmaceutical, cosmetic, stationery, CD disc, carton, box and various oil kettles etc. Economy automatic peanut butter labeling machine
Features
Operation | PLC control system makes labeling machine easy to operate |
Material | Labeling machine's main body is made of SUS304 stainless steel |
Configuration | Our labeling machines adopt well known Japanese, German, American, Korean or Taiwan brand parts |
Flexibility | Client can chose to add printer and code machine; can chose to connect with converyer or not. |
Technical Parameters
Name | automatic peanut butter labeling machine |
Labeling Speed | 60-300pcs/min |
Height of Object | 25-95mm |
Thickness of Object | 12-25mm |
Height of Label | 20-90mm |
Length of Label | 25-80mm |
Label Roller Inside Diameter | 76mm |
Label Roller Outside Diameter | 350mm |
Accuracy of Labeling | ±0.5mm |
Power Supply | 220V 50/60HZ 2KW |
Gas Consumption of Printer | 5Kg/m2(if add coding machine) |
Size of Labeling Machine | 2500(L)×1250(W)×1750(H)mm |
Weight of Labeling Machine | 150kg |
Operating flow chart

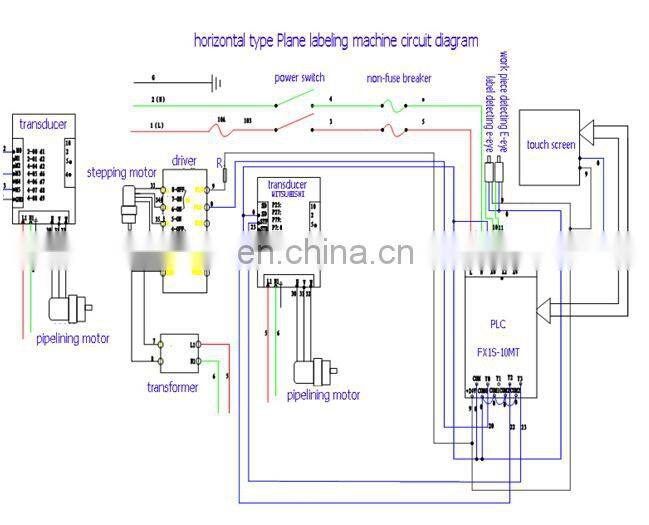

Circuit diagram
- Port: Shanghai
- Packaging details: wooden case export packing
- Delivery detail: Normally 12-15 days after receipt of payment
Higee Machinery- Labeling Machine Manufacture! Labeler solution expert!
We are not only automatic peanut butter labeling machine manufacture in providing different function Labeling Machine with good experience for many years, but also the professional solution provider to give the most suitable labeling proposal according to client’s product shape or size either regular or irregular, either use adhesive paper label or plastic sticker label. Our machine is mainly made of good quality SUS304 stainless steel and equipped with well known Japanese, German, American, Korean or Taiwan brand parts. Either the automatic or semi-automatic Labeling machine is smart and durable labeling equipment which is quite easy for your operation and maintenance. This peanut butter labeling machine is widely used in such industries as food, medicine, cosmetics, electronics, chemical etc.automatic peanut butter labeling machine
Trust us, Higee Labeling Machinery, Your good choice! Quick response to your request!
1. Offer you professional labeling sulution according to your specific labeling requirements.
2. Supply you high quality labeling machine after placing order.
3. Try to make the delivery time as short to meet your needs.
4. Provide you lifelong free technial support after you receiving our machine.
1. What kind of labeling machine do you have?
Dear Customer, we have automatic and semi-automatic labeling machine for round containers and flat surface. Some model for one label and others for two labels or even more. And we can design the machine according to your specific labeling situation.
Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.
2. Could we add coding machine to print date and lot No.?
Yes, you can chose to add coding machine to print the letters and No. you want.
It's hot stamp and can print at most three lines.
3. What information should we supply to check the suitable model?
Pls send us picture of your container and label, as well as the container and label size.
Pls also tell us what kind of label you use, if possible. (For exampe, self-adhesive, could glue, hot glue, etc. whether the label are in roll or pieces.)
Then, we'll let you check the suitable model.
