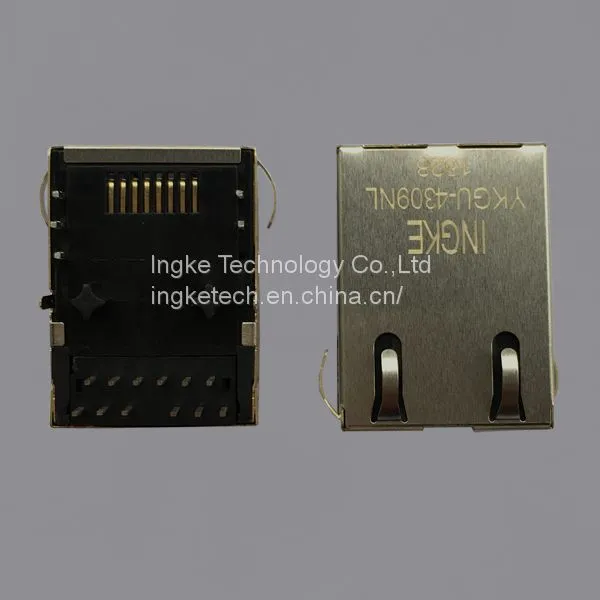

Ingke YKGU-4309NL 100% cross J0G-0060NL Puls integrated RJ45 jacks
Pulse Part Number : J0G-0060NL
Made in China: YKGU-4309NL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category: Modular Connectors / Ethernet Connectors
Packaging :Tray
Connector Type: RJ45
Number of Ports :1
Number of Rows :1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation: 90°Angle(Right)
Termination :Solder
LED Color: Green/Orange-Yellow
Number of Cores per Jack : 8
Shielding : Shielded, EMI Finger
Features: Board Guide
Tab Direction : Up
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40℃~85℃
Contact Finish Thickness : 30µin (0.76µm)
Flammability Rating: UL 94 V-0
Shield Material : Copper Alloy
Housing Material :Thermoplastic
Manufacturer: Ingke Technology Co.,Ltd
INGKE can provide 3D model for engineers' design
Our service:
1).Free sample is available!
2).OEM & ODM orders are welcomed.
3).We offer after-sale service for 8 years.
Our Advantage:
1).High-quality,OEM factory for RJ45 Connector more than 10 years.
2).Cost reduction, lead time within 1 week, FREE samples.
3).After sales services 24*7 to help you solve any kind of problems
Ingke Technology Mass production of the following models;
J0026D01 J0026D01B J0026D01F J0026D21E J0026D21F J0026D21G J0033D21 J0035D21B J0048D21M J0073D01B
J0C-0004 J0C-0006 J1006F01P J1006F21 J1012F01C J1012F21K J1012F21L J1012F21R J1026F01P J20-0017
J20-0019 J2039H3B J2039H3C J2042H3C J3006G21D J3018G21K J3026G21D J8064D649P J8064E62 J8064E64
J8064E66 J8064E68 JK0-0026 JP006821U JP011821U JP026821U JV006I21 JV026I21 J0C-0003NL JK0-0018NL
JK0-0026NL JK0-0014NL JK0-0016NL JK0-0017NL JK0-0020NL JK0-0025NL JC0-0063NL JG0-0045NL JG0-0051NL
JC0-0019NL JK0-0044NL JK0-0036NL J0B-0368NL J0B-0386NL JC0-0131NL JX20-0115NL J0B-0366NL J20-0115NL
JX20-0116NL JC0-0132NL J20-0116NL JC0-3022NL JC0-0319NL JC0-0133NL J0B-3448NL J00-0065 J0011D21
J0026D21B J1012F21C J8064D628A J8064D648A J8064D668A J20-0013 J20-0014 JG0-0032 JK0-0014 JK0-0016
JK0-0017 JG0-0023 JG0-0025 JC0-0031 JC0-0032 JC0-0033 JW0-0009 J00-0025 J00-0045 J00-0046 J00-0061
J00-0062 J00-0064 J0006D01B J0011D01 J0011D21E J0012D21 J0024D21 J0024D21B
