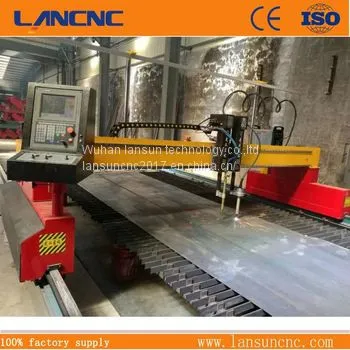

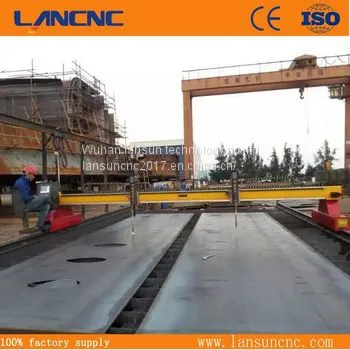

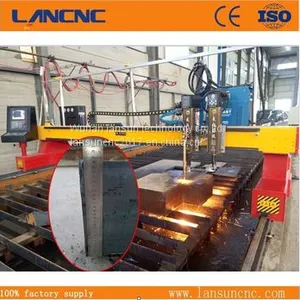

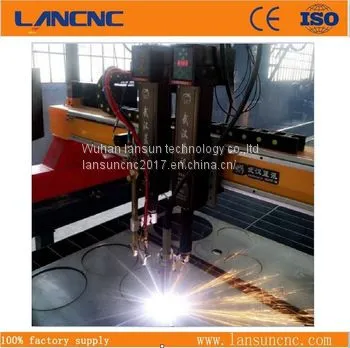

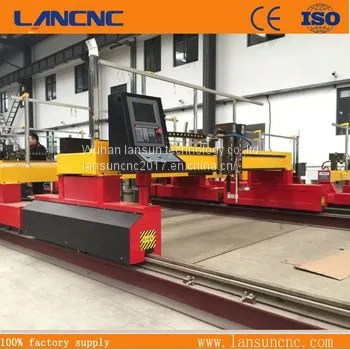

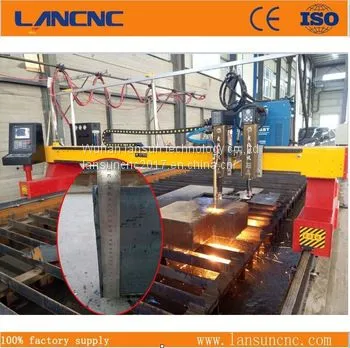

CNC Plasma Cutting Machines,steel Plate Plasma Cutting Machine

CNC Plasma Cutting Machines,steel Plate Plasma Cutting Machine thumbnail-1
CNC Plasma Cutting Machines,steel Plate Plasma Cutting Machine thumbnail-2
CNC Plasma Cutting Machines,steel Plate Plasma Cutting Machine thumbnail-3
CNC Plasma Cutting Machines,steel Plate Plasma Cutting Machine thumbnail-4
CNC Plasma Cutting Machines,steel Plate Plasma Cutting Machine thumbnail-5
CNC Plasma Cutting Machines,steel Plate Plasma Cutting Machine photo-1
CNC Plasma Cutting Machines,steel Plate Plasma Cutting Machine photo-2
CNC Plasma Cutting Machines,steel Plate Plasma Cutting Machine photo-3
CNC Plasma Cutting Machines,steel Plate Plasma Cutting Machine photo-4
CNC Plasma Cutting Machines,steel Plate Plasma Cutting Machine photo-5
US$ 5990 - 15990 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lansun
Model Number:
ZLQ-4A
Certification:
CE & ISO 9001
Contact Supplier Request Quote Chat Now
Wuhan Lansun Technology Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Lansun
Model Number ZLQ-4A
Certification CE & ISO 9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 month
Weight 2000kg
Dimension(L*W*H) 4*6*2
Voltage Machine 220V, plasma 380V
Rated Power 500W/800W/1000W
Our Company


20  years CNC cutting machine manufacturing;

9  years Alibaba supplier; 5000 +  customers Choice;
> Our own R & D team, customized according to your needs;
> China's famous brand, fast delivery,cheap price;
> Total quality management system.
Wuhan Lansun CNC cutting machine, To Be your reliable business partner!

Product Description
Cutting method Guide：

1、Flame cutting： Suitable for cutting carbon steel larger than 20mm；

2、Plasma cutting：Plasma cutting cost is 1/3~1/2 of flame cutting；So the plasma is suitable for cutting carbon steel within 20mm；
3、Stainless steel, aluminum or galvanized sheet etc materials suitable for plasma cutting。
Model
ZLQ-4A
Cutting Mode
Plasma
Flame
Flame and Plasma
Driving Mode
Servo motor or stepper motor , Dual-side
Cross beam Width(m)
4m~7m   or customize
effective Working Width(m)
 1m less than track width
Guide rail Length (m)
According to your cutting demands
effective working length (m)
2m less than guide rail length
Flame Cutting thickness(mm)
 5-200 (specific type up to 300)
Plasma Cutting thickness(mm)
According to the plasma generator, common 1-30mm
Number of Cutting Torch
At customers’ requests
Cutting Speed (mm/min)
50-8800
Running speed (mm/min)
12000
NC Controller
LANSUN or other China or import System you want
Plasma Power
100A ,120A , 200A ,300A ect .  China , USA brand
Programming software
China or Australia professional nesting software
Operation language
English or Chinese or Russian
Other Data
Working temperature
- 10°C -45°C
Humidity
Surroundings
Ventilation, no big shake
Power voltage
3×380V±10% or up by user’s local condition
Detailed Images

Machine body structure

1.Steel hollow beam design ensures good heat dissipation without deformation;
2. Box weldment structure process tempering ensures excellent rigidity and intensity;
3. Double drive adopts symmetrical structure.


Transmission
1. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed;
2. Gear box: SEW, high output torsion low noise.


Drive Model

Japan AC servo motor or Stepper motor Bi-side Driving.
Japan shimpo reducer or German technology planetary reducer.


GUIDE RAIL

Process mode: High precision grinder;
Longitudinal rack accuracy: 7 grade;
Unit length: 1.0M or 2.0M.

CNC System :

1. 10.4 inch LCD display;
2. USB port support, figures display;
3. Indicator lights showing working condition;
4. Operation menu displayed instantly on monitor;
5. Easy figures programmed directly.
Beijing or Shanghai or American Brand CNC system is oPtional


Plasma source option


Processing equipment
Packing & Delivery

Standard export wooden case

Delivery time : 3 working days

Product Tags: steel plate plasma cutting machine , plazma cutter cnc plasma , plasma cutting cnc
