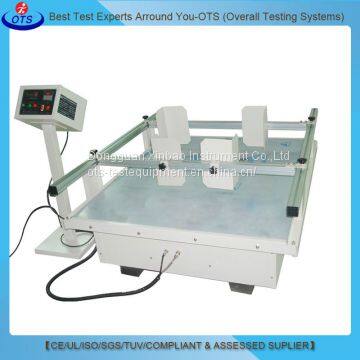

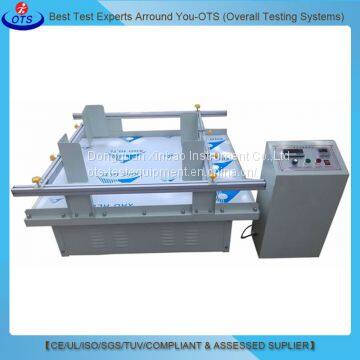

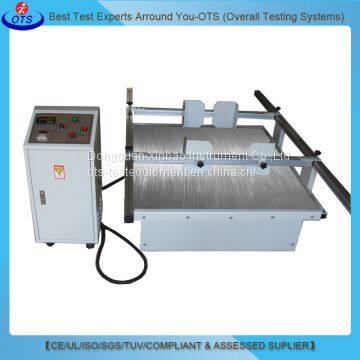

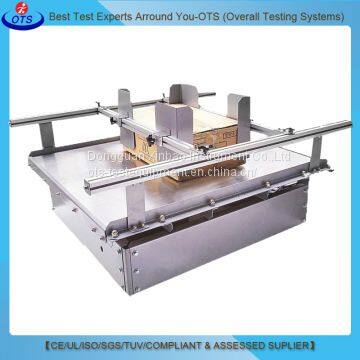

Model: XB-OTS-208A
Introductions:
This product is for a variety of packaging materials, PC boards, electrical products .
as well as the simulated transport vibration test of the packaged products, to assess the degree of vibration-resistance.... simulate the transport process Caused damage because of the vibration force, the test results can be used as the reference of the design packaging.
Features:
1. Low price, the price is only 10% of similar products in the United States;
2. Digital instrument display vibration frequency;
3. Synchronous mute belt drive;
4. The specimen is clamped with rail, easy to operate, safe;
5. The base of the machine adopts heavy-duty trench with damping pad, easy installation, smooth operation, no need to install the foot screw;
6. DC motor speed, smooth operation, strong load capacity;
7. Rotary vibration (commonly known as racing), in line with European and American transport standards;
Design standards: EN71 ANSI, UL, ASTM ISTA
Analog Transport Vibration Test Bench Test Standard Requirements for Equipment:
1. ISTA test standard is the American Transportation Association standard
2. ASTM test standards are American Materials Association standards
Two standard requirements for simulated transport vibration are:
1. Amplitude is 25.4mm (1 inch, fixed)
2. Frequency 1.5-5Hz (or 100-300 r / min adjustable)
3. The test basis is: T = 14200 / CPM (based on the total number of vibration is 14200 times)
ISTA / ASTM standards related test methods table:
| Test Speed (CPM) | Corresponding frequency (Hz) | testing time (M) |
| 150 | 2.5 | 95 |
| 180 | 3 | 79 |
| 210 | 3.5 | 66 |
| 240 | 4 | 60 |
| 270 | 4.5 | 53 |
| 300 | 5 | 48 |
Large scale Box Package Furniture transport simulation vibration tester
| Frequency range | 60~300RPM cycle/min (Adjustable) |
| Vibration mode | Rotary vibration (Vertical and horizontal) |
| Amplitude range | 25.4mm(1 inch) meet ISTA/EN71 |
| Max .Load | 60KG |
| Accuracy Grade | 0.5 |
| Simulation speed | 25 ~ 40km / h |
| Working Table size(L*W)(mm) | 1000*1200 mm |
| Digital speed | Accuracy is not greater than ± 3 rev / min |
| Work time setting range | 0~999H99M |
| Speed display accuracy | 1RPM cycle/min |
| Motor Power | 1HP |
| Max.current | 5A |
| Power | 1 phase 220V 50Hz/60Hz |
| Overall dimensions | 1255*1070*660 mm |
| Machine weight | 125kg |
| Environmental conditions | temperature: 5 ~ 40 ºC, relative humidity ≤ 85% |
| Speed control mode | DC speed control or AC frequency control |
| *** Standard: EN71,ANSI,UL,ASTM ISTA | |
OTS was established in 1978, with 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing
requirement. with offices in unrivaled quality advantage, dynamic management team with superb manufacturing
process,also the quality with the world norms: ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI,
AATCC, IEC, VDE...
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
Please feel FREE to contact us if you have any needs.
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention!
