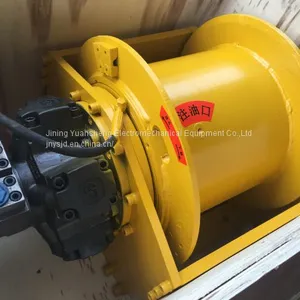

YS series hydraulic winch consists of the orbital motor, planetary gear reducer, brake and other components.Using threaded connection steel frame structure, equipped with shuttle valve, balance valve and other safe control system. The structure is compact, small footprint, it applies to ships, docks and other lifting cars and traction equipment.
Our advantage
1. cost saving
2. Easy to install and operate
3 .Top quanlity with competitive price
4. Reliable operation with little noise
5 .Low maintenance relieves your anxiety
6. Except for standard winches, we’re also able to provide tailored solutions to our customers.(Mounting frame is available on request.
Balance valve, shuttle valve, limit switch and other accessories are also available on request.)
Technical parameters
Model |
YS-5 |
YS-7 |
YS-10 |
|
Flow Rating |
L/min |
144 |
159 |
250 |
Pressure Rating |
MPa |
20 |
20 |
25 |
Max.Pull |
kN |
50 |
70 |
100 |
Max.Line Speed |
m/min |
25 |
20 |
23 |
Rope storage |
m |
50 |
50 |
50 |
Net Weight |
kg |
240 |
275 |
420 |
Wire rope diameter |
Mm |
17 |
21 |
23 |
Hydraulic Motor |
CC/R |
289 |
397 |
350 |
Used |
Carry and lift heavy goods |
|||
