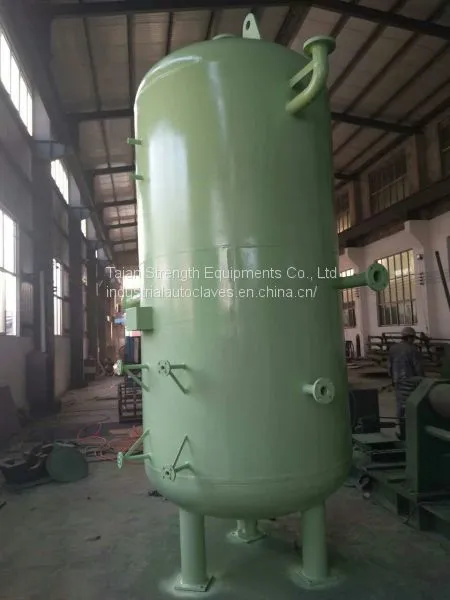

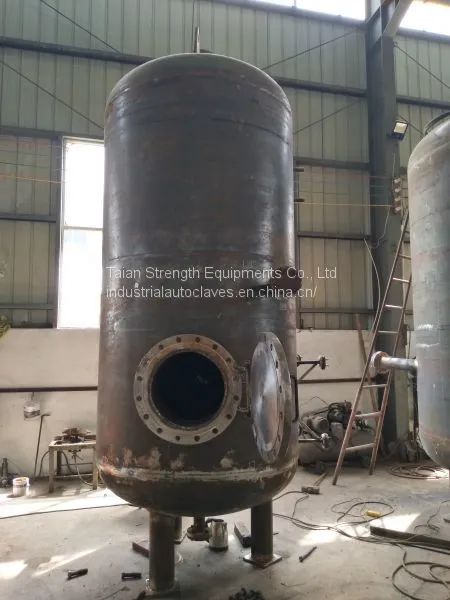

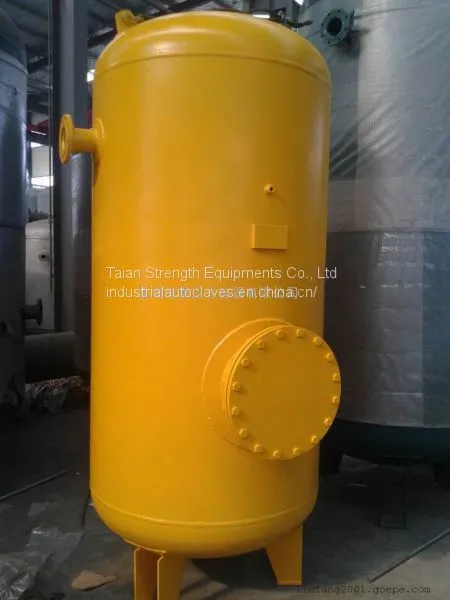

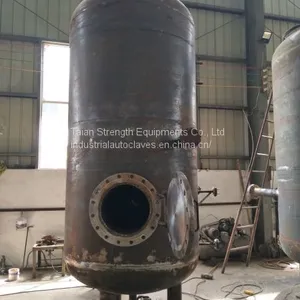

Help CenterQ345R Material Customized Vertical Gas Storage Tank
Related Products
-
Ellipsoidal Tank Dished HeadsUS$ 25 - 150MOQ: 1 Piece -
Hemispherical Dished HeadUS$ 25 - 150MOQ: 1 Piece
-
Industrial Pressure Vessel Automatic Operating Composite AutoclaveUS$ 20000 - 80000MOQ: 1 Set
-
Q345R Material Customized Vertical Gas Storage TankUS$ 3000 - 8000MOQ: 1 Set
-
Supply of Large Fiberglass Storage Tanks, On-site Wound Vertical Storage TanksNegotiableMOQ: 0 Set
Gas Storage Tank (also called compressed air storage tank, air tank, Co2 tank, Oxygen tank, Lpg Gas Tank or nitrogen tank, etc al) is widely used to store and transport gas which keep the stored gas in stable pressure. According to the different ability of bearing pressure, STRENGTH Brand gas storage tank is divided into has high pressure, low pressure and normal pressure storage tank. It can reduce pressure pulsation, the temperature of compressed air, the load on the filter and desiccant.
| Item | Capacity (m³) | Working Pressure (MPa) | Material | Dimensions (mm) |
| 1 | 5 | 0.8 | Q345R | DN1400x2750 |
| 2 | 10 | 1.0 | Q345R | DN1400x5980 |
| 3 | 10 | 1.0 | Q345R | DN1600x4400 |
| 4 | 15 | 1.2 | Q345R | DN2000x4400 |
| 5 | 20 | 1.8 | Q345R | DN2000x5650 |
High plastic toughness, uniform force and reasonable stress distribution.
Good corrosion resistance, to eliminate the stress of heat treatment.
Finite element analysis of fatigue design.
The perfect quality assurance system with advanced manufacturing process bring high quality products.
Varieties and different tanks meet customized requirement.
STRENGTH Equipments is the professional storage tank manufacturers who had been dedicated in supplying industrial autoclave, storage tanks and tank head products and solutions to worldwide customer over 20 years. We can produce up to 2,000mm diameter, 5,980mm length, 1.8 MPa pressure asme storage tanks depending upon thickness of material. Custom forms and dimensions for gas tanks are also available.
The gas storage tanks are widely used to storage LPG, compress air, CO2, Oxygen, Nitrogen, Hydrogen and other gases.
