Toilet Paper Machine Production Line
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DC
Place of Origin:
China
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen port
Delivery Detail:
60 days
Related Products
Brand Name
DC
Place of Origin
China
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
one year
Weight
6T
Dimension(L*W*H)
6x2.7x1.8m
Voltage
380V
Product Type
Toilet Tissue
Condition
New
Power(W)
8.5Kw
Processing Type
Paper Slitting and Rewinding Machine
I. Introduction

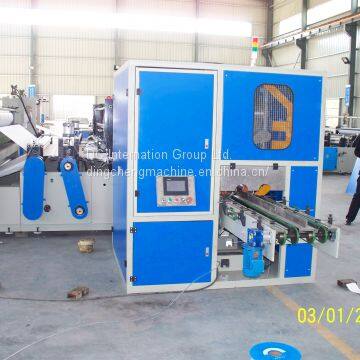

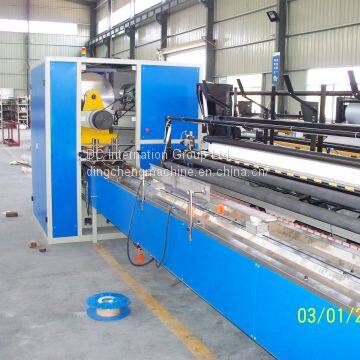

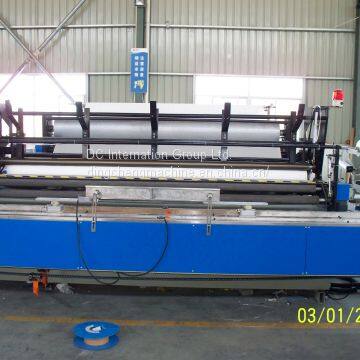

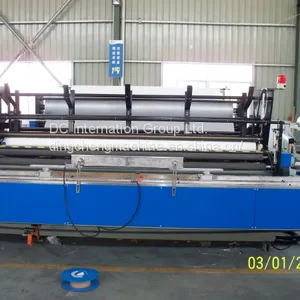

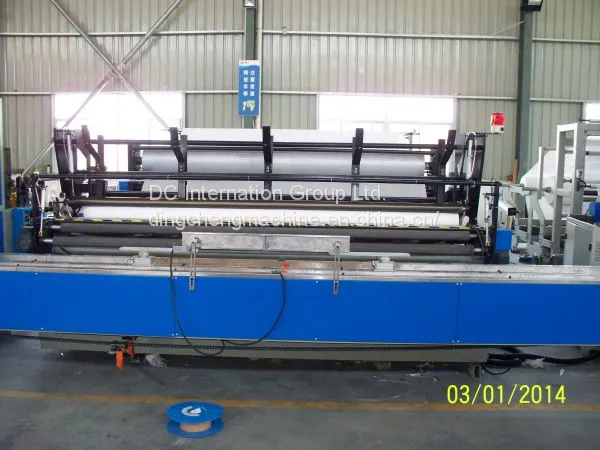

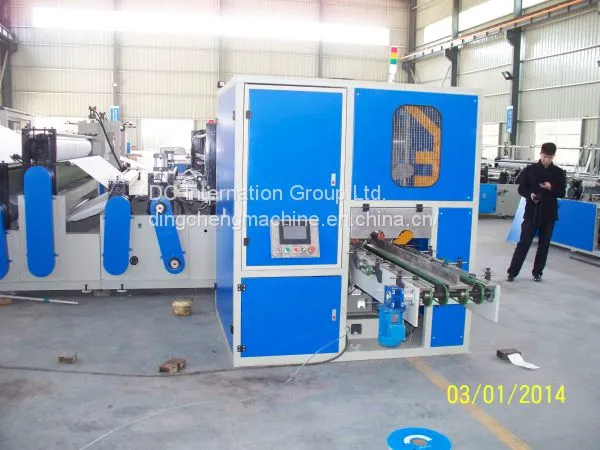

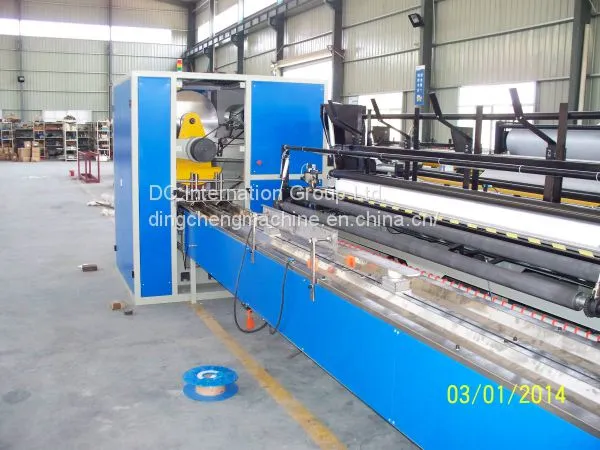

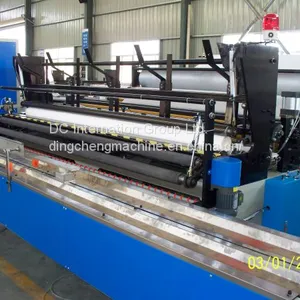

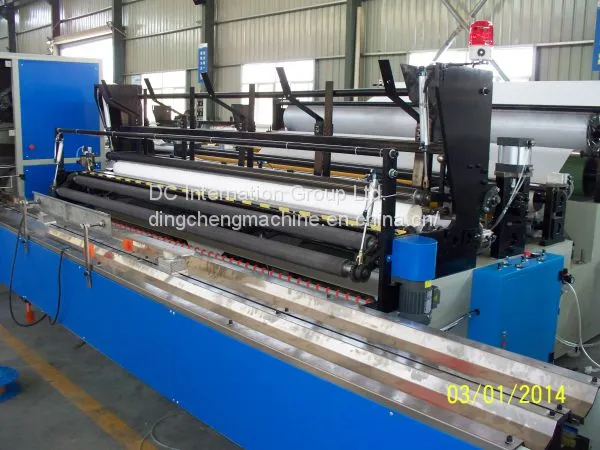

This machine is used to produce toilet paper rolls or kitchen towel rolls as the picture shown above.
II. Function and Features
Dot-By-Dot High-Speed Rewinding and Perforating Toilet Paper Machine is to perforate and cut the raw paper into various sizes according to the requests. The finished product is neat, in good order and with equal tension. It has the feature of compact structure, easy and stable operation, less electricity consumption. The highest production speed is 180-200m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.
This equipment can process raw paper of 1.2m (1092II type) and 1.75m (1575II type) in width and longer width like 1.9m (1760I type), 2.15m (2200IItype),2.45m(2500II type) 2.75m (2800II type) needs to be ordered.
This machine consists of raw material stands, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system. The production process is: unwinding —→ embossing —→perforating—→cutting.
1. This model is designed with computer control system, fully automatic in production process, the function is complete and the production speed is high.
2. It can automatically exchange the core, winds, sprays, the glue and seals without stopping the machine and also automatically raise and lower speed when exchanging the core.
3. When exchanging the core, the machine will be tight first and loose later to avoid dropping off the roll core.
4. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.
5. Automatic alarm for breaking off of paper.
6. Equipped separate tension control for each unwinding jumbo roll.
7. It is convenient to change the feature to produce any other core pipe winding.
III. Technical Parameter
1. Production speed：0-200m/min
2. Product size：￠80-￠150mm
3. Punching line distance：90-150mm (adjustable)
4. Power：8.5Kw (380V 50Hz) ( For your reference, it depends on the power situation in your place)
5. Overall size (L x W x H): 6x2.7x1.8m
6. Jumbo roll size: 1092II--1.3m, 1575II--1.7m
7. Weight: About 6T
Specification of Raw Paper
1. Width of raw paper: 1200mm-3200mm
2. Diameter of raw paper: 700mm-1200mm
3. Thickness of raw paper:14g/ m²-20g/ m²
4. Diameter of paper core：76mm
IV. Optional Equipment
1. Two embossing units can be equipped with 3 raw paper stands.
2. To equip three embossing units and 3 raw paper stands to have two patterns of embossing designs.
1. Two embossing units can be equipped with 3 raw paper stands.
2. To equip three embossing units and 3 raw paper stands to have two patterns of embossing designs.
3. The machine to produce paper width of 1.2m to 2.75m, and other longer than 1.8m machine should be ordered.
4. Single or double printing units.
V. Export Details
1. Delivery time: 35 days (It takes time to ensure the processing precision, assembling precision, etc. Of course, the delivery time can be discussed as the case may be.)
2. Load port: Xiamen port in Fujian Province
3. Packing: In standard export wooden cases
4. Container: 1 x 20 feet container (It depends on the quantity of the machines you buy ).
5. Machine installation and operation training: The seller should dispatch professional technicians and engineers to buyer’s plant to install the machine and train the workers. The round air ticket, accommodation and salary should be paid by buyer.
6. Warranty period: One year(Except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to solve any problem may occur.
7. Our company also provides the raw material to match with the machine.
