SkyRC 1/10 Cheetah 60A Sensored Combo Set

SkyRC Technology Co., Ltd.
SkyRC 1/10 Cheetah 60A Sensored Combo Set thumbnail-1
SkyRC 1/10 Cheetah 60A Sensored Combo Set thumbnail-2
SkyRC 1/10 Cheetah 60A Sensored Combo Set thumbnail-3
SkyRC 1/10 Cheetah 60A Sensored Combo Set thumbnail-4
SkyRC 1/10 Cheetah 60A Sensored Combo Set thumbnail-5
SkyRC 1/10 Cheetah 60A Sensored Combo Set photo-1
SkyRC 1/10 Cheetah 60A Sensored Combo Set photo-2
SkyRC 1/10 Cheetah 60A Sensored Combo Set photo-3
SkyRC 1/10 Cheetah 60A Sensored Combo Set photo-4
SkyRC 1/10 Cheetah 60A Sensored Combo Set photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SKYRC
Place of Origin:
China
Model Number:
Cheetah
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SKYRC
Place of Origin China
Model Number Cheetah
Motor Type DC Motor

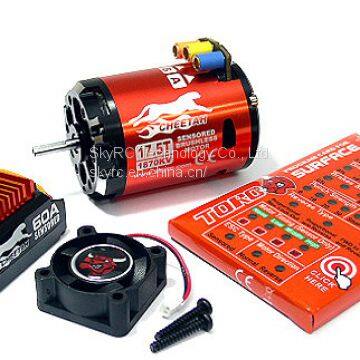

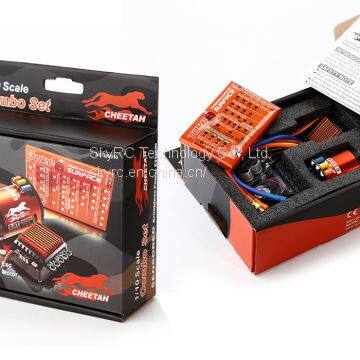

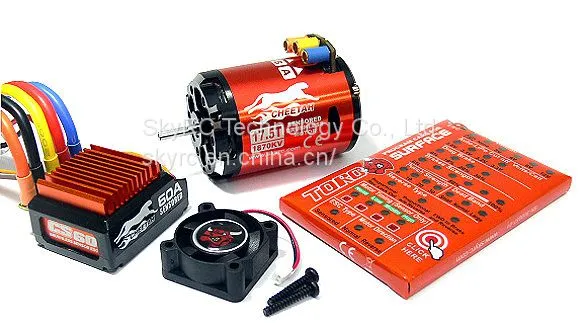

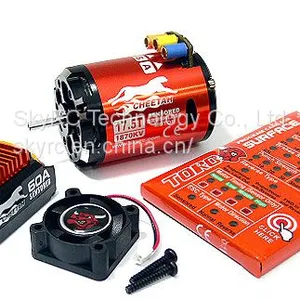

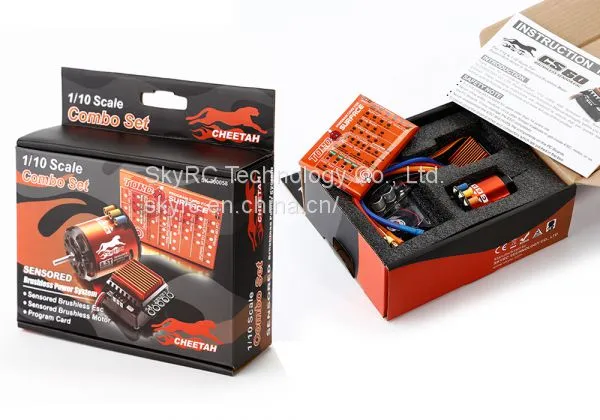

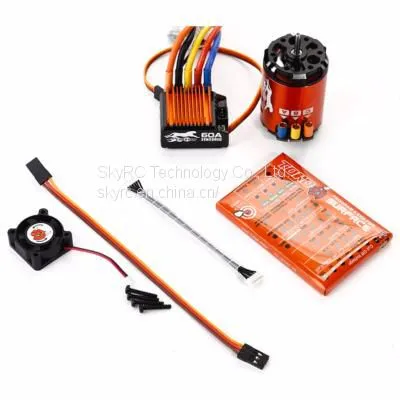

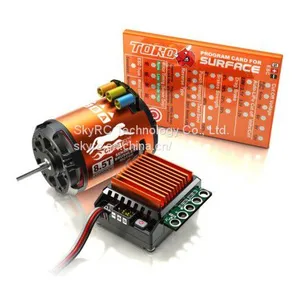

Cheetah 1/10th 60A Sensored Combo set is ready to run out of box,coming with Cheetah 60A Sensored ESC, Cheetah Sensored Motor and Program Card. This combo is perfect for 1/10th scale Car.
There are 5 kinds of motor KV which can meet your request for speed or torque. When you connect the ESC with the program card, you could tune and tweak all your favorite settings such as cut-off voltage, brake and punch strength, drag brake and other parameters that add up to an incredible RC driving experience.


It is designed for 1/10th and 1/12th scale car with the use of 2-3 cells LiPo battery and 5-9 NiMH battery. Equipped with 6V/3A BEC, it doesn't need a separate receiver pack. With Program Card, you could set cut-off voltage, brake and punch strength, drag brake and other parameters.






        Simply connect it to the Program Card, you could do ESC programming in a short time and get ready for next run.

Cheetah 1/10th 60A Sensored Combo set is available with five kinds of motors (8.5T 4000KV/ 10.5T 3250KV/ 13.5T 2590KV/ 17.5T 1870KV/21.5T 1600KV). You could mix and match gearing and number of cells that they are using to create a power system that can be mild or wild with any of the motors.

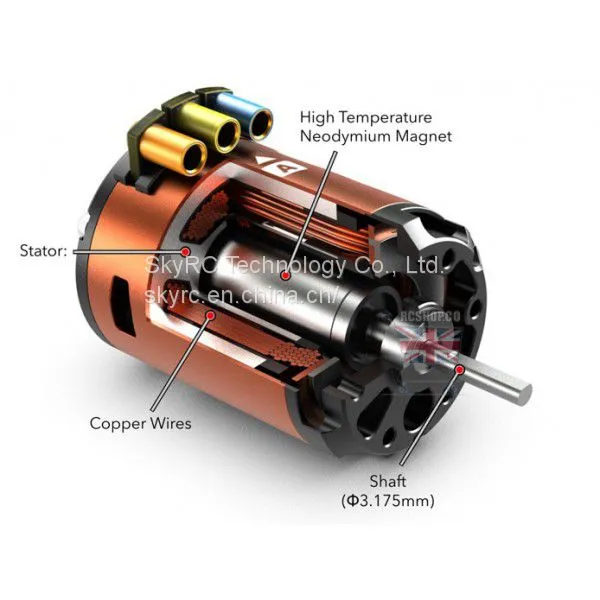

Product Watts Rotor (mm) KV (RPM/V) Weight (g) Shaft Diameter (mm) Resistance (mΩ) LiPo Touring Car 1/10 Medium Track Touring Car 1/10 Small Track CHEETAH 8.5T 400 12.5 4000 165 3.175 14.2 2-3S 6.4:1 7.1:1 CHEETAH 10.5T 300 12.5 3250 165 3.175 21.3 2-3S 5.6:1 6.3:1 CHEETAH 13.5T 240 12.5 2590 165 3.175 36.1 2-3S 4.8:1 5.5:1 CHEETAH 17.5T 200 12.5 1870 165 3.175 51.4 2-3S 4.0:1 4.7:1 CHEETAH 21.5T 150 12.5 1600 165 3.175 87.5 2-3S 3.5:1 4.2:1

＊The above suggestion is based on using 12.5mm rotor and esc without timing setting.








Mode

ESC

Motor

Program Card

SK-300058-01

Cheetah 10 S60A ESC

Cheetah 4000KV/8.5T/2P BL Motor

Y

SK-300058-02

Cheetah 3250KV/10.5T/2P BL Motor

Y

SK-300058-03

Cheetah 2590KV/13.5T/2P BL Motor

Y

SK-300058-04

Cheetah 1870KV/17.5T/2P BL Motor

Y

SK-300058-05

Cheetah 1600KV/21.5T/2P BL Motor

Y


Product Tags: SkyRC 1/10 Cheetah , Cheetah Combo Set , 1/10 Combo Set
