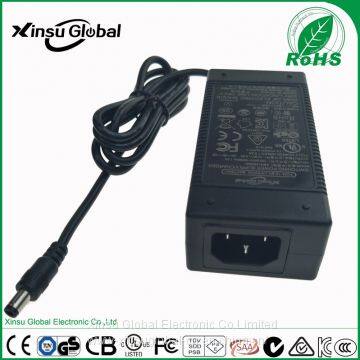

Product Describtion：72V 2.5A adapter
Product Electronics Parameter | ||
Product name |
GS/UL listed Table Top Switching Power Adapter 72Volt 2.5Amp 180W ac dc adapter |
|
Model number |
XSG7202500 |
|
AC input |
Input Voltage range: |
90~264Vac |
Reted input voltage: |
100~240Vac |
|
InputFrequency Range: |
47~62hz |
|
Input current max: |
3A |
|
Inrush current: |
35A Max/240V |
|
Efficiency: |
>88% |
|
No load input power |
||
Leakage current: |
||
DC output |
Output voltage: |
72V |
Output voltage tolerance: |
5% |
|
Rated output current: |
0~2.5A |
|
Output current: |
2.5A |
|
Ripple and noise: |
||
CV or CC |
Optional |
|
Current limited: |
Optional |
|
LED indicator |
Green color |
|
Protection |
Over current protection |
PASS |
Over voltage protection | ||
Short circuit protection | ||
Over Temp protection | ||
Environment |
Operating Temp: |
0℃~+45℃ |
Storage Temp: |
-30℃~+70℃ |
|
Relative Humidity: |
10%~90% |
|
Vibration and shock |
Meet MIL-STD-810D |
|
Safety |
Safety standard |
EN60950,EN61558,EN60335 |
EMC/EMI |
Meet FCC CLASS B,EN55022 CLASS B. |
|
EMS |
EN61000-4-2 |
|
EN61000-4-3 | ||
EN61000-4-4 | ||
EN61000-4-5 | ||
A Harmonic source |
Pass |
|
HI-pot: Primary to Secondary |
3KVAC,5mA,60s |
|
Drop Test |
As per UL regulation |
|
Burning test |
100%,4-5 hours |
|
Energy efficiency level |
CEC level VI, Doe VI |
|
Life |
MTBF |
50000 hours |
Warranty |
3 years |
|
DC connecter
