Home > Products > Facial Tissue Machine and Related Packing Machines > Facial Tissue Packing Machine for Large Height

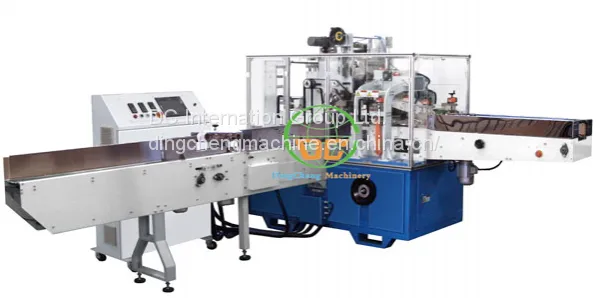

Facial Tissue Packing Machine for Large Height
- xiamen port
- T/T L/C Credit Card PayPal Other
- 35 days
You May Like
Product Details
| Brand Name | DC | Place of Origin | China | |
| Model Number | DC-FT-SPM6 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | one year | |
| Weight | 3440kgs | Dimension(L*W*H) | 3885x3200x1900 (mm) | |
| Product Type | Facial Tissue | Condition | New | |
| Power(W) | 6.83KW |
Product Description
Features & Charactestics
1. Adopt packing way by wrapping, hemming and sealing with compact structure suitable for packing regularly square objects, such as non-highly tight tissue and paper box.
2. Adopt the system of stepless frequency conversion controlling, touching screen and PLC, clearer human-machine interface, easier for maintenance.
3. Adopt auto-putting conveyor, easy to be connected with automatic production line, saving much laboring cost.
4. It saves much packing material by the function of photocell checking, servo tracking, and non-material feeding without tissue.
5. High automatization, high specialization, high efficiency and less trouble.
6. Various packing size may change quickly among different tissue sizes.
Application:
Applicable for packing regularly square objects, such as non-highly tight tissue and paper box.
Principal capability and technical feature:
| Model | DC-FT-SPM6 | |
Bagging size(mm)
| Length Width Height | 100-230mm 100-150mm 70-150mm(Need different mould for different size) |
| Packing speed | 20-60 bags/min. | |
| Total power | 6.83KW | |
| Overall weight | 3440kgs | |
Outer dimension (LxWxH) |
3885x3200x1900 (mm) | |
Heating power | 3.35KW | |
| Motor power | 3.48KW | |
| Max. packing size | 200x120x100 (mm) | |
| Noise | ≤78dB | |
Suitable packing material | CPP、PE、OPP/CPP、PT/PE、KOP/CPP. | |
Power supply type | 380V/50Hz | |
