| Introduction of rotary dryer for wood chips |
rotary dryer for wood chips is widely used for drying wood chips, sawudt, efb fiber, forest waste. wood chips rotary dryer is
mainly used in the fields of biomass fuels industry, animal feed industry, organic fertilizer industry, mainly stoving wood and other materials
rotary dryer for wood chips is mainly composed by the revolving body, lifting plate, driving device, supporting device,
sealing ring and other components.
| Technical Parameter of rotary dryer for wood chips |
| Model | Cylinder diameter (mm) | Cylinder Length (m) | Power (kw) | evaporation capacity(t/h) | Feeding moisture | Discharge moisture | Thickness of cylinder (mm) |
| YGHGφ1.5*12m | 1.5 | 12 | 7.5+18.5+4 | 0.42-0.85 | 20-50% | 13-15% | 10-12mm |
| YGHGφ1.8*12m | 1.8 | 12 | 7.5+18.5+4 | 0.8 | 20-50% | 13-15% | 14-18mm |
| YGHGφ1.8*18m | 1.8 | 18 | 11+22+4 | 1 | 20-50% | 13-15% | 14-18mm |
| YGHGφ1.8*24m | 1.8 | 24 | 11+30+4 | 1.22-2.44 | 20-50% | 13-15% | 14-18mm |
| YGHGφ2.0*24m | 2.0 | 24 | 15+37+7.5 | 1-1.5 | 20-50% | 13-15% | 14-18mm |
| YGHGφ2.2*24m | 2.2 | 24 | 15+37+5.5 | 2 | 20-50% | 13-15% | 14-18mm |
| YGHGφ2.5*24m | 2.5 | 24 | 15+37+5.5 | 2.5 | 20-50% | 13-15% | 20mm |
>> Why choose ROTEXMASTER rotary dryer for wood chips?

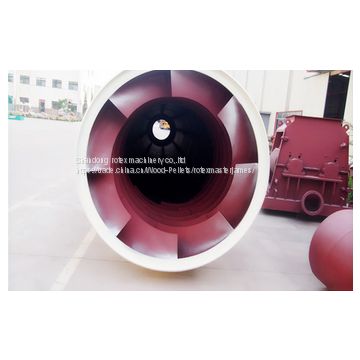

1.The inner structure of ROTEXMASTER rotary dryer for wood chips is dryer wall plate + triangle plate,widely increase the drying efficiency, larger capacity.
The dryer inner structure mainly used for drying wood chips,wood sawdust,efb fiber,sand,olive waste etc.
Design: spiral plate weld, accord with welding rule, it won't easily crack and deformation.
2. The rotary drum dryer wall thickness 20mm depends on the different model dryer,the dryer total weight 10t-30t,that make sure the dryer work stable,firmly enough.
Material: Q235 carbon steel
Thickness: 18-20mm
Advantage: long using life.
3. The rotary dryer for wood chips length 18m or 24m,when ship the dryer to customer,the dryer will be took apart two parts,after dryer arrived the customer factory site,
our engineer will guide and teach them to install the dryer.
4.The rotary dryer for wood chips has two units reducer,the bearing is Harbin bearing,highest configuration,most brand part,long service life.
5. The another side of dryer used the screw + plate structure,the raw materials entered from one side of dryer,and discharged from the another side of dryer,that makes sure the drying efficiency.
6. The stove of rotary dryer for wood chips consists of 3 sectors of fire-proof wall, 2 layer brick of every fire-proof wall. Reasonal design can avoid open flame.
So it run steadily, safely and have long life.

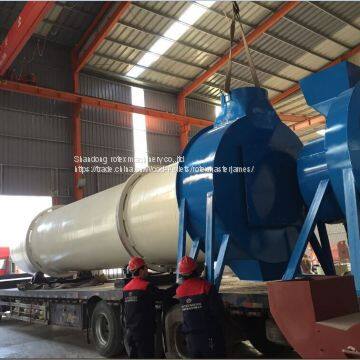

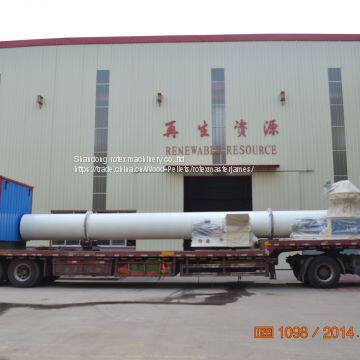

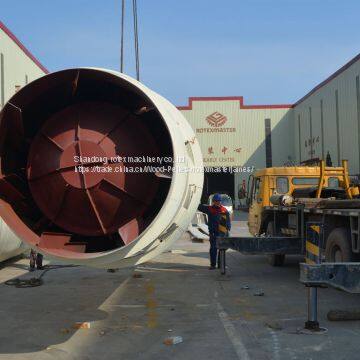

| Loading of rotary dryer for wood chips |
| rotary dryer for wood chips in clinet's factory |
| Certificate of rotary dryer for wood chips |
