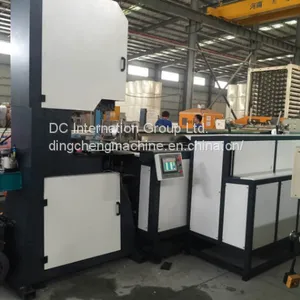

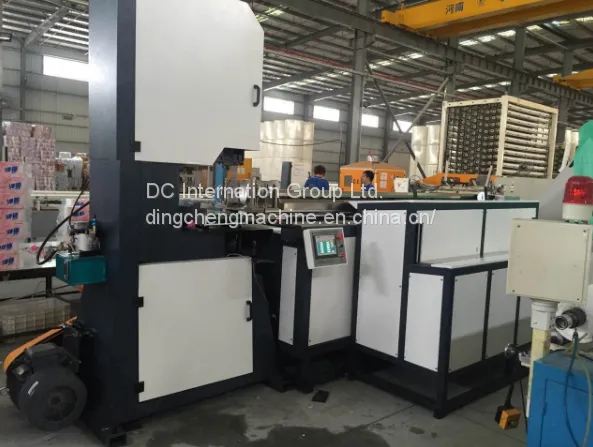

Automatic Industrial Roll Band Saw Cutting Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DC
Place of Origin:
China
Model Number:
DC-JRTBSM
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen port
Delivery Detail:
30 days
Related Products
-
Maxi Roll Making MachineNegotiableMOQ: 1 Set -
Industrial Roll Small Rolled Paper Production LineNegotiableMOQ: 1 Set
-
Small Rolled Paper Packing MachineNegotiableMOQ: 1 Set
-
Semi Automatic L Type Hot Shrink Packaging MachineNegotiableMOQ: 1 Set
-
Napkin Paper Machine (DC-NPM-200/450I)NegotiableMOQ: 1 Set
Brand Name
DC
Place of Origin
China
Model Number
DC-JRTBSM
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
one year
Dimension(L*W*H)
4400MM*2000 MM *2700 MM
Voltage
380V
Condition
New
Power(W)
11KW
Processing Type
Cutting Machine
I. Detailed Introduction
1. The machine is used to cut the non-core and roll core toilet paper and kitchen towel logs into short one.
2. The machine has equipped with feeding toilet paper roll log, trimming and rowing waste automatically function.
3. The machine can be connected with packing machine, which can save worker cost to reduce the production cost, and improve production efficiency.
4. The machine has adopted with touch screen, and with counter testing which is easy operate and set.
5. It is very safe when cutting the rolls, and no need workers to operate, which is greatly reduced the past happened in the safety index, and to improve the operating personnel security and operating efficiency.
6. It can be set the cutting rolls no. on the touch screen.
7. Cutting effect is more nice and neat, not burr, not impartial.
8. The machine is setting advanced, reliable Performance, material parts national standards, and weal well. The mail control parts used imported high quality components, and others parts is the national standard.
9. It can be ordered 1575 model, 2800model.
II. Main Parameters
1. Machine model: 2200-3200mm can be ordered
2. Cutting speed: 20-60 rolls/min
3. Cutting roll dia: 100-250mm.
4. Min cutting roll length: 80-260mm.
5. Power supply: 380V
6. Gas source voltage: 06MPA （offered by customers）
7. Total power: 11KW
8. Machine size: 4400MM*2000 MM *2700 MM
8. Machine size: 4400MM*2000 MM *2700 MM
