Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > 4CH HD 1080P HDMI P2P POE NVR Surveillance System Video Output 4PCS 2.0MP IP Camera Home Security CCTV Kits 1TB HDD

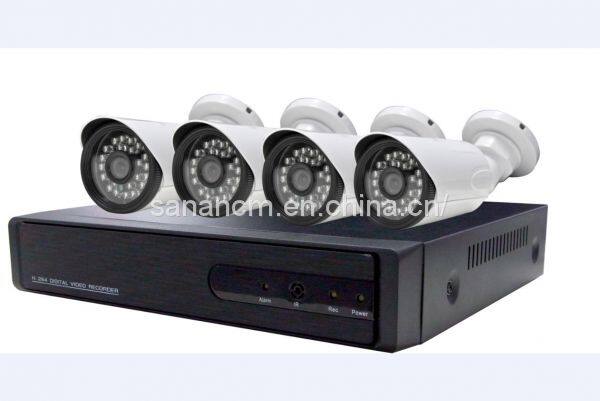

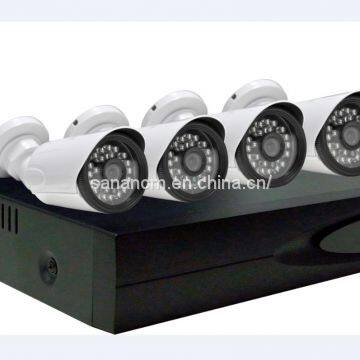

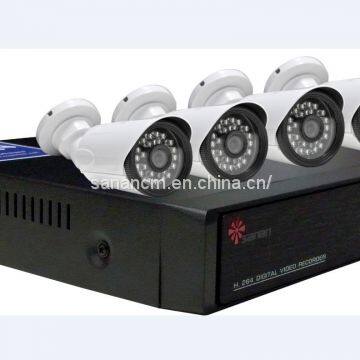

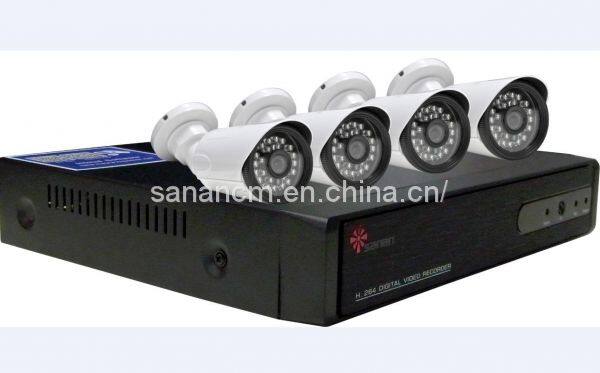

4CH HD 1080P HDMI P2P POE NVR Surveillance System Video Output 4PCS 2.0MP IP Camera Home Security CCTV Kits 1TB HDD
US$ 183.5 - 201.8
MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
SANAN
Place of Origin:
China
Model Number:
SA-NIP2EBC3-4P
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/HK
Delivery Detail:
7 days
Related Products
-
H.View Security Camera System 8ch CCTV System 8 x 1080P CCTV Camera Surveillance System Kit Camaras Seguridad HomeUS$ 250.5 - 273.5MOQ: 10 Sets -
4CH 1080P Network POE NVR Kit CCTV Security System 2.0MP IP Camera Outdoor IR Night Vision Surveillance Camera SystemUS$ 137.5 - 151.5MOQ: 10 Sets
-
AHD DVR 4PCS 1200TVL IR Night Vision Outdoor CCTV Camera 24 LEDs Home Security CCTV System Surveillance KitUS$ 72.55 - 81.55MOQ: 10 Sets
-
4CH AHD 5 IN 1 Security DVR System HDMI 1280*720 1500TVL AHD Weatherproof Outdoor CCTV Camera 2.0MP AHD Surveillance KitUS$ 92.55 - 101.55MOQ: 10 Sets
-
720P HD 1200TVL Outdoor Security Camera System 1080P HDMI CCTV Video Surveillance 8CH DVR Kit 1TB HDD AHD Camera SetUS$ 135.66 - 155.99MOQ: 10 Sets
Brand Name
SANAN
Place of Origin
China
Model Number
SA-NIP2EBC3-4P
POE NVR Kit SA-NIP2EBC3-4P
POE NVR Kit SA-NIP2EBC3-4P
| POE NVR Kit SA-NIP2EBC3-4P | |
| * 2.0MP POE Network Video Recorder * Built-in POE module with high-performance and high stability * Automatically Connection between NVR and IPC * Support video preview/recording/playback/backup * Support 4ch POE camera access * Support Android/IOS/PC remote | |
| Wireless NVR Specification | |
| Model | SA-NVRTE0402S1-4P |
| Main Processor | HI3536C |
| IP Video Input | Access bandwidth 40Mbps; |
| HDMI Output | 1 CH，support 4K(3840×2160)/30Hz,1920×1080,1440×900,1366×768, 1280×1024,1280×800,1024×768 resolution output show |
| VGA Output | 1CH, support 1920×1080,1440×900,1366×768,1280×1024,1280×800,1024×768 resolution output show; |
| Video Compression | Support H.265+/H.265/H.264 decoding |
| Recording | 720P/960P/1080P/3MP/4MP/5MP; |
| Playback | NVR local recording playback support 4CH 2MP,2CH 5MP;Seetong client recording playback support 4 channels. 4*1080P Recording,4*1080P Playback |
| Video Resolution | 720P/960P/1080P/3MP/4MP/5MP; |
| Stream Type | Audio/Video,Variable Rate(VBR) , Constant Bit Rate(CBR) |
| Audio | Standard G.711, support audio and video recording,support HDMI output channel preview and playback audio and video, Seetong client audio and video preview and playback; |
| Storage Type | 1*SATA hard disk interface,support 500GB～8TB capacity; |
| Backup | Support external USB storage devices (such as ordinary U disk, mobile hard disk) backup; |
| Network Interface | RJ45 10M / 100M Internet Interface;support TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP and so on protocols; |
| POE Interface | 4 PoE ports, support 802.3af standard,single port maximum access to 30W device, 4 prot total power does not exceed 110W (DC +48V/3A adapter),support over length cable(220 meters); |
| USB Interface | 2* USB2.0 Interface(Support Upgrade,Backup,Mouse) |
| Temperature | -10°---- 55° |
| Size | 255mm×210mm×42mm |
| Operation System | Embedded Linux Operation System |
| Device Control | Remote Control & Mouse |
| Power Input | DC +48 V / 2.0A |
| WIFI Camera Specification | |
| Model | SA-IP2EBC3-P |
| System Structure | DSP(Hi3516CV300),pure hardware compression,Watchdog,16MB FLASH,1G DDR3; |
| Sensor | SONY 2MP 1/2.9" CMOS(IMX323),color 0.1Lux@F1.2,B/W 0.01 Lux@F1.2;integrate IR-CUT drive, support linkage control between sensor &IR-CUT& photosensitive& LED fill light, support day/night switch,IR-CUT(20mm) and lens mount optional(M12); |
| Video Process | H.265 video coding, support dual stream, AVI format; code stream200k~8000k bps adjustable,low bit rate,support PAL and NTSC. |
| Frame Rate | 2MP @25 frames, support 7~30 FPS |
| Main stream | 1920×1080,1280×960,1280×720; |
| Code stream | 800×448,640×480,640×360,352×288; |
| lens | 3.6mm (6mm optional) |
| Audio Input / Output | N/A |
| Alarm Input / Output | N/A |
| SD Card | N/A |
| Network Interface | 1*RJ45 Ethernet interface,10/100M self-adaption,8KV anti-static electric capacity; support RTSP/DHCP/NTP/ONVIF/P2P and so on network protocols,GB/T28181 protocol optional |
| White Balance | Auto |
| Day&Night | IR cut filter with auto switch |
| 3D-DNR | Auto |
| Mirror/Flip | On / Off |
| Privacy Masking | 4 area |
| Thunder Prevention | Standard IEC61000-4-5 |
| Optional Function | POE cable power supply(IEEE 802.3af) |
| Power Input | DC12V |
| Power Consumption | ≤6W |
| Operation Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH |
| Storage Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH |
