Circular Locus Pilling Test machine
Negotiable
/ Set
1 Set(Min.Order)
- 200 Set / Sets per Month
- Shanghai, China
- T/T
- 30 days
You May Like
- Detector Leak Water PQWT L7000 High Quality Underground Pipeline Water Leak Detection Device
- Detector Leak Water PQWT L7000 High Quality Underground Pipeline Water Leak Detection Device
- Packaging Leak Tester MFT-1000
- Ampole Leak Tester MFT-1000
- Holykell Refrigerant air compressor pressure transmitter for HVAC system
- Packaging Leak Tester
Product Details
Brand Name: | QINSUN | Place of Origin: | China |
Product Description

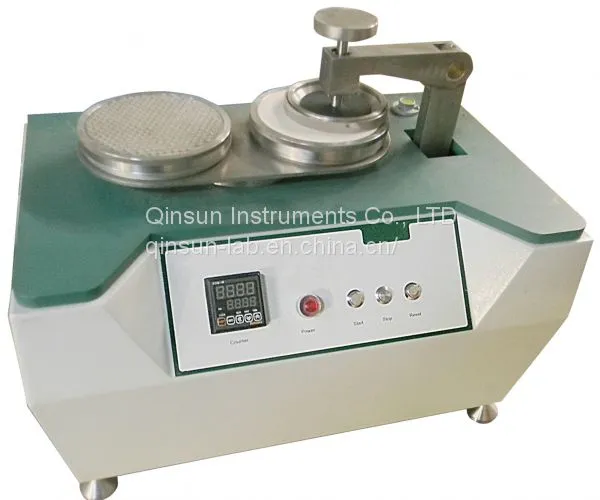

The instrument is used to test the wool fabric, chemical fiber cotton, blended, knitted, woven fabric pilling conditions to identify product quality and process effect. When testing, the fabric is rubbed against nylon brush and abrasive, or rubbed against abrasive only in the humidity state.
Standard
GB/T.1Determination of pilling properties of textile fabrics - Part 1: Circular trajectory method
JIGBell-type gas flow standard device verification procedures
DIN.2Testing of textiles - Wear test of flat fabrics – Roll to mill
Items | Parameters |
Grinding head is in contact with grinding plane | ≤0.2mm |
The parallelism of grinding head and grinding plane | ≤0.3mm |
The relative movement trajectory of grinding head and grinding plane | 40±1mm |
Nylon brush surface is flush, its height difference | <0.5mm |
Grinding plane reciprocating speed | 60±1 times/min |
Weight of grinding head | 490cN±1% |
Weight of heavy hammer | 290cN±1% |
Weight of hammer | 100cN±1% |
Select the number of times | 1~9999 |
Test mode
Scientific mechanical structure, smooth rotation, no mechanical noise, no contact fatigue failure, suitable for long continuous operation.
The use of standard nylon brush, the rigidity of nylon wire must be uniform, so as to control the fluff effect of nylon brush.
Ergonomic design, the surface using a spray forming, smooth and beautiful.
The use of standard nylon brush, the rigidity of nylon wire must be uniform, so as to control the fluff effect of nylon brush.
Ergonomic design, the surface using a spray forming, smooth and beautiful.
Feature
Sample type | pressure / cN | number of fluff times | number of pilling times |
Synthetic fiber knitted fabric | 590 | 150 | 150 |
Chemical fiber woven fabric | 590 | 50 | 50 |
Military service (combed blended) | 490 | 30 | 50 |
Combed wool fabric | 780 | 0 | 600 |
Coarse wool fabric | 490 | 0 | 50 |
