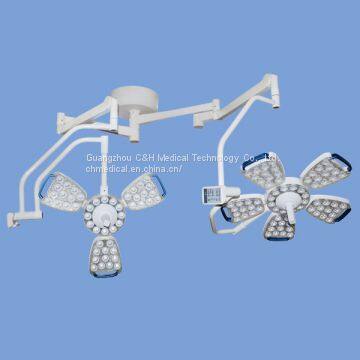

Hospital Operating Room Equipment Ceiling Double Arms LED Surgery Operating Lamps
With innovations such as powerful LED technology, multi-lens matrixes, and adaptive lighting management, our Medical Lighting equipment, Ceiling Mount Double Arms LED Operating Room Surgery Lamp, gives users better working environment.
Features & Specifications:
1, OSRAM brand, made in Germany LED units;
2, MITSUBISHI brand, made in Japan, PMMA materials optical grade lens for each LED unit;
3, With PWM sonstant-current controlling technology, avoid unsteady current impacting LED units, lamps service life can be 50,000 hours;
4, Each separated LED unit fixed with one separated heat radiating units, have excellent heat dissipation;
5, 6 LED units are series connected as one group, different groups are parallel connected as one lamp panel; If any group / unit fault, others work regular;
6, Every LED unit / Radiating unit can be dismantled without effecting others;
7, Engery saving, with maximum illumination as 160,000Lux, power dissipation is no more than 45W (One Lamp Panel);
8, Gives minium heat radiation to lighting area, when servicing, temperature rising around user's head area is no more than 2°C;
9, Color Rendering Index (CRI) no less than 96%;
10, Color Temperature 3 or 4 stages adjustable;
11, Lighting spot size stages adjustable; Or continuing adjustable (Optional function);
12, Illumination stages adjustable and continuing adjustable;
13, Turn-Off operating protection function, avoid misoperation;
14, One button to change over shadow-less lighting for surgery operating and cool white embient lighting for endoscopy operating (Optional function);
15, Streamline structure lamp satellites, to reduce effect for air flow, meets clean room air flow requirements;
16, Knock-Down handles, easy for sterilizing;
Big Lamp Panel LED Units Qty.: 67
Small Lamp Panel LED Units Qty.: 45
Made in Germany ceiling system and spring arms
Main Parameters (Single Satellite Lamp):
| Optical Parameter | Ec | Big Lamp Panel ≥160,000Lux Small Lamp Panel ≥140,000Lux |
|||||
| CRI | ≥96 | ||||||
| R9 | ≥93 | ||||||
| Color Temperature | 3900K / 4200K / 4500K Adjustable | ||||||
| D10 | 180mm / 250mm Optional | ||||||
| Temperature Rise | ≤2℃ | ||||||
| L1 + L2 | ≥1200mm | ||||||
| Electrical Parameter | Electricity | AC100~240V, 50/60Hz | |||||
| Input Power | 210VA | ||||||
| Power Dissipation | ≤40W | ||||||
| Radiant Emittance | ≤220 W/m2 | ||||||
| Mechanical Parameter | Arm Horizontal Rotate | 360° | |||||
| Balancer Horizontal Rotate | 360° | ||||||
| Balancer Vertical Rotate | 80° | ||||||
| Light Satellite Vertical Rotate | 180° | ||||||
Optional Parts:
1, Camera in lamp satellite central handle;
2, Camera with arm balancer;
3, 4.3'' FHD Touch Screen control panel;
4, Monitor with arm balancer;
The lamp satellites of this model are 5 petals + 3 petals model. We can customize 5 petals + 5 petals / 3 petals + 3 petals models, too.
For more information details, please contact us.
