Home > Auto, Motorcycle Parts & Accessories > Vehicle Repair Equipment & Tools > Car Bench > AUTENF ATV-MS2 Chassis Straightening Machine
AUTENF ATV-MS2 Chassis Straightening Machine
US$ 6000 - 9000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
AUTENF
Place of Origin:
China
Model Number:
ATV-MS2
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
30 days
Related Products
-
AUTENF Hydraulic Cylinder Repair Bench ATU-SIUS$ 3000 - 5000MOQ: 1 Piece -
AUTENF Frame Machine Chassis LinerUS$ 3000 - 4888MOQ: 1 Piece
-
AUTENF Chassis Alignment Machine ATU-MSUS$ 4000 - 6000MOQ: 1 Piece
-
AUTENF ATU-MS6 Car Chassis Straightening BenchUS$ 6000 - 9000MOQ: 1 Piece
-
AUTENF Chassis Straightening Bench ATV-MSUS$ 6000 - 9000MOQ: 1 Piece
Brand Name
AUTENF
Place of Origin
China
Model Number
ATV-MS2
Weight
3200kg
Warranty
2
Worktable Width
5600mm
Worktable Length
2200mm
Max. Tension (N)
10T
Max. Lifting Capacity
3500KG
Max. Hydraulic Pressure
70Mpa
Bench Height
300-1020mm
Specification
| Specification | Standard Type | Extended Type |
| platform length | 5600 mm | 6000 mm |
| platform width | 2100 mm | 2200 mm |
| platform height | 300--1020 mm | 300--1020 mm |
| pulling power | 10 tons/98 KN | 10 tons/98 KN |
| pulling range | 360 degree | 360 degree |
| hydraulic pressure | 70 Mpa | 70 Mpa |
| pneumatic pressure | 0.8 Mpa | 0.8 Mpa |
| lifting capacity | 3500 kg | 3500 kg |
| lifting type | parallel type | parallel type |
| weight | 3000 kgs | 3200 kgs |

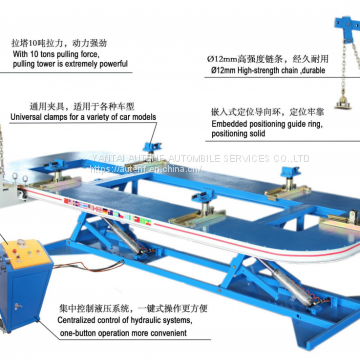

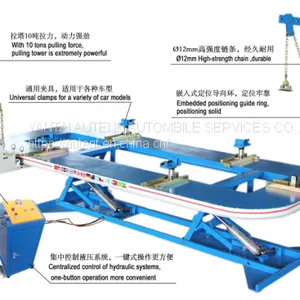

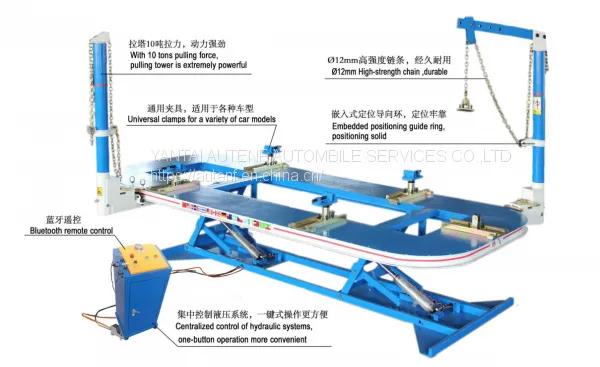

Features
1.parallel whole manganese steel platform allows easy drive on and off of any vehicle;
2. AUTENF clamps anchor most vehicles rock-solid;
3. combination of overhead puller and common puller enlarges pulling power and repair scope;
4. dead car dolly and wheel stand helps to load vehicles with damaged wheels onto platform easily;
5. air pump and electric pump is optional at your choice;
6. hydraulic system has large pulling capacity, long lifespan and low malfunction;
7. with high strength pulling accessories, it can recover any car distortion;
