Qt8-15automatic Block Making Machine/ Brick /Block Machine/Concrete Block /Hollow Block /Automatic Block/Automatic Cemen

Qt8-15automatic Block Making Machine/ Brick /Block Machine/Concrete Block /Hollow Block /Automatic Block/Automatic Cemen photo-1
Qt8-15automatic Block Making Machine/ Brick /Block Machine/Concrete Block /Hollow Block /Automatic Block/Automatic Cemen photo-2
Qt8-15automatic Block Making Machine/ Brick /Block Machine/Concrete Block /Hollow Block /Automatic Block/Automatic Cemen photo-3
Qt8-15automatic Block Making Machine/ Brick /Block Machine/Concrete Block /Hollow Block /Automatic Block/Automatic Cemen photo-4
Qt8-15automatic Block Making Machine/ Brick /Block Machine/Concrete Block /Hollow Block /Automatic Block/Automatic Cemen photo-5
US$ 51400 - 54400 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Tangland
Model Number:
Qt8-15
Type:

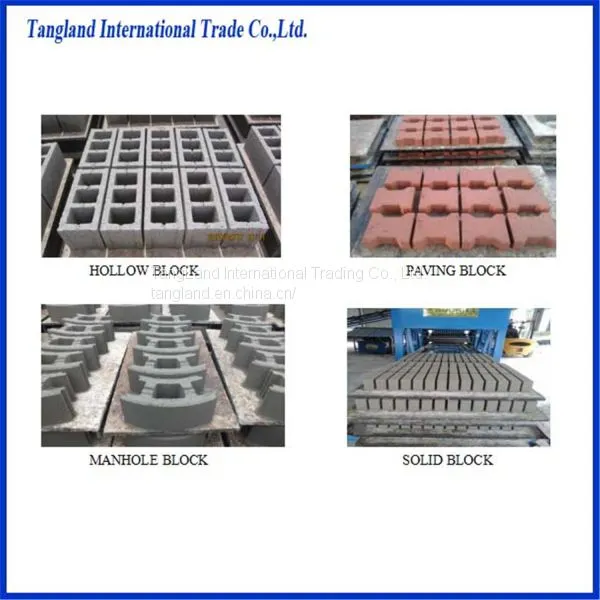

Other, curbstone block machine,hollow block making machine,interlock block making machine,paving block making machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
25 days
Brand Name Tangland
Model Number Qt8-15
Type Other, curbstone block machine,hollow block making machine,interlock block making machine,paving block making machine
After-sales Service Provided Engineers available to service machinery overseas
Dimension(L*W*H) 5400X1960X3050mm
Power 44.2kw
Condition New
Automatic Yes
Method Hydraulic Pressure
Processing Brick Molding Machine
Brick Raw Material Other, Industrial waste residue, fly ash, coal gangue, river sand, slag, building waste, stone powder, stone slag, stone processing waste residue

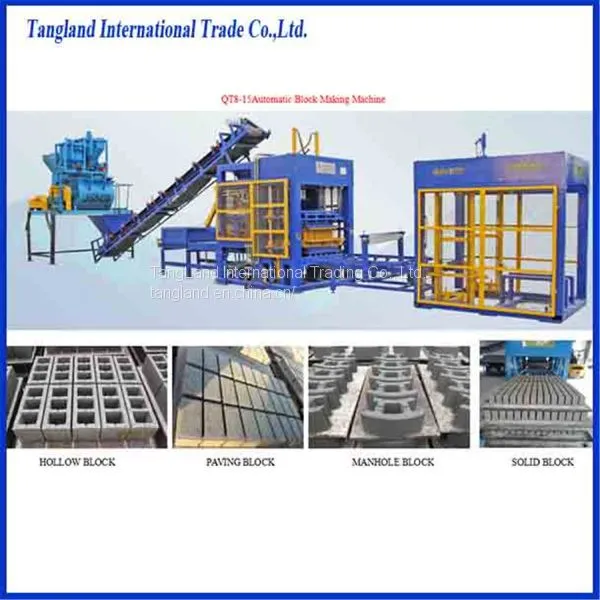

QT8-15 type multifunctional brick machine can be called flower machine for the road, encaustic brick machine, have different names in different regions. The main equipment is the production of colored pavement brick, square brick, Lu Yanshi multifunctional forming machine.


Features

1.The Machine adopts four galvanized pipe with sleeve bearing to ensure the exact movement of mould.Gear and shaft balance system can make male and female mould move stably.Concrete feeding is revolving,convective and compulsive to ensure block density and reduce feeding cycle. Feeder moving is two curved arms drived by two cylinders,which makes feeder move quickly,durably,and steady.

2.The Mould is made with heat treatments of quenching,tempering,carbonization and boriding.Working life of mould is improved.

3.The Hydraulic System adopts Proportion Direction Valve.The Valve can adjust flow rate and buffer cylinder during the process of production.Therefore,it can protect cylinder and extend life,and Improve the speed and flexibility of each part.

4.The Vibration System adopts German Frequency Conversion Technique.The vibration motor is Frequency Conversion Controlled.The lubrication of Vibrator adopts oil immersed,which improve the using life of Bearing and Gear of vibrator.

5.Adopting International Advanced Microcomputer Control Technology to make Machine and electrical equipment to be one part.The plant can work automatically and cyclically.Our technicians put fault diagnosis,problem alarming into computer by safty logic control.The screen will timely and accurately show fault and methods to client if the machine is in error.
