ASTM A335 P11 Alloy Steel Pipe

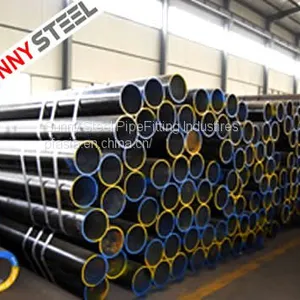

ASTM A335 P11 Alloy Steel Pipe thumbnail-1
ASTM A335 P11 Alloy Steel Pipe thumbnail-2

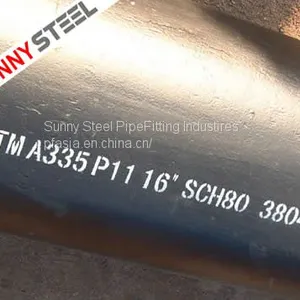

ASTM A335 P11 Alloy Steel Pipe thumbnail-3
ASTM A335 P11 Alloy Steel Pipe thumbnail-4
ASTM A335 P11 Alloy Steel Pipe photo-1

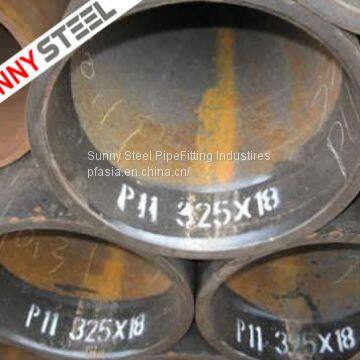

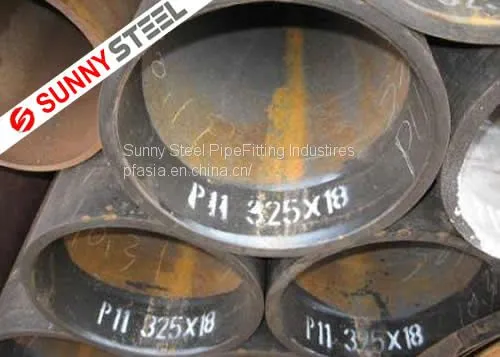

ASTM A335 P11 Alloy Steel Pipe photo-2

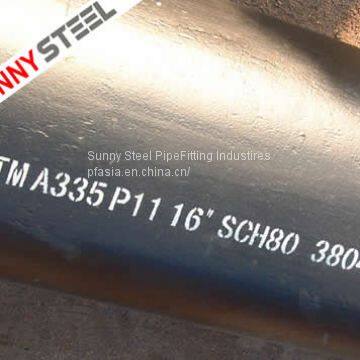

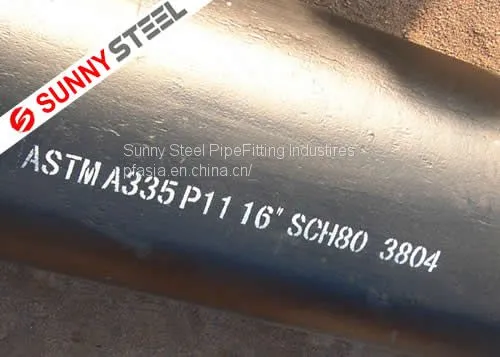

ASTM A335 P11 Alloy Steel Pipe photo-3
ASTM A335 P11 Alloy Steel Pipe photo-4
US$ 1000 - 3000 MOQ: 10 Tons
Key Specifications
Get Latest Price
Certification:
UL
Thickness:
10, 30
Standard:
Contact Supplier Request Quote Chat Now
Sunny Steel PipeFitting Industires
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification UL
Thickness 10, 30
Alloy Or Not Is Alloy
Special Pipe Thick Wall Pipe
Section Shape Round
Outer Diameter 100, 500

ASTM A335 P11 is the part of ASTM A335, the pipe shall be suitable for bending, flanging, and similar forming operations, and for fusion welding. The steel material shall conform to chemical composition, tensile property, and hardness requirements. Each length of pipe shall be subjected to the hydrostatic test. Also, each pipe shall be examined by a non-destructive examination method in accordance to the required practices.

The different mechanical test requirements for pipes, namely, transverse or longitudinal tension test, flattening test, and hardness or bend test are presented.Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

Material & Manufacture
Pipe may be either hot finished or cold drawn with the finishing heat treatment noted below.
Heat Treatment

  • A / N+T

  • N+T / Q+T

  • N+T

Mechanical Tests Specified

  • Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test

  • For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot. For small lots, at least one pipe shall be tested.

  • For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5% of the lot, but in no case less than 2 pipe.

ASTM A335 P91 pipe shall be suitable for bending, flanging, and similar forming operations, and for fusion welding.

The steel material shall conform to chemical composition, tensile property, and hardness requirements.

Each length of pipe shall be subjected to the hydrostatic test. Also, each pipe shall be examined by a non-destructive examination method in accordance to the required practices.

The different mechanical test requirements for pipes, namely, transverse or longitudinal tension test, flattening test, and hardness or bend test are presented.Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

A335 seamless steel pipe
Chemical Composition(%)：
Grade
UNS Designation
Composition, %


Carbon
Manganese
Phosphorus,
Sulfur
Silicon




P1
K11522
0.10–0.20
0.30–0.80
0.025
0.025
0.10–0.50
—
0.44–0.65
P2
K11547
0.10–0.20
0.30–0.61
0.025
0.025
0.10–0.30
0.50–0.81
0.44–0.65
P5
K41545
0.15 max
0.30–0.60
0.025
0.025
0.50 max
4.00–6.00
0.45–0.65
P9
S50400
0.15 max
0.30–0.60
0.025
0.025
0.25–1.00
8.00–10.00
0.90–1.10
P11
K11597
0.05–0.15
0.30–0.60
0.025
0.025
0.50–1.00
1.00–1.50
0.44–0.65
P12
K11562
0.05–0.15
0.30–0.61
0.025
0.025
0.50 max
0.80–1.25
0.44–0.65
P15
K11578
0.05–0.15
0.30–0.60
0.025
0.025
1.15–1.65
—
0.44–0.65
P21
K31545
0.05–0.15
0.30–0.60
0.025
0.025
0.50 max
2.65–3.35
0.80–1.06
P22
K21590
0.05–0.15
0.30–0.60
0.025
0.025
0.50 max
1.90–2.60
0.87–1.13
Mechanical Properties:
Standard
Grade
Tensile
strength
Yield strength
(MPa)
Elongation
(%)
Impact
(J)
not less than
not less than
not less than
ASTM A 335M/
ASME SA-335M
P1-P11
≥380
205
–
P12-P21
≥415
220
–
P23
≥515
100
–
Grade: P1, P2, P5, P9, P11, P12, P15, P21, P22
OD: 21.3mm-508mm, 1/2’’-20’’
WT: 2.11mm-40mm
Port Form: PE BE


Astm A335 standard specication for seamless ferritic alloy-steel pipe for high-temperature service


ASTM A335 standard is issued under the fixed designation A 335/A 335M; the number immediately following the designation indicates the year of original adoption or, in the case of revision, the year of last revision.


Astm A335 standard specication for seamless ferritic alloy-steel pipe

Download Abrasion resistant The ceramic-lined steel composite pipes, Bends and elobws specifications & size range
This specification covers nominal (average) wall seamless alloy-steel pipe intended for high-temperature service (Mote 1). Pipe ordered to this specification shall be suitable for bending, flanging (vanstoning), and similar forming operations, and for fusion welding. Selection will depend upon design, service conditions, mechanical properties, and high-temperature characteristics.


Product Tags: Alloy Steel Seamless Pipes , ASTM A335 P91 , ASTM A335 pipe
