Specifications
1.Car Camera System Rearview Mirror Monitor2.7 inch GPS Navigator
3.High Definition,Touch Screen
4.Bluetooth Handsfree
5.CE

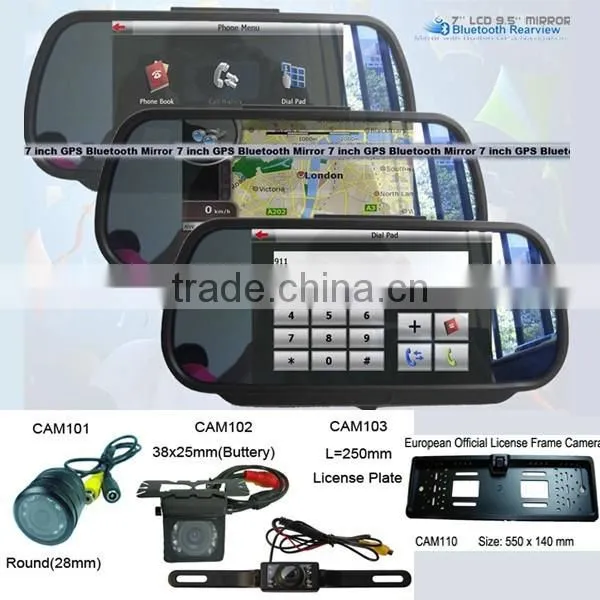

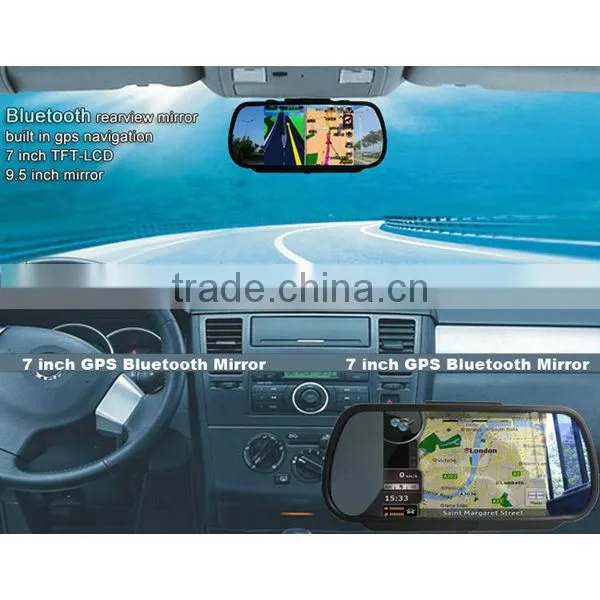

7 inch GPS Navigation Car Camera System Rearview Mirror Monitor
Item No: G1170SC4
Item Name:7 Inch TFT MIRROR MOTNITOR GPS. 7" with touch panel WITH GPS/BLUETOOTH
1).800x480, High resolution

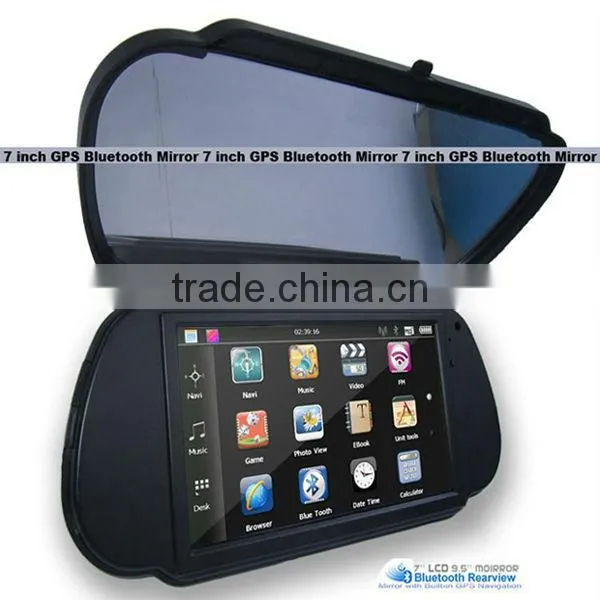

2).Flip-open cover,better rearview,better display,Clip-on original mirror and belted.
3).Panel Size: 7 inch (16:9), Touch Panel 4).TFT Resolution: 800x480, High resolution
5).GPS / Multimedia Play/ USB SD CARD/ 6).System: PAL/NTSC (Auto)

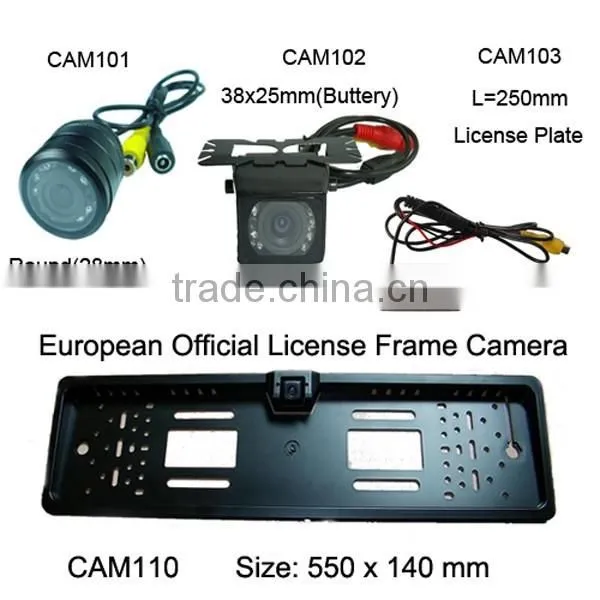

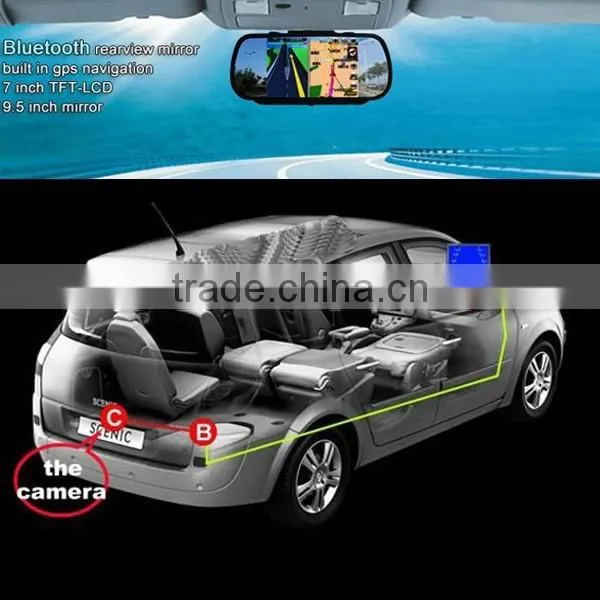

7).2 Video input, for camera and any video source 8).Rearview camera auto start working while car backward

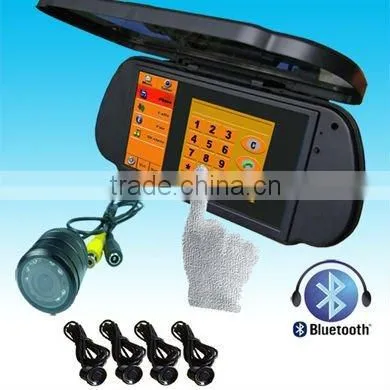

9).2~6 sensors parking sensor optional: for 6 sensors,2 for front bumper,4 for back bumper
CPU: MediaTek (MT3351 480/MHz) Flash: 128MB NAND flash , RAM: 128MB SDRAM
GPS Antenna: Built-in FM Transmitter: Built-in Built-in dual stereo louderspeaker
SD Card Slot, USB: USB2.0, full speed, up to 12Mbps Buttons/Switches: Two buttons: Power,Reset
Built-in Battery: Non-revmovable rechargeable Li-polymer battery up to 2000mAh
Operating System: Microsoft Windows CE.NET5.0 Core version
Navigation Software To be determined by customer
Music Player Audio file formats:WMA9, MP3, WAV
Video Player Video file formats:WMV, AVI, ASF,MPG,MOV,MP4
Photo Browser Picture formats:JPG, GIF, BMP, PNG,TIF
E-book Text format: TXT
Certification & Regulation CE, FCC, and RoHS compliant
Environment temperature Operation:0~50°C, Storage:-10~60°C
Environment humidity Operation:0~90%, Storage:0~90%

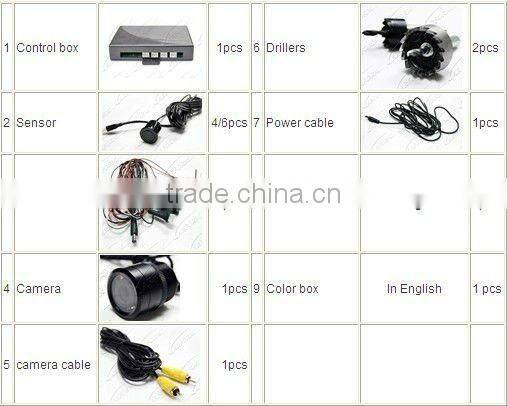

Accessories: Car charger * 1pc, User’s manual * 1pc
| 7 inch GPS Navigation Car Camera System Rearview Mirror Monitor Main parameters | |||||
| LCD | 7' TFT-LCD+9.5' mirror | CPU | MTK MT3351 468MHz,ARM11 76JZ-S Core | ||
| Resolution | 800x480 pixels | GPS | MT3329(24 tracking/ 66 acquisition-channel) | ||
| Aspect Ratio | 10:09 | Language | English,French,Russian,Arabic,Portuguese etc. | ||
| Memory RAM | 128MB | AC/DC Adapter | Input: AC 110~240V Output: DC +5V, 2A, via USB | ||
| Memory ROM | 128MB(Up to16GB) | Car Charger | Input: DC +12V-24V Output: DC +5V, 1.5-2A, via USB | ||
| Storage deck | SD Card(up to 16G) | Speaker | Built-in Speaker x 1 8Ω/2W | ||
| 7 inch GPS Navigation Car Camera System Rearview Mirror Monitor Prod parameters | |||||
| 1 | GPS | Built-in GPS Navigation | |||
| 2 | BLUETOOTH | Built-in Bluetooth,via Hands-free with echo cancellation, DUN, Phonebook. | |||
| 3 | AV-IN | video input, Support:PAL/NTSC (Auto) | |||
| 4 | VIDEO | Support: MP4 ,AVI, ASF, WMV | |||
| 5 | PHOTO | Support: JPG,PNG,GIF,BMP | |||
| 6 | MP3 | Support: MP3, WAV | |||
| 7 | Map | IGO GARMIN PAPAGO TOMTOM PolNav Navitel R66 Etc. | |||
| 8 | FM Transmit | KT0803 | |||

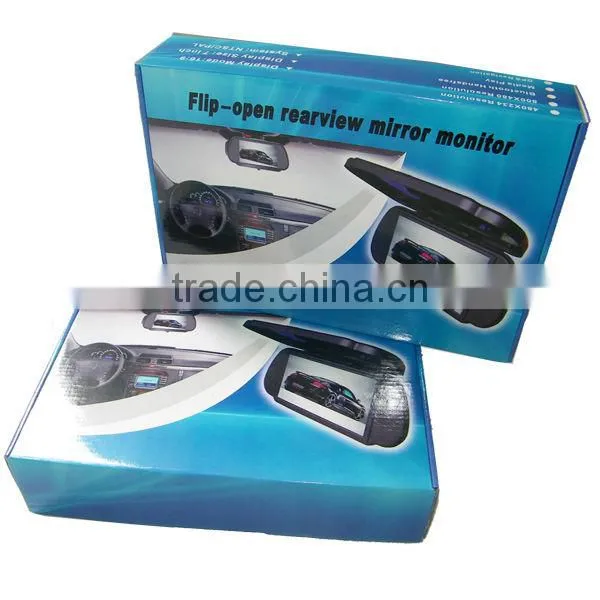

7 inch GPS Navigation Car Camera System Rearview Mirror Monitor Colour Box Packing
7 inch GPS Navigation Car Camera System Rearview Mirror Monitor Factory and HK Fair:
We offer TWO YEAR warranty from the date of product received, if you found it broken and cannot be repaired, please contact us.We will not be responsible for the damage from improper installation, accident, misuse, abuse, improper wiring and incorrect voltage while operating the unit against the instructions in the owner's manual.
We do care about our valued customers and understand the concerns and frustrations you might have and will try our best to resolve all the issues.
We strive to answer all emails as quickly as possible, but due to high email volume it may take time for us to reply. Thanks in advance for your patience!
Paypal,Western Union, Telegraph Transfer is also acceptable.
If sampes(less then 100 pcs)can be shipped via express.(DHL,UPS,EMS)
Each order will be delivered within 24 hours with a clear payment. Due to the updates, bad weather, peak season, custom trouble, there will have some delay, thanks for your understand.
More than 500 pcs,can by via air or via sea.7 days.
You can order single items as samples.No MOQ.
12 month warranty.
Shipping worldwide.
Drop-shipping available.
Ice Huang online Best Service For You.
Very glad to contact!We are Shenzhen Windstone Electronic Co.Ltd,specializing in manufacturing and exporting many styles of Car Bluetooth Handsfree rearivew mirror,Car Parking Sensor system,Car GPS Navigation System more than 10 years.With 10 years' experience,We have our factories,So,we can meet your requirements and on-time order delivery.Every year,we export more than USD 10,000,000 to USA,Canada,Europe,Australia and Middle East.
Please feel free to contact us for further details.We look forward to having chances to start our cooperation for a long time."High Quality Products, Fast Shipment Service, Competitive Price for all customers" is our tenet.
Best regard!
Your own design,logo and small order are welcome
Our working time: 9:00 AM - 18:30 PM (BeiJing Time) Monday - Sunday
Skype:icelandoo
