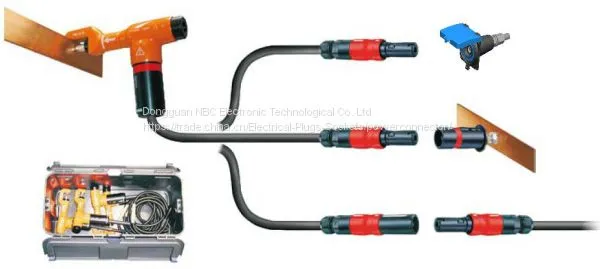

300A 1000V Industrial Connector MC4

Industrial waterproof connectors

1)    Replace MC (Multi-Contact) Industrial Connector

2)    Mobile power charging plug

3)    The industrial rapid plug of  generating  unit and power car .

4)    The rapid plug of power car  special

5)    Replace Staubli industrial quick plug

6)    ANEN board socket 、coupler 、industrial connector、industrial plug、power connector

Features:

Housing material: PC have excellent heat resistance , grease resistant , anti-aging roerties.

Terminal material : 99.99%  high purity copper ,plated silver , good electricity conduction and heat transfer .

Locked design can make sure that the products do not fall off in the abnormal condition .

Products for touch can meet IEC60529 standard , can prevent getting the electric shock when someone touch the product.

work current : 300A/600A/1000A ,work voltage:1000v , The standard wire way : 70mm²～300mm²

The waterproofing of industrial : IP65 ,different color have different interface, which can prevent mistaken insertion

Application with standby power supply unit, generating set ,test equipment ,complete equipment ,mobile power supply vehicle , UPS power supply vehicle , power battery charging and electric vehicle charging pile and so on.

IC series industrial connector can replace with Multi-Contact , there are some advantages in price and delivery time .

A.    KBT10BV-AX/M，KST10BV-AX/M，KBT16BV-NS/M，KBT16BV-AX/M，IB16BV-NS-A，ID/B16BV-NS-A。

B.    ID/S16BV-NS，IS16BV-NS，KST16BV-AX/M，KST16BV-NS/M，S10AR-N，S14AR-N，MD/.10AR-N，MD/.14AR-N；

C.    FR10，FR14，PUR-RING10AR-N，PUR-RING14AR-N，MUE/M40X1.5 NI，KBT14AR，KST14AR-N

KBT14/95-W，KBT14/70-W，KST14/70-W，KST14/95-W，MD/S30BV，MD/B30BV；IB30BV，IS30BV，DBT30，KBT30BV/240，KST30BV/400A，
