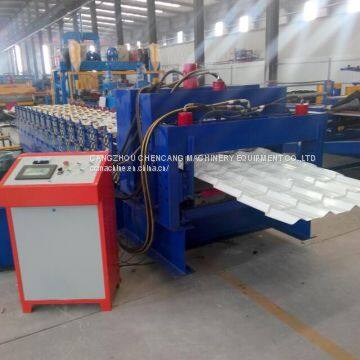

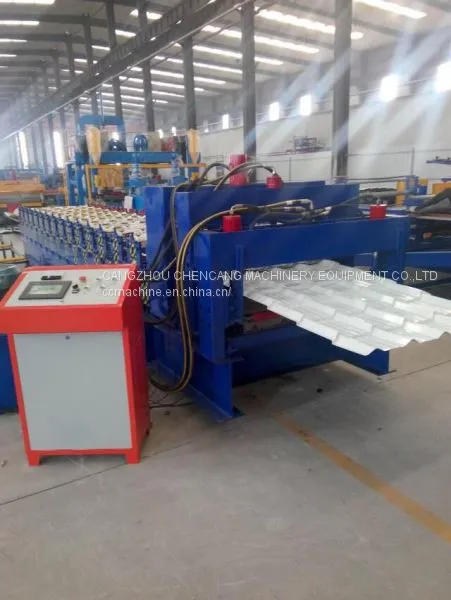

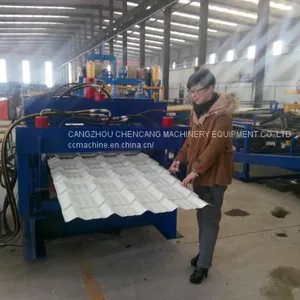

820/960 Step Tile Roll Forming Machine
US$ 6000 - 9000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Certification:
ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN XINGANG
Delivery Detail:
30 days
Related Products
-
1100 Arc Bias Glazed Tile Roll Forming MachineUS$ 10000 - 12000MOQ: 1 Set -
1100 Arc Bias Glazed Tile Roll Forming MachineUS$ 11000 - 15000MOQ: 1 Set
-
Metrocopo Profile Roll Forming MachineUS$ 7500 - 9000MOQ: 1 Set
-
C Purlin MachineUS$ 9000 - 12000MOQ: 1 Set
-
312 Ridge Cap Tile Roll Forming MachineUS$ 7500 - 8000MOQ: 1 Set
Place of Origin
China
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12Months
Weight
3Ton
Dimension(L*W*H)
7000MM*1200MM*1200MM
Production Capacity
3-5M/MIN
Condition
New
Voltage
380V
Power(W)
5.5KW
| o. | main parameter of roll forming machine | |
| 1 | suitable material | Steel plate |
| 2 | Width of the plate | 1000mm |
| 3 | Rows of rollers | 11 stations |
| 4 | Size | 6800mm*1600mm*1200mm |
| 5 | POWER | 4KW+3KW |
| 6 | Reducer | Cyclodial planetary speed reducer,4# reducer,speed ratio 1:59 |
| 7 | Mid-plate thickness | 14mm |
| 8 | Frame of structure | 350 H steel welding |
| 9 | Chain | 1 Inch |
| 10 | Thickness of raw material | 0.3-0.8mm |
| 11 | Productivity | 3-5m/min |
| 12 | diameter of shaft | 45# steel,solid shaft.￠70mm |
| 13 | Weight | About3.5T |
| 14 | Voltage | 380V 50Hz 3phases |
