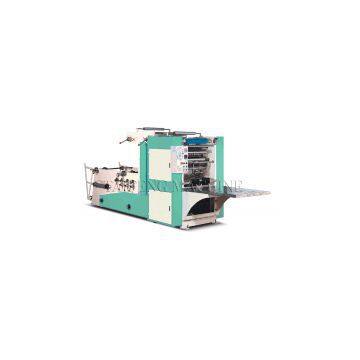

Help CenterFull Automatic Face Tissue Paper Machine
Related Products
-
Drawn Facial Tissue Folding MachineUS$ 1111 - 1111MOQ: 1 Set -
Automatic Paper Rewinding,Perforating, Embossing MachineUS$ 1111 - 1111MOQ: 1 Set
-
Napkin MachineUS$ 1111 - 1111MOQ: 1 Set
-
Tissue Paper Machine ManufacturersUS$ 1111 - 1111MOQ: 1 Set
-
Newest High Speed Tissue Paper MachineUS$ 1111 - 1111MOQ: 1 Set
Box facial tissue machine adopts vacuum pump, automatic counting and dividing device, with fast, accurate number of advantages,it is a boxed tissues production of advanced equipment. Functions and features 1.Automatic counting points, the whole line of the output. 2.Spiral blade shear, vacuum adsorption folds. 3.Put volume stepless speed regulation, can adapt to high and low tension of base paper. 4.Electronically controlled pneumatic, easy to operate. 5.Product width can be adjusted to facilitate customer marketing. 6.Rolling paper pattern matching device, the pattern is clear that flexible market demand. (Selected pattern set by the guests). 7.Form a complete set of two-color flexo printing device, colorful patterns. The working principle of tissue cutting Cutting system：Consist of sawing belt, belt wheel, working panels.Work panels have product size adjustment device, adjustable make the product to achieve. Folding forming: Along with the main motor running, fold the crank arm manipulator rod body, cooperate to produce, the deflection Angle, can adjust the position of the crank arm and change the length of the connecting rod to adjust (after folding forming is solid, i.e., don't need to adjust) Dislocation counting and dividing：Adjust budget Numbers count control instrument, when the number reaches a constant value, relay drive cylinder to produce finished products export bedplate of displacement. The characteristics of the tissue machine： Have put roll tension control,,can adapt to high and low tension base paper production. In the paper can roll pattern, pattern is clear. Facial tissue machine adopts stepless speed regulation, conveyor, embossing, flowers; Vacuum folding, cutting. Model TF-2L TF-3L TF-4L TF-5L TF-6L Width of the base paper 420mm 630mm 840mm 1050mm 1260mm Base paper gram 12-18g/m x 2-3layers Base paper diameter Standard φ1100mm The paper core diameter 3’(76.2mm) The finished product size （140,150,160-210）x（140-210）(mm) Folding size (70-105)x(140-210)(mm) Production speed 1600 2400 3200 4000 4800 The machine drive CVT system Program control PLC, touch screen Pressure side of the system Steel on steel, independent adjustment Counting System Dislocation pile of counting Pneumatic system 3 air compressor, at least 5 kg/cm2Pa pressure Mechanical speed 60-100m/min Fan system 5.5kw 7.5kw 11kw 13.5kw 16kw Power 2.2kw 3kw 4kw 5.5kw 7.5kw Installation dimensions 4.1x1.3x2.1 4.1x1.5x2.1 4.1x1.7x2.1 4.1x2x2.1 4.1x2.3x2.1 Machine weight 1.8T 2.2T 2.6T 3.0 T 3.5T
