Temperature (Humidiy) Cycling Test Chamber

Dong Guan ASLI Test Instrument Co.,ltd
Temperature (Humidiy) Cycling Test Chamber thumbnail-1
Temperature (Humidiy) Cycling Test Chamber thumbnail-2
Temperature (Humidiy) Cycling Test Chamber thumbnail-3
Temperature (Humidiy) Cycling Test Chamber photo-1

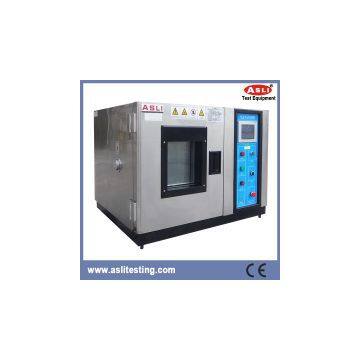

Temperature (Humidiy) Cycling Test Chamber photo-2

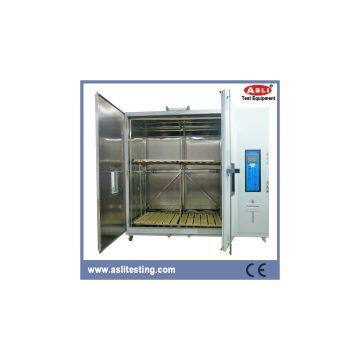

Temperature (Humidiy) Cycling Test Chamber photo-3
US$ 6562 - 6562 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ASLI
Place of Origin:
China
Model Number:
HL-408A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ASLI
Place of Origin China
Model Number HL-408A

Temperature (Humidiy) Cycling test chamber



Model TH-80(A~F) TH-150(A~F) TH-225(A~F) TH-408(A~F) TH-800(A~F) TH-1000(A~F)
 Internal Dimension
WxHxD (mm)		 400x500x400 500x600x500 600x750x500 600x850x800 1000x1000x800 1000x1000x1000
 Internal Dimension WxHxD (mm) 950x1650x950 1050x1750x1050 1200x1900x1150 1200x1950x1350 1600x2000x1450 1600x2100x1450
 TemperatureRange Low Temperature(A:25℃  B:0℃  C:-20℃  D:-40℃  E:-60℃  F:-70℃)
 High Temperature 150℃
 HumidityRange 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need Dehumidifier)
 Analytic Accuracy/
Distribution uniformity of
temperature and humidity		 0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H.
 Control Accuracy of
Temperature and Humidity		 ±0.5℃; ±2.5% R.H.
 Temperature Rising/Falling
Speed Rate		 Temperature rising approx.  0.1~3.0℃/min / temperature falling approx.  0.1~1.5℃/min; ( The Falling Speed Rate Min.1.5℃per minute is a special optional condition)

Temperature humidity
control chart		 Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated, Insulation material is resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Material Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated, Insulation material is resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
 Cooling System Wind cooling or water cooling/single segment compressor(-40℃, double segment compressor -70℃)
 Protection Devices Fuse-free switch, overloading protection switch  for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
 Optional Accessories   Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
 Compressor French Tecumseh Brand,Germany Bizer Brand
 Power AC220V  1ph 3 lines, 50/60HZ ,  AC380V   3ph  5 lines , 50/60HZ
 Approx. Weight (Kg) 150 180 250 320 400 450
